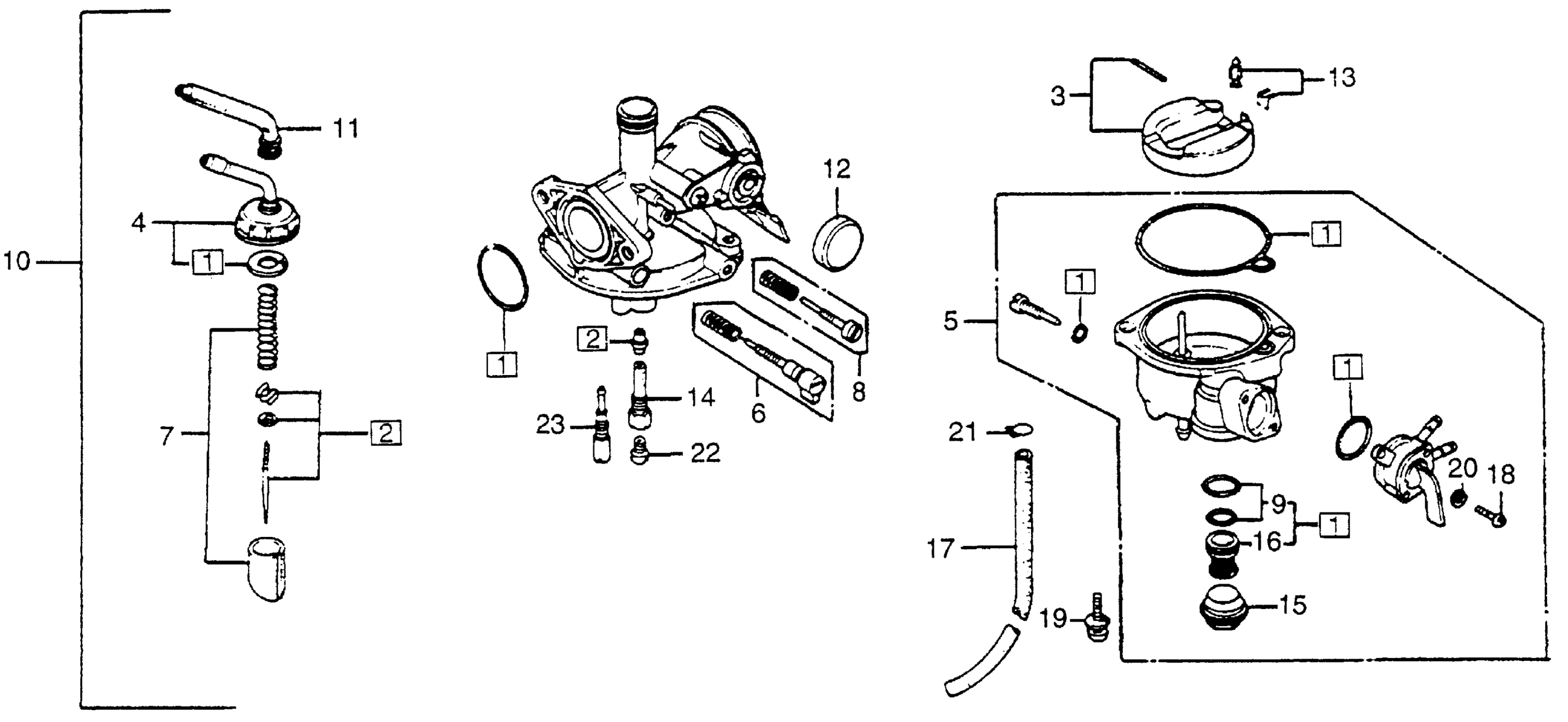

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 CARBURETOR 82 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-GB4-003.

16010-141-305

$44.57

1

GASKET SET This part replaces 16010-GB4-013.

16010-141-305

$44.57

1

GASKET SET

16010-141-305

$44.57

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-126-671

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

TOP SET This part replaces 16014-GB0-831.

16014-098-980

Unavailable

4

TOP SET This part replaces 16014-GB2-003.

16014-098-980

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-459-751

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-459-751

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-098-770

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

9

GASKET B SET

16040-GB0-911

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-126-751

Unavailable

11

CAP, CABLE SEALING

16118-GB4-003

$13.07

12

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

12

CAP, CHOKE LEVER DUST This part replaces 16148-943-003.

16148-141-881

$4.75

13

VALVE, FLOAT

16155-883-005

$20.11

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-098-770

Unavailable

15

CUP, FUEL STRAINER

16175-GB0-911

$22.85

16

CUP, FILTER

16176-GB0-911

$18.37

17

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$9.49

18

SCREW, PAN (3X12)

93500-03012-0H

$1.49

19

SCREW-WASHER (4X14)

93892-04014-08

$1.49

20

WASHER, SPRING (3MM)

94111-03000

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, MAIN (#52) | (Optional).

99101-116-0520

$6.67

22

JET, MAIN (#55)

99101-116-0550

Unavailable

23

JET, SLOW (#38) This part replaces 99103-126-0380.

99103-141-0380

$20.44
