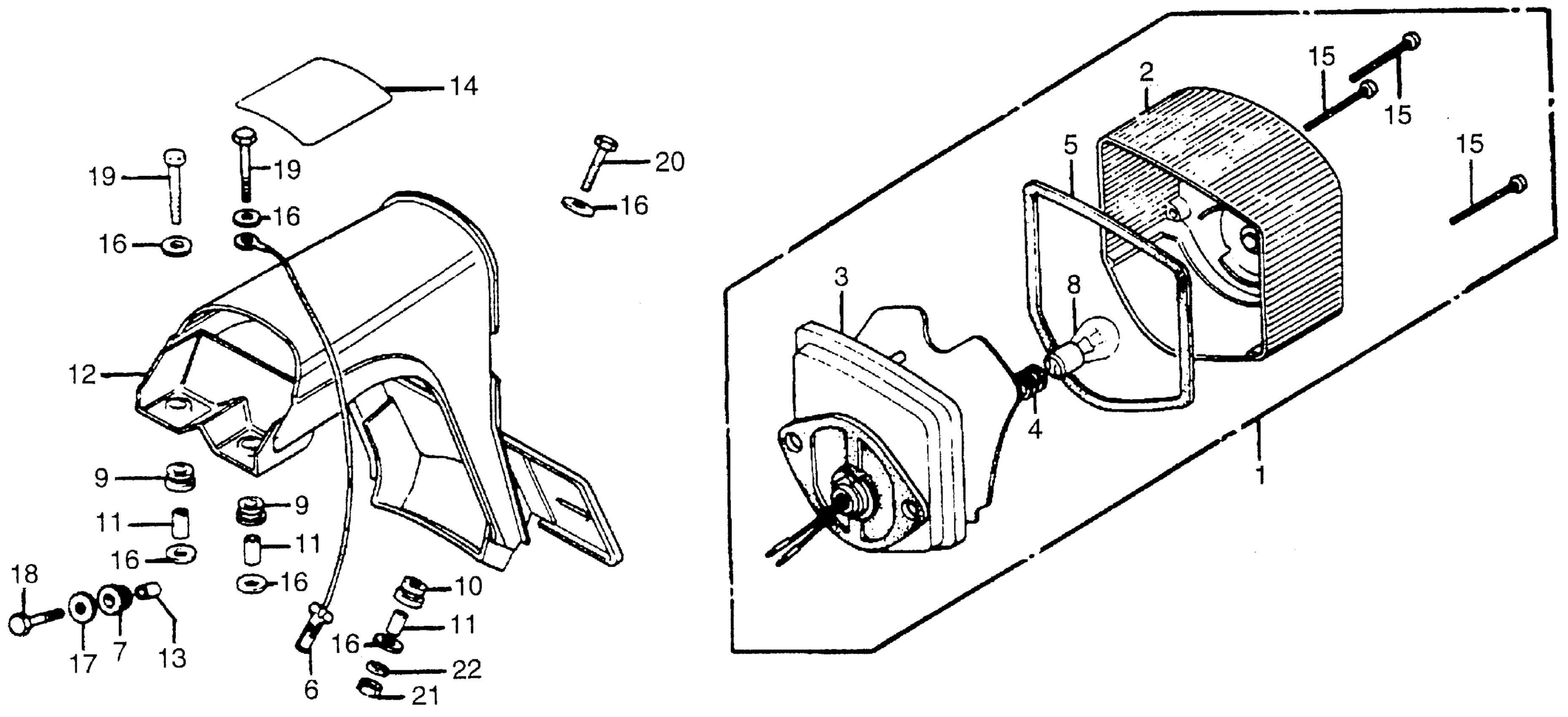

Honda CT70A (80) TRAIL 70, JPN, VIN# CT70-5100007 TO CT70-5108606 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-126-721

Unavailable

2

LENS, TAILLIGHT

33702-329-671

Unavailable

3

SOCKET, TAILLIGHT

33703-126-721

Unavailable

4

CABLE, TAILLIGHT

33708-147-003

Unavailable

4

CABLE, TAILLIGHT This part replaces 33708-371-601.

33708-147-003

Unavailable

5

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

6

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE)

33712-098-970

Unavailable

7

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

8

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

9

RUBBER, RR. TURN SIGNAL (NOT AVAILABLE)

80105-053-650

Unavailable

10

RUBBER, LICENSE BRACKET CUSHION (NOT AVAILABLE)

80105-098-970

Unavailable

11

COLLAR, LICENSE PLATE BRACKET (NOT AVAILABLE)

80108-098-970

Unavailable

12

BRACKET, LICENSE PLATE (NOT AVAILABLE)

84701-098-951

Unavailable

13

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$3.01

14

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87508-126-770

Unavailable

15

SCREW, TAPPING (4X60)

90147-147-671

$2.70

16

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

17

WASHER (20MM) This part replaces 90581-098-950.

90581-310-000

$1.90

17

WASHER (20MM)

90581-310-000

$1.90

18

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

19

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

19

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

19

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49
