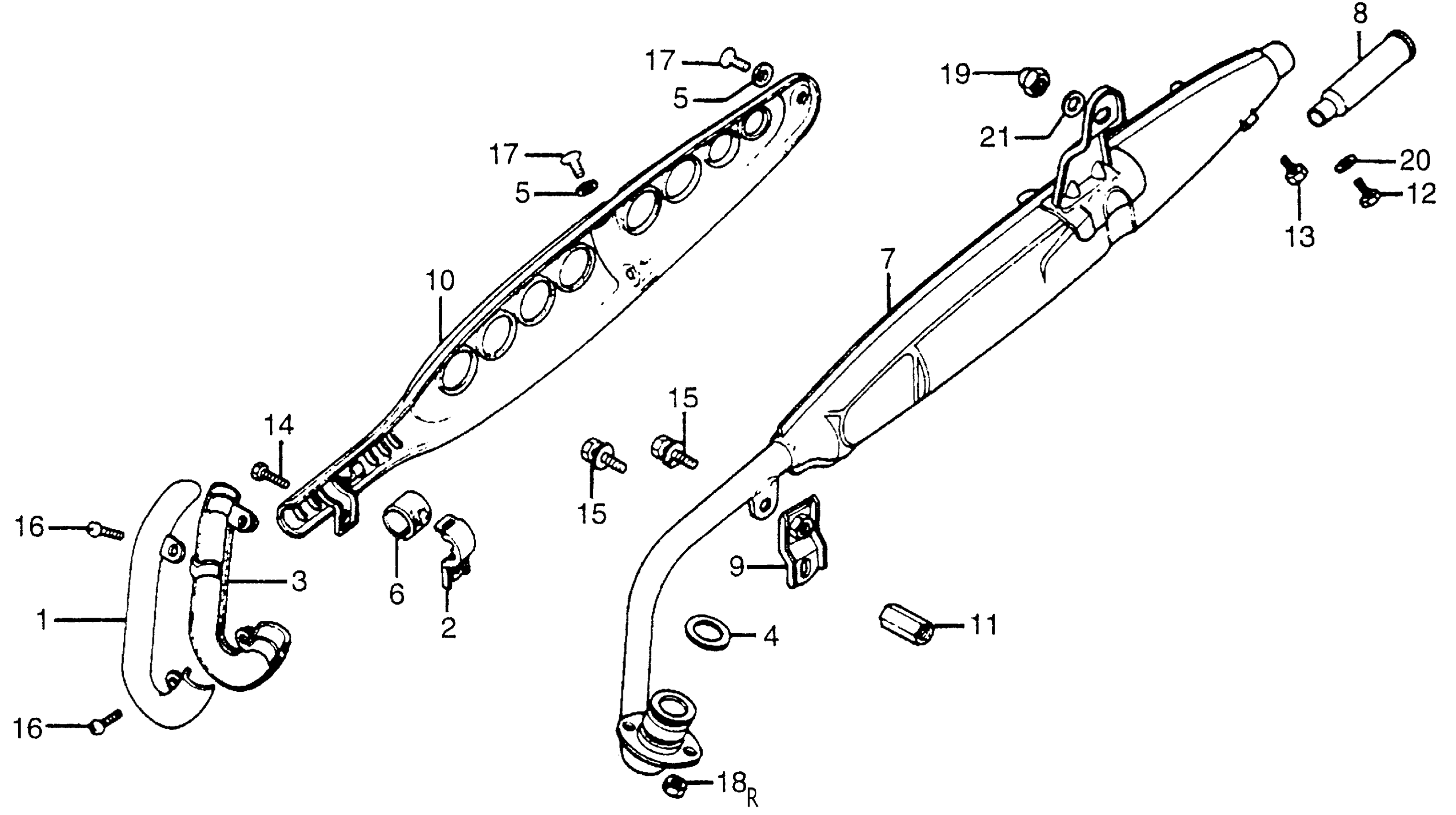

Honda CT70A (80) TRAIL 70, JPN, VIN# CT70-5100007 TO CT70-5108606 MUFFLER Diagram

#

Description
Price

1

COVER, EX. PIPE (NOT AVAILABLE)

18271-126-770

Unavailable

2

BAND, PROTECTOR SETTING

18281-011-000

$6.17

3

COVER B, EX. PIPE

18281-126-770

Unavailable

4

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

5

GASKET, PROTECTOR

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.88

6

GASKET B, PROTECTOR

18293-GAN-670

$11.30

6

GASKET B, PROTECTOR This part replaces 18293-076-000.

18293-GAN-670

$11.30

7

MUFFLER COMP This part replaces 18300-126-770.

18350-126-P00

Unavailable

7

MUFFLER COMP This part replaces 18300-126-777.

18350-126-P00

Unavailable

8

PIPE, EX. DIFFUSER

18311-077-020

$26.81

9

STAY, FR. MUFFLER

18321-098-671

$6.28

10

PROTECTOR, MUFFLER This part replaces 18360-126-720.

18360-126-721

Unavailable

10

PROTECTOR, MUFFLER

18360-126-721

Unavailable

11

NUT, FR. MUFFLER STAY

90305-098-670

Unavailable

12

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

12

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

13

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

13

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

13

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

15

BOLT-WASHER (8X16)

93412-08016-00

Unavailable

15

BOLT-WASHER (8X16) This part replaces 93492-08016-00.

93412-08016-00

Unavailable

16

SCREW, PAN (5X12)

93500-05012-0A

$1.49

17

SCREW, OVAL (6X10)

93700-06010-4J

$1.91

17

SCREW, OVAL (6X10) This part replaces 93700-06010-49.

93700-06010-4J

$1.91

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

NUT, CAP (10MM)

94021-10020-0S

$2.08

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (10MM)

94102-10000

$1.49
