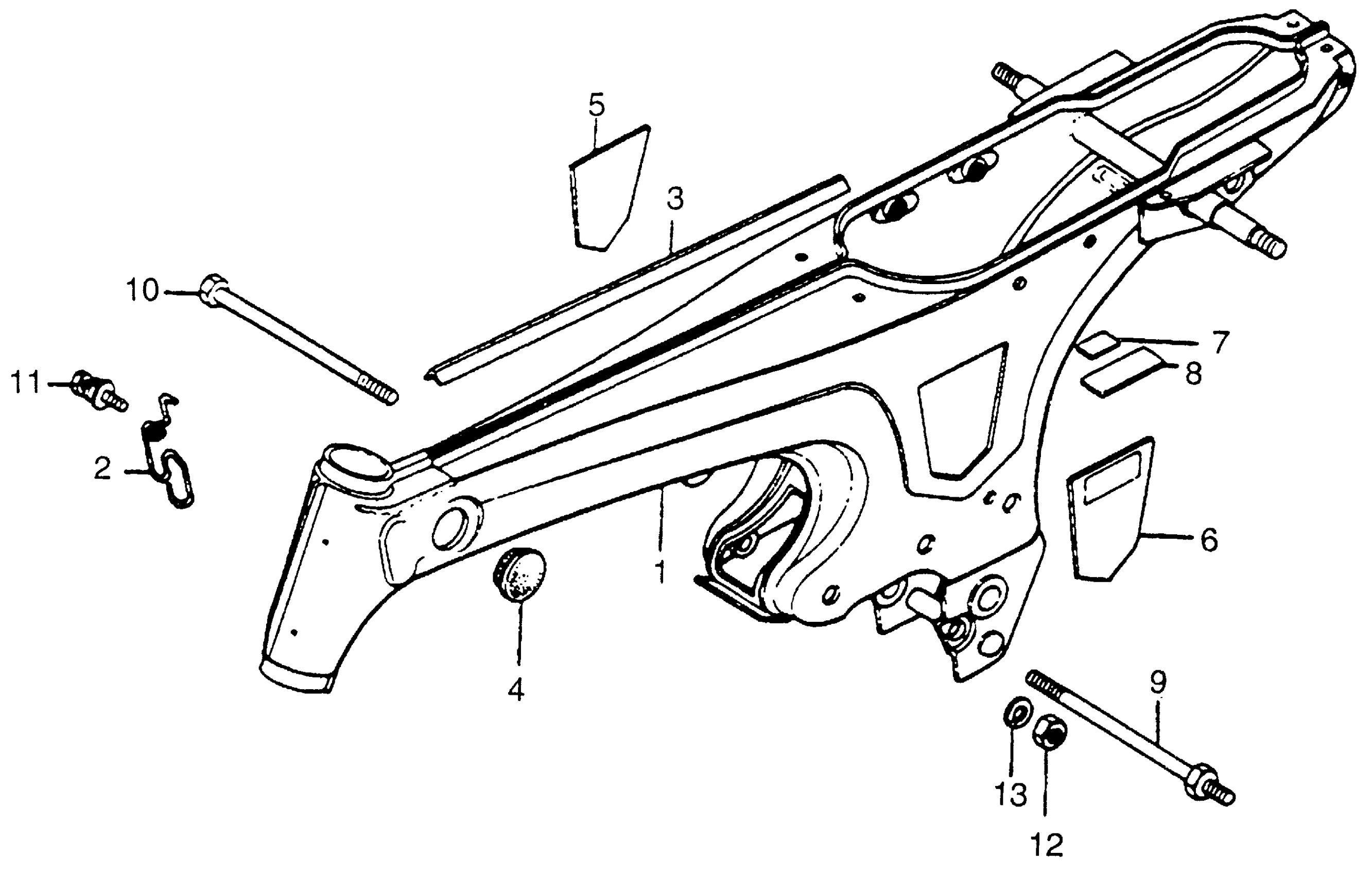

Honda CT70A (80) TRAIL 70, JPN, VIN# CT70-5100007 TO CT70-5108606 FRAME Diagram

FRAME *R23* (TAHITIAN RED) (NOT AVAILABLE)

50100-126-770ZA

Unavailable

CLIP, WIRE HARNESS (NOT AVAILABLE)

50191-125-770

Unavailable

MOLDING, FRAME (NOT AVAILABLE)

50305-098-860

Unavailable

GROMMET, DRAIN HOLE This part replaces 81329-567-000.

81329-567-020

$4.28

GROMMET, DRAIN HOLE

81329-567-020

$4.28

EMBLEM, R. FRAME SIDE (NOT AVAILABLE)

87122-126-770

Unavailable

EMBLEM, L. FRAME SIDE (NOT AVAILABLE)

87123-126-770

Unavailable

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

BOLT A, RR. ENGINE SUPPORT

90112-003-000

$8.18

BOLT, HEX. (8X115) (NOT AVAILABLE)

92200-08115-0A

Unavailable

SCREW-WASHER (6X16) (NOT AVAILABLE)

93893-06016-00

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
