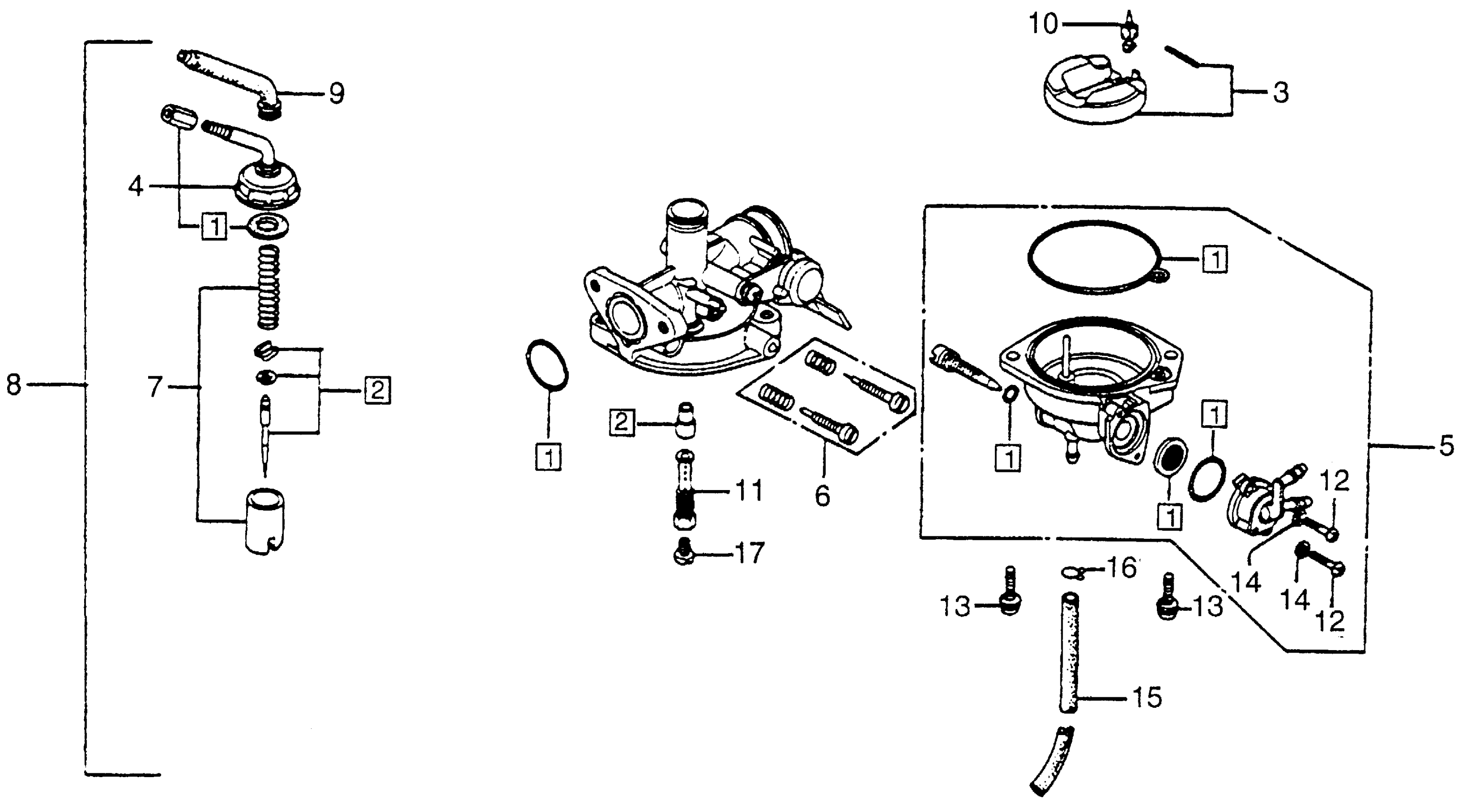

Honda CT70A (80) TRAIL 70, JPN, VIN# CT70-5100007 TO CT70-5108606 CARBURETOR 80-81 Diagram

GASKET SET This part replaces 16010-086-701.

16010-957-305

$30.20

GASKET SET

16010-957-305

$30.20

NEEDLE SET, JET (NOT AVAILABLE)

16012-126-671

Unavailable

FLOAT SET

16013-883-005

$29.08

TOP SET This part replaces 16014-086-700.

16014-086-305

Unavailable

TOP SET This part replaces 16014-141-841.

16014-086-305

Unavailable

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-126-671

Unavailable

SCREW SET (NOT AVAILABLE)

16016-126-671

Unavailable

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-098-770

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

16100-126-672

Unavailable

CAP, CABLE SEALING

16118-121-014

Unavailable

VALVE, FLOAT

16155-883-005

$20.11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-098-770

Unavailable

SCREW, PAN (3X12)

93500-03012-0H

$1.49

SCREW-WASHER (4X14)

93892-04014-08

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80

JET SET, MAIN (HA-TYPE) (NOT AVAILABLE) | (Optional).

16110-126-305

Unavailable

JET, MAIN (#55)

99101-116-0550

Unavailable
