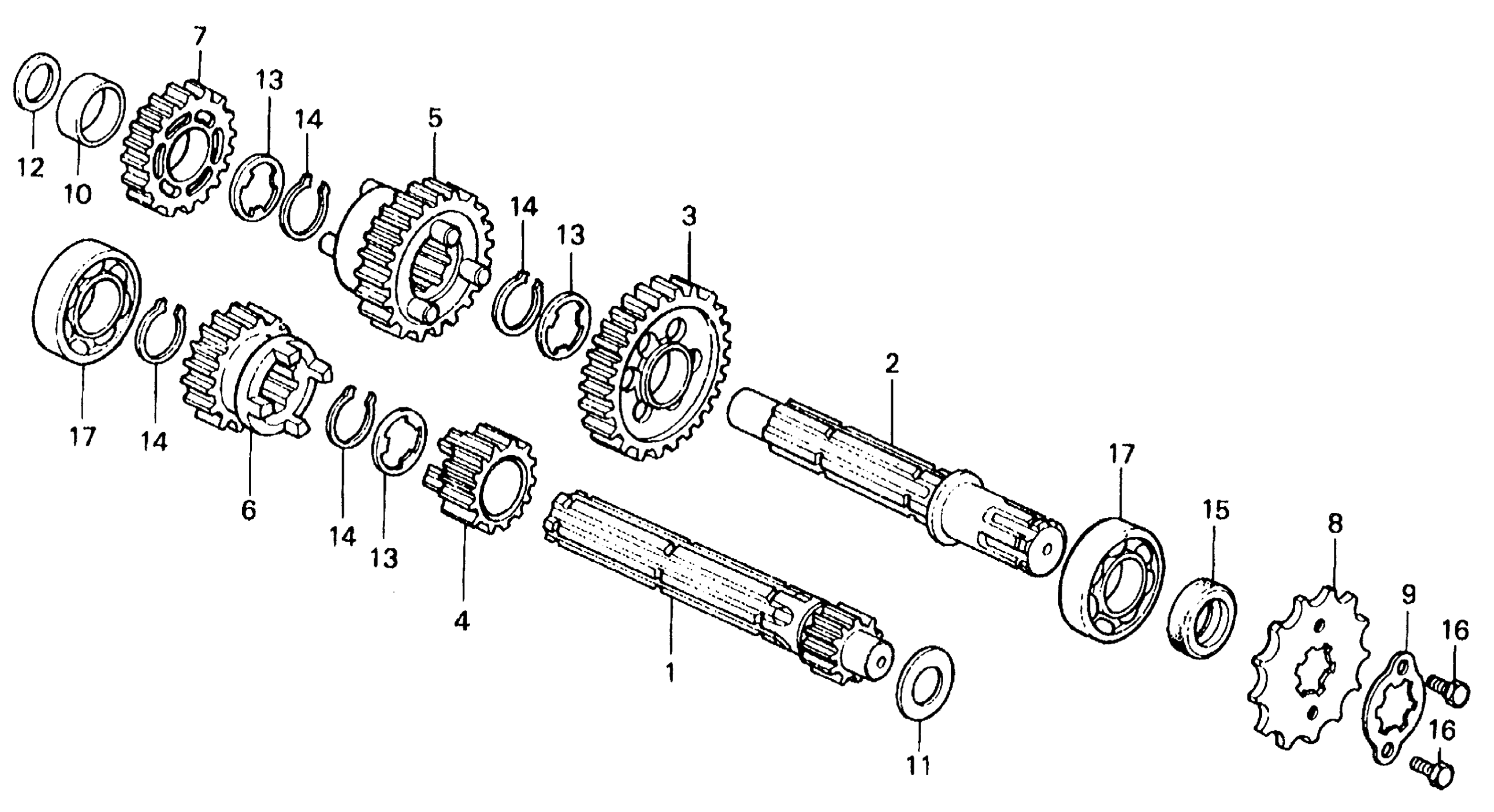

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE) This part replaces 23421-086-000.

23421-086-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-086-010

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23431-040-060

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-086-000.

23441-086-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T)

23441-086-010

Unavailable

6

GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)

23471-041-040

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-086-000.

23481-086-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

8

SPROCKET, DRIVE (15T)

23800-098-000

$19.05

9

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

10

COLLAR, GEAR This part replaces 23911-041-010.

23911-041-020

Unavailable

10

COLLAR, GEAR

23911-041-020

Unavailable

11

WASHER, THRUST (14MM)

90451-121-000

$1.87

12

WASHER, THRUST (13.5MM)

90451-141-000

$12.84

13

WASHER, SPLINE (17MM)

90461-035-000

$2.57

14

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

15

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

15

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

16

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

17

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

17

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
