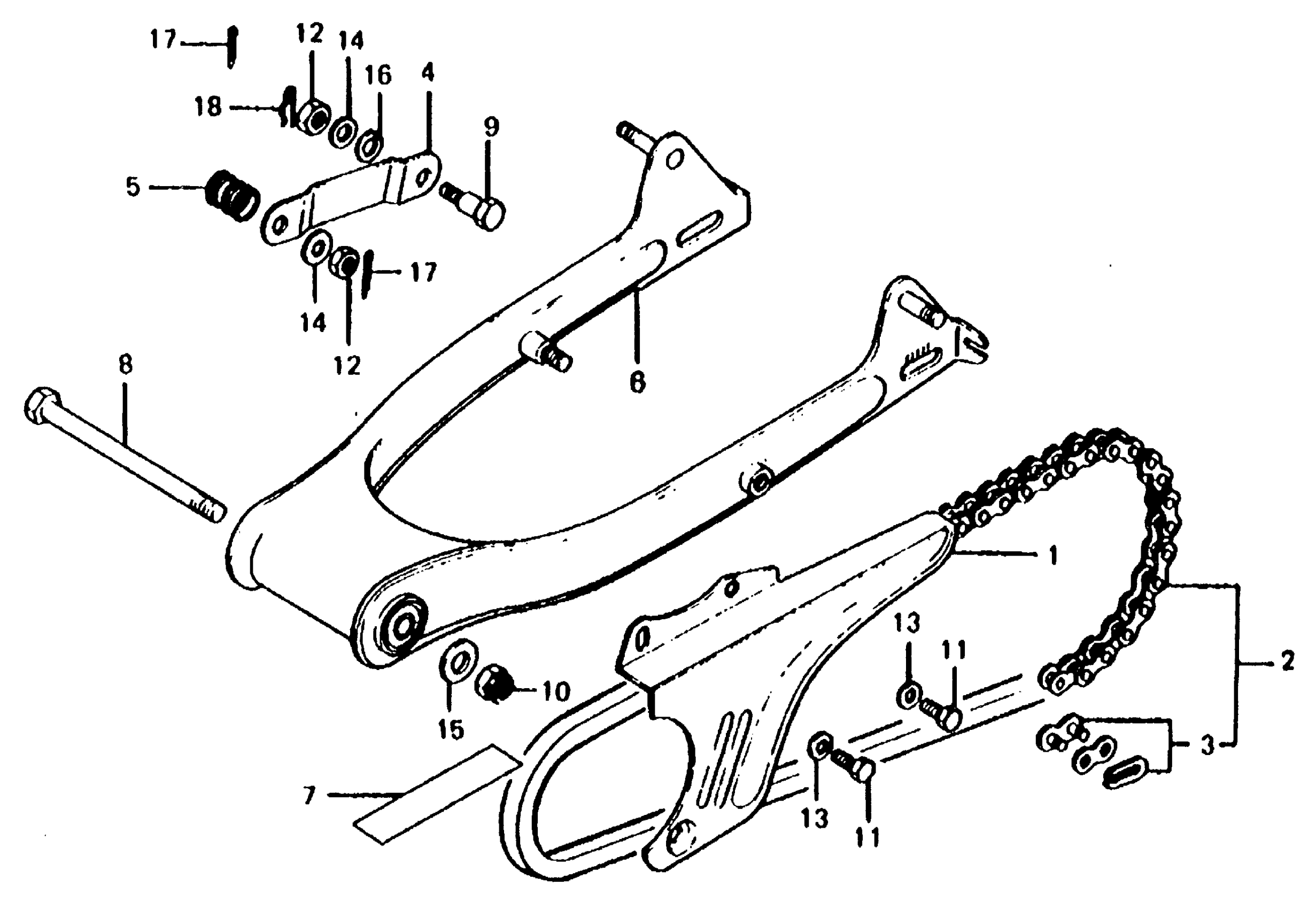

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK)

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000EC.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000ZA.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000LS.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000QE.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000ZD.

40510-098-000ZC

Unavailable

2

CHAIN, DRIVE

405W3-GB2-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GB3-722.

405W3-GB2-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-098-971.

405W3-GB2-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-098-972.

405W3-GB2-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-098-973.

405W3-GB2-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-098-974.

405W3-GB2-505

Unavailable

3

MASTER LINK (DAIDO) This part replaces 40531-035-005.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

3

MASTER LINK (DAIDO)

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-098-005.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

4

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

5

SPRING, STOPPER ARM

43434-250-000

$2.00

6

SWINGARM ASSY., RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

52000-098-830ZD

Unavailable

6

SWINGARM ASSY., RR. *Y5* (BRIGHT YELLOW) (NOT AVAILABLE)

52000-098-830ZE

Unavailable

7

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-098-660

Unavailable

8

BOLT, SWINGARM PIVOT

90121-098-970

Unavailable

9

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

10

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

11

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

11

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

12

NUT, HEX. (8MM)

94001-08000-0S

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49

14

WASHER, PLAIN (8MM)

94101-08000

$1.49

15

WASHER, PLAIN (10MM)

94101-10000

$1.49

16

WASHER, SPRING (8MM)

94111-10000

$1.49

17

PIN, COTTER (2.0X15)

94201-20150

$1.49
