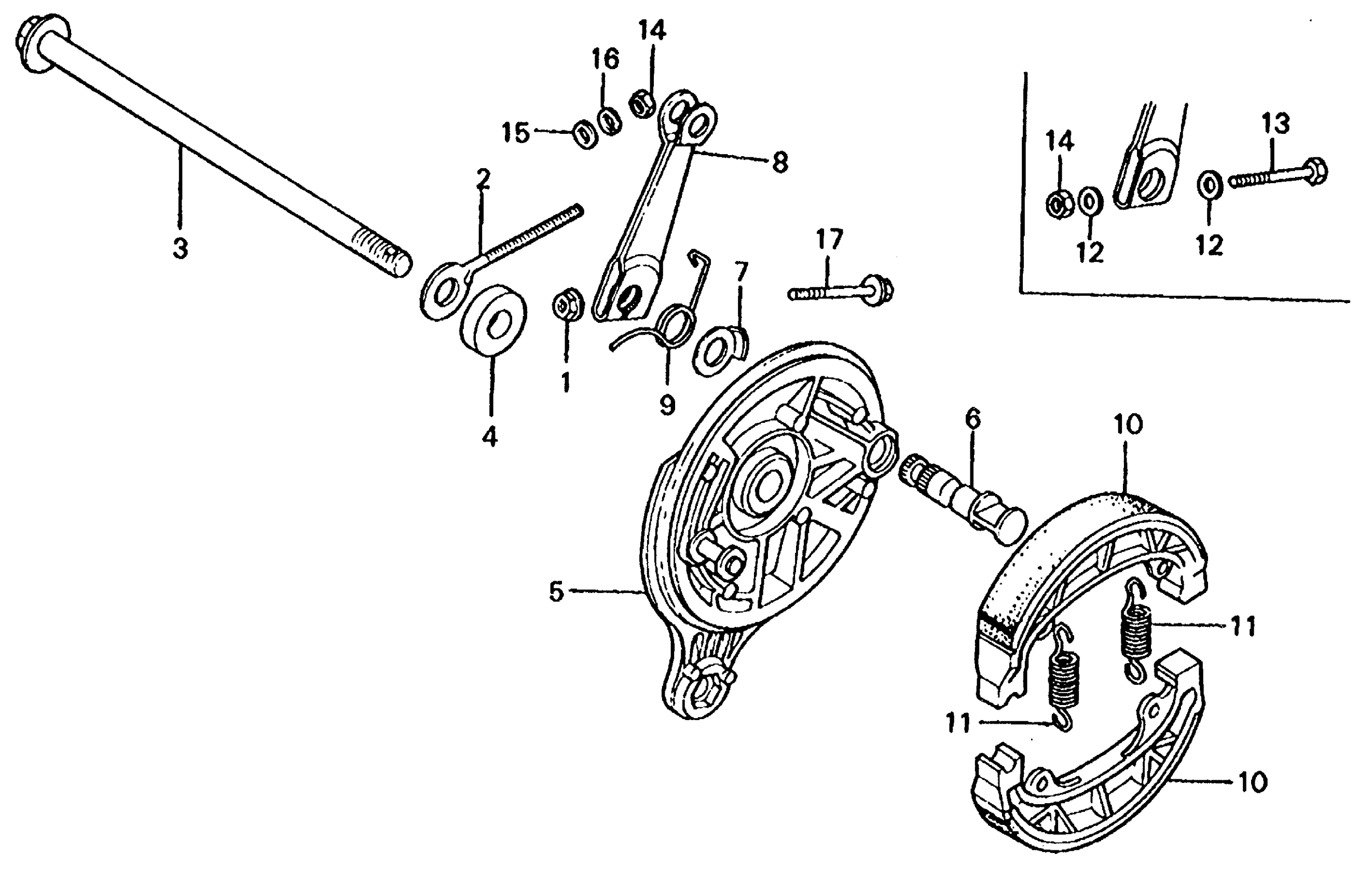

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

ADJUSTER S, R. CHAIN

95014-10010

$4.53

3

AXLE, FR. WHEEL This part replaces 44301-110-000.

44301-KF9-900

Unavailable

4

COLLAR, RR. BRAKE PANEL SIDE

42313-098-000

$6.39

5

PANEL, RR. BRAKE *NH35M* (CLOUD SILVER METALLIC) This part replaces 43100-126-720.

43100-126-721ZA

Unavailable

5

PANEL, RR. BRAKE *NH35M* (CLOUD SILVER METALLIC) This part replaces 43100-126-720ZA.

43100-126-721ZA

Unavailable

5

PANEL, RR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

43100-126-721ZA

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5006625 This part replaces 45131-400-000.

45131-400-020

Unavailable

6

CAM, FR. BRAKE This part replaces 45131-400-010.

45131-400-020

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5006625 This part replaces 45131-400-010.

45131-400-020

Unavailable

6

CAM, FR. BRAKE

45131-400-020

Unavailable

6

CAM, FR. BRAKE | Use up to Frame SN 5006625

45131-400-020

Unavailable

7

INDICATOR, RR. BRAKE

43145-098-860

Unavailable

8

ARM, RR. BRAKE

43410-130-650

Unavailable

10

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

10

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

10

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

10

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

11

SPRING, BRAKE SHOE

45133-028-000

$2.03

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

17

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
