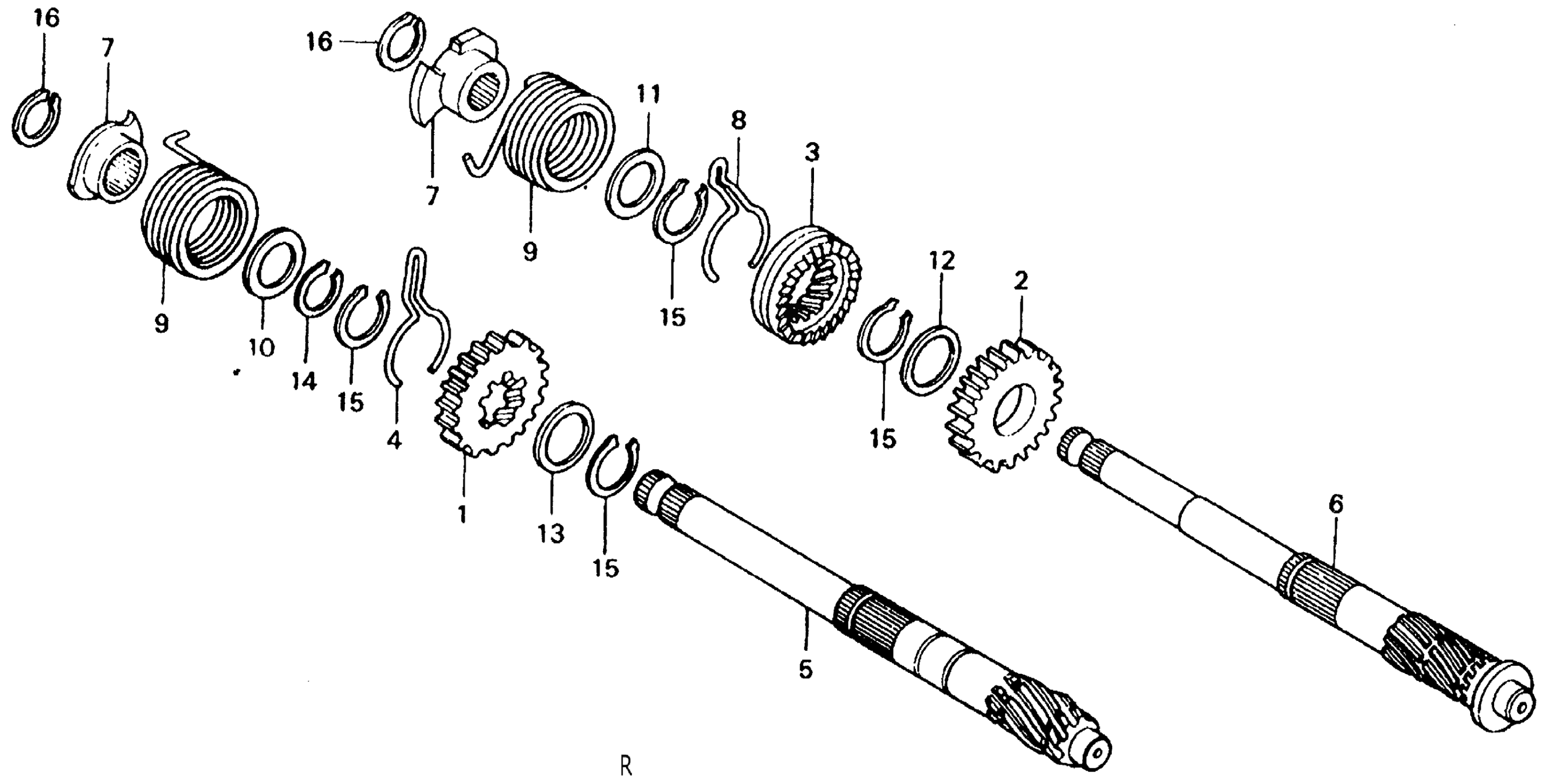

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 KICK STARTER SPINDLE Diagram

#

Description

Price

2

PINION, KICK STARTER (21T)

28211-086-700

$63.72

3

RATCHET, STARTER DRIVE

28221-086-700

$47.58

6

SPINDLE, KICK STARTER

28251-086-701

$79.57

7

RETAINER, KICK SPRING This part replaces 28262-035-020.

28262-041-731

$15.28

7

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$15.28

7

RETAINER, KICK SPRING

28262-041-731

$15.28

8

SPRING, STARTER PINION FRICTION

28271-121-690

$2.88

9

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$7.62

9

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$7.62

11

WASHER (17MM)

90452-115-000

$2.00

12

WASHER, THRUST (20MM)

90454-107-000

$1.59

15

SET-RING (20MM)

90605-200-000

$2.67

16

CIRCLIP (OUTER) (16MM)

94510-16000

$0.71
