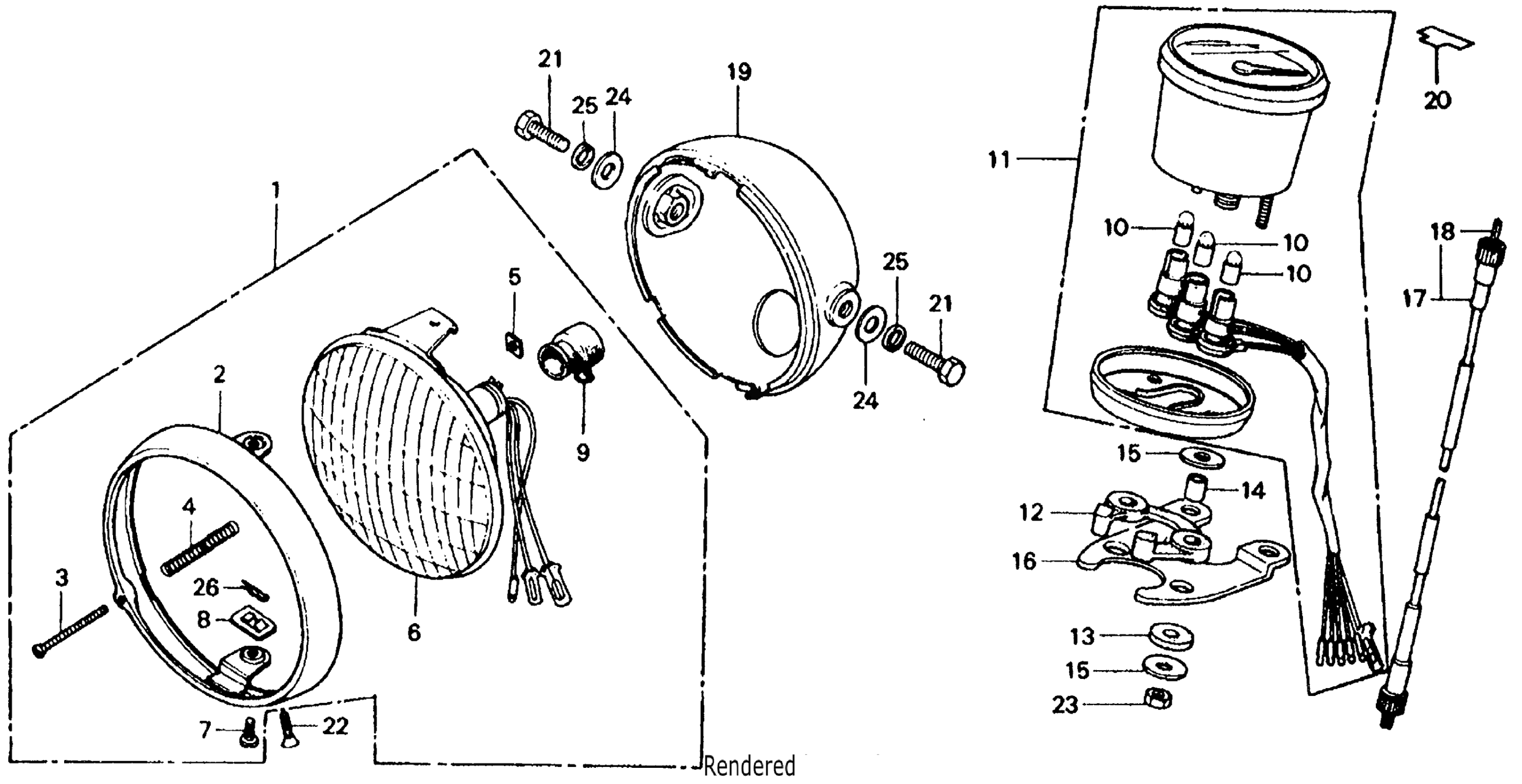

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

5

NUT, BEAM ADJ.

33117-041-003

$1.95

6

HEADLIGHT UNIT

33120-111-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, RUBBER

33130-111-671

Unavailable

10

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

11

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE) This part replaces 37200-126-721.

37200-098-831

Unavailable

12

RUBBER, METER CUSHION (NOT AVAILABLE)

37310-098-970

$3.62

13

RUBBER B, SPEEDOMETER CUSHION (NOT AVAILABLE)

37311-061-810

Unavailable

14

COLLAR, SPEEDOMETER RUBBER (NOT AVAILABLE)

37312-061-810

Unavailable

15

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

16

STAY, SPEEDOMETER *NH1* (BLACK)

37315-126-930B

Unavailable

17

CABLE ASSY., SPEEDOMETER

44830-126-930

Unavailable

18

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-126-930

Unavailable

19

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-111-670B

Unavailable

20

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

21

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

21

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

22

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

PIN, LOCK (5MM)

94251-05000

$1.49
