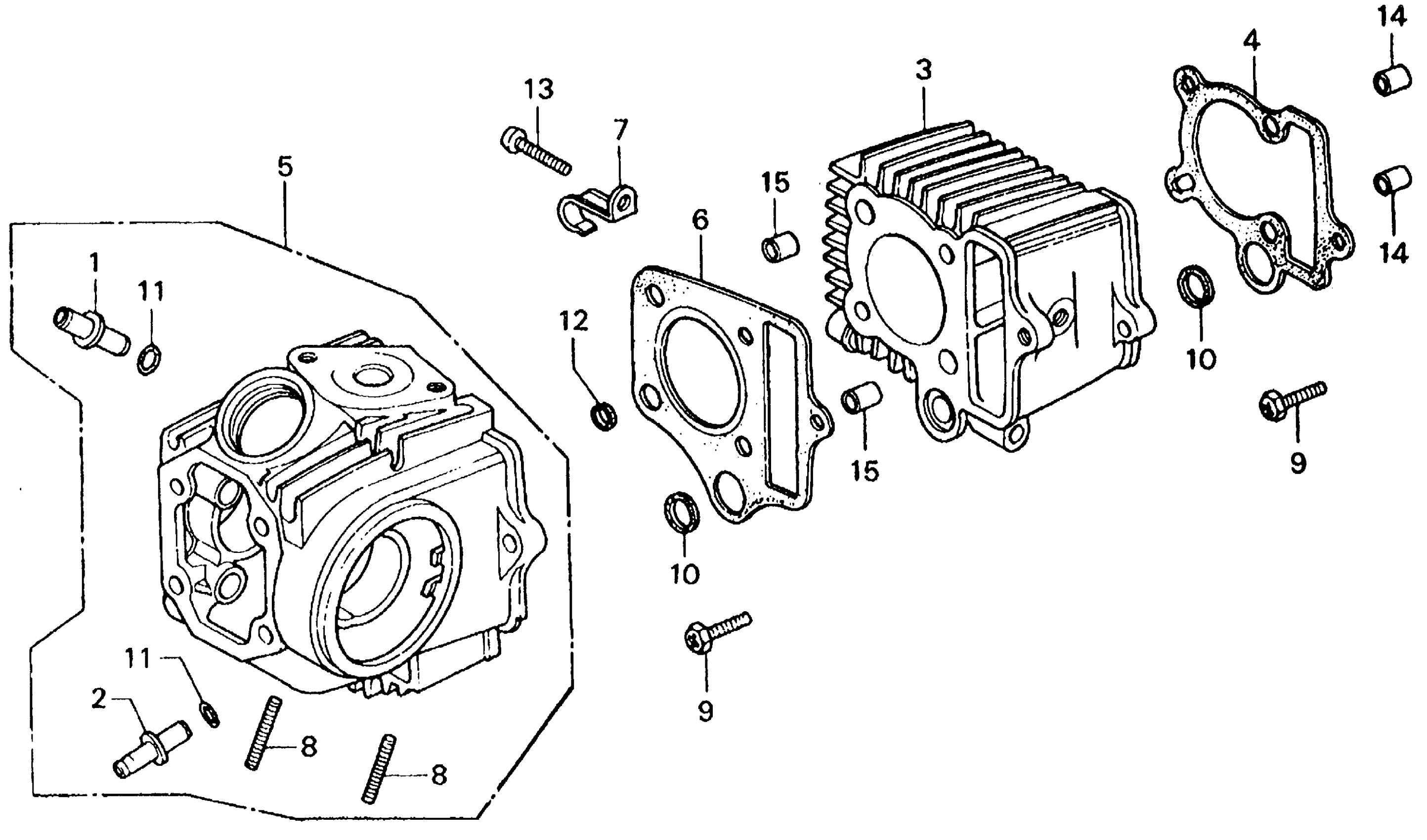

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-035-811.

12023-035-405

Unavailable

1

GUIDE, VALVE

12023-035-405

Unavailable

2

GUIDE, EX. VALVE

12023-051-320

Unavailable

3

CYLINDER

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-087-010.

12101-GB0-910

$212.90

3

CYLINDER This part replaces 12101-098-671.

12101-GB0-910

$212.90

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

5

CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 5005725 This part replaces 12200-087-710.

12200-087-315

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-087-315

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-087-711.

12200-087-315

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-087-712.

12200-087-315

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-087-000.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

7

CLIP, IGNITION CABLE

32906-061-000

$4.79

8

BOLT, STUD (6X32) | Use up to Engine SN 5005725 This part replaces 90033-041-000.

90033-041-020

$2.25

8

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32) | Use up to Engine SN 5005725 This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32)

90033-041-020

$2.25

8

BOLT, STUD (6X32) | Use up to Engine SN 5005725

90033-041-020

$2.25

9

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

9

BOLT (6MM)

90082-035-010

$2.39

10

GASKET, RUBBER (16MM)

91303-035-000

$4.87

11

O-RING (9.5X1.6)

91306-028-000

$2.92

12

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

12

GASKET, RUBBER (9MM)

91306-141-000

$4.65

13

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

13

SCREW, PAN (6X20)

93500-06020-0A

$1.49

14

PIN A, DOWEL (8X12)

94301-08120

$2.19

15

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25
