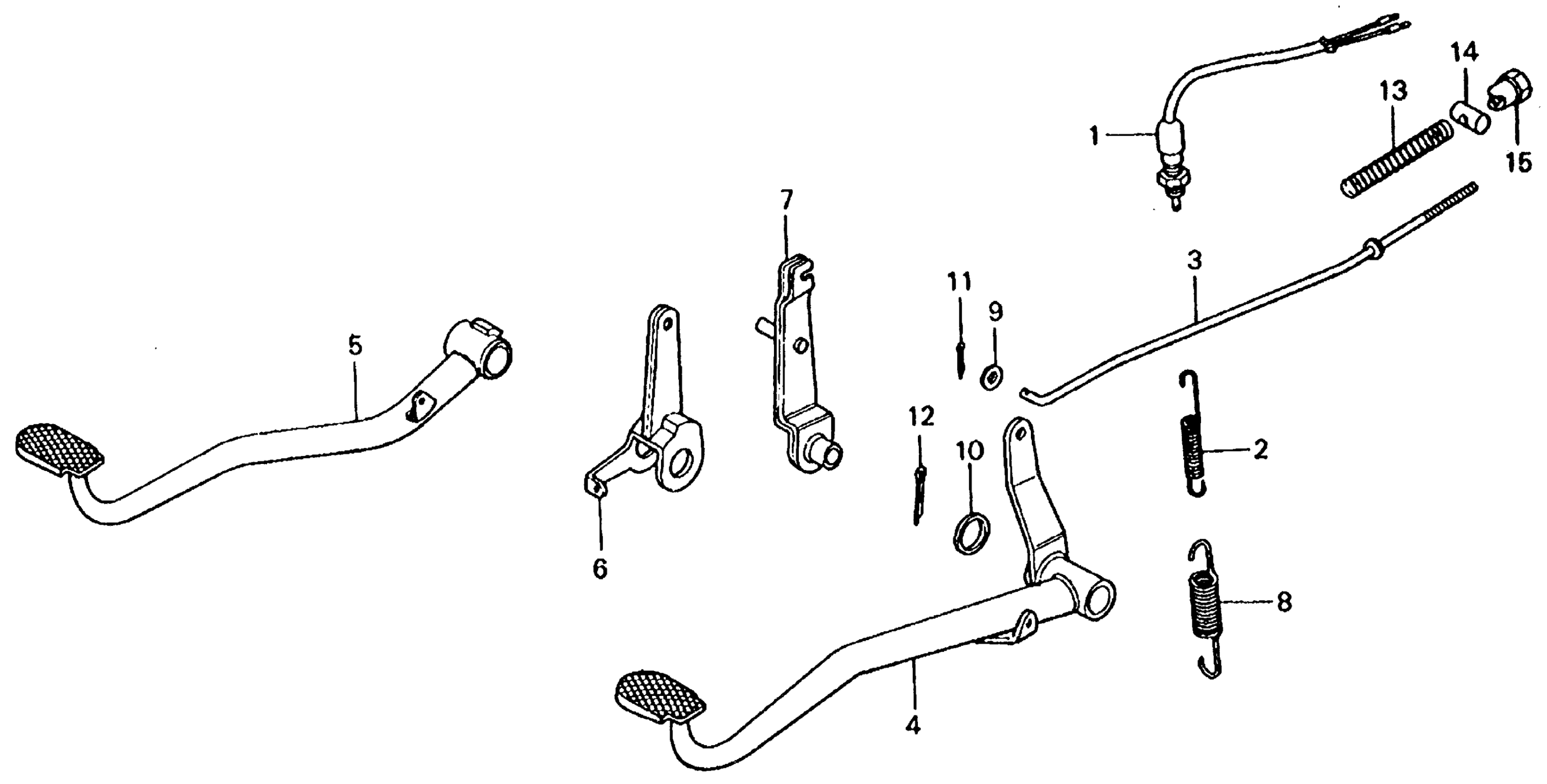

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 BRAKE PEDAL Diagram

SWITCH ASSY., RR. STOP

35350-MA1-405

$19.28

SWITCH ASSY., RR. STOP This part replaces 35350-126-920.

35350-MA1-405

$19.28

SPRING, STOP SWITCH

35357-046-000

$2.16

ROD, RR. BRAKE

43451-098-770

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46500-126-920

Unavailable

SPRING, BRAKE PEDAL

46514-086-720

$6.87

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (14MM)

94101-14000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
