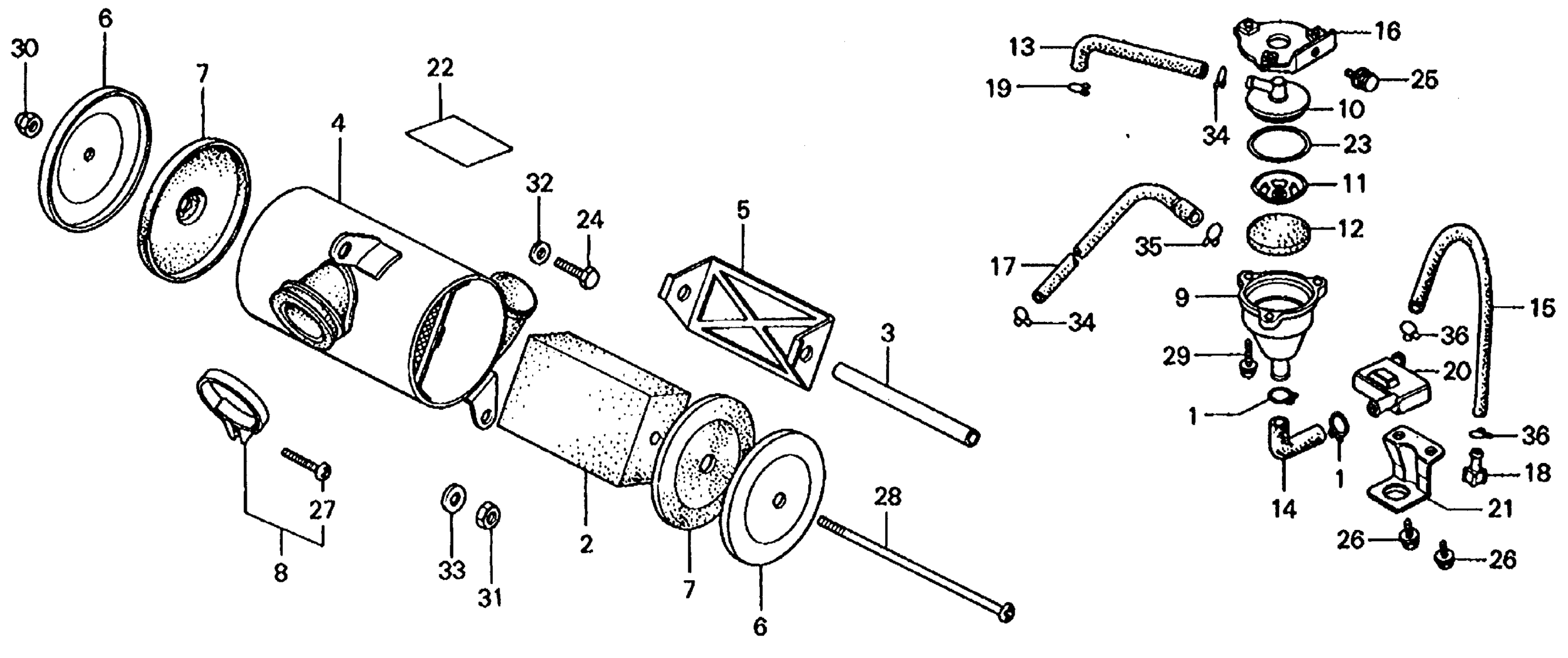

Honda CT70A (79) TRAIL 70, JPN, VIN# CT70-5000021 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

ELEMENT, AIR CLEANER

17211-098-771

$6.17

3

PIPE, AIR CLEANER (INNER)

17212-098-000

$5.37

4

HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

17221-098-850ZA

Unavailable

5

PLATE, AIR CLEANER ELEMENT MOUNT

17222-098-771

$7.08

6

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC) This part replaces 17231-098-950.

17231-098-950ZA

Unavailable

6

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC) This part replaces 17231-098-950B.

17231-098-950ZA

Unavailable

6

COVER, AIR CLEANER HOUSING *NH35M* (CLOUD SILVER METALLIC)

17231-098-950ZA

Unavailable

7

GASKET, AIR CLEANER HOUSING

17252-098-771

$11.62

8

BAND B, AIR CLEANER CONNECTING

17256-053-010

Unavailable

9

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

10

CAP, BREATHER SEPARATOR

17362-098-850

Unavailable

11

HOLDER, ELEMENT

17363-419-670

Unavailable

12

ELEMENT, CONDENSATION

17364-419-000

Unavailable

13

TUBE (5.3X200) (NOT AVAILABLE)

17365-098-850

Unavailable

14

TUBE A, DRAIN (NOT AVAILABLE)

17366-098-850

Unavailable

15

TUBE B, DRAIN

17367-098-850

Unavailable

16

STAY, BREATHER SEPARATOR

17368-098-850

Unavailable

17

TUBE, BREATHER

17369-098-850

Unavailable

18

PLUG, BREATHER TUBE

17370-419-700

$3.74

19

CLIP, DRAIN TUBE

17371-098-850

Unavailable

20

TANK, STORAGE (NOT AVAILABLE)

17551-098-850

Unavailable

21

STAY, STORAGE TANK (NOT AVAILABLE)

50245-098-850

Unavailable

22

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

23

O-RING (47X1.9)

91305-419-670

Unavailable

24

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

24

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

25

BOLT-WASHER (6X12) (NOT AVAILABLE)

93483-06012-00

Unavailable

26

BOLT-WASHER (6X12)

93401-06012-00

$1.55

26

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

27

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW, PAN (6X135) This part replaces 93500-06135-02.

93500-06135-1B

$3.47

28

SCREW, PAN (6X135)

93500-06135-1B

$3.47

29

SCREW-WASHER (4X16)

93891-04016-00

Unavailable

30

NUT, CAP (6MM)

94021-06020

$1.73

31

NUT, HEX. (8MM)

94030-08000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

CLIP, TUBE (B10)

95002-02100

$1.90

35

CLIP, TUBE (B12)

95002-02120

$2.00

36

CLIP, TUBE (C12)

95002-80000

$1.49
