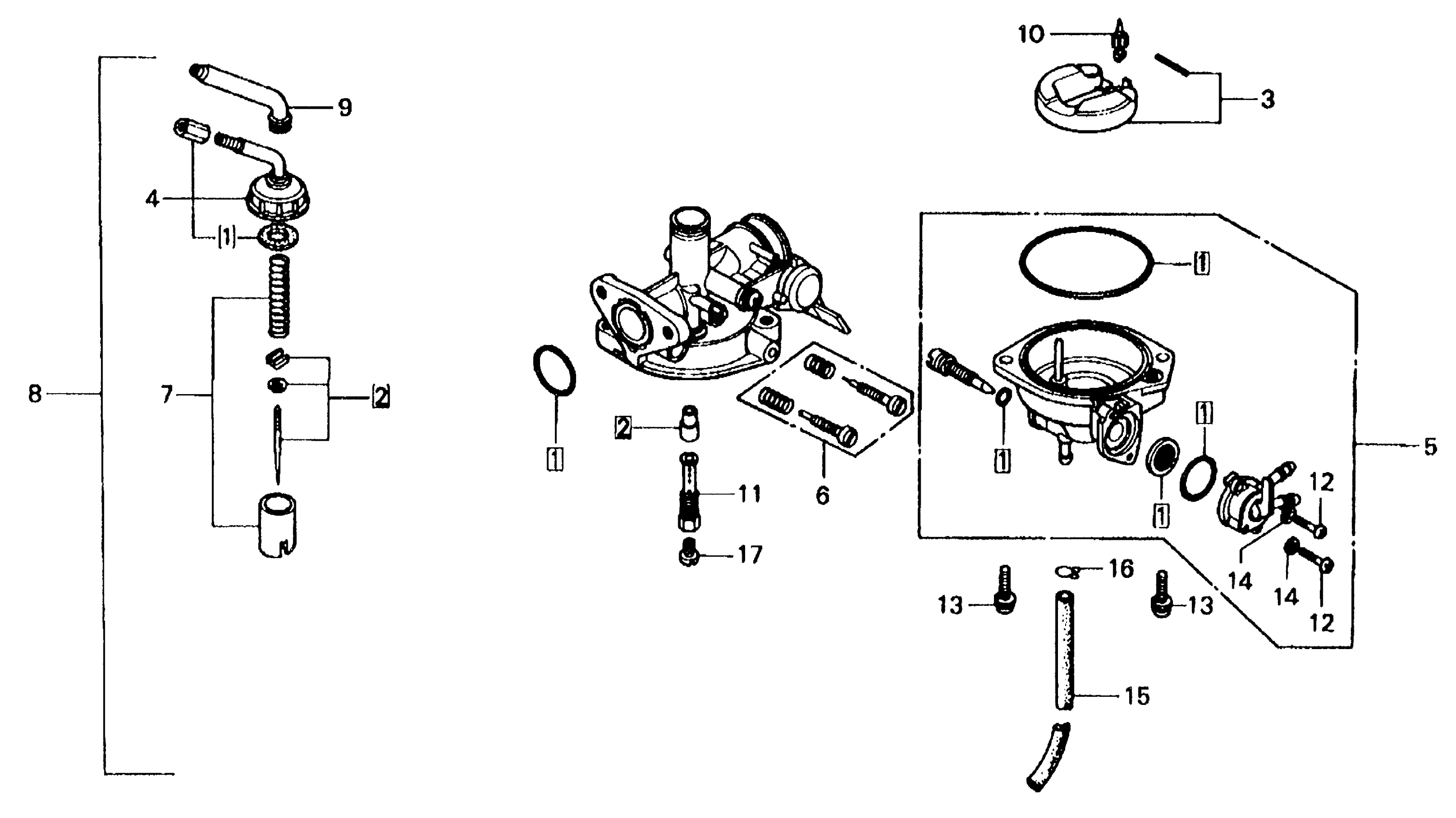

Honda CT70A (78) TRAIL 70, JPN, VIN# CT70-2700005 TO CT70-2706886 CARBURETOR 78-79 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-086-700.

16010-957-305

$30.20

1

GASKET SET This part replaces 16010-086-701.

16010-957-305

$30.20

1

GASKET SET

16010-957-305

$30.20

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-098-770

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

TOP SET This part replaces 16014-086-700.

16014-086-305

Unavailable

4

TOP SET This part replaces 16014-141-841.

16014-086-305

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE) This part replaces 16015-098-770.

16015-098-771

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-098-771

Unavailable

6

SCREW SET

16016-086-700

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-098-770

Unavailable

8

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-098-771.

16100-098-773

Unavailable

8

CARBURETOR ASSY. (NOT AVAILABLE)

16100-098-773

Unavailable

9

CAP, CABLE SEALING

16118-121-014

Unavailable

10

VALVE, FLOAT

16155-883-005

$20.11

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-098-770

Unavailable

12

SCREW, PAN (3X12)

93500-03012-0H

$1.49

13

SCREW-WASHER (4X14)

93892-04014-08

$1.49

14

WASHER, SPRING (3MM)

94111-03800

$1.49

15

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

JET SET, MAIN (HA-TYPE) (NOT AVAILABLE)

16110-098-305

Unavailable

17

JET, MAIN (#55)

99101-116-0550

Unavailable
