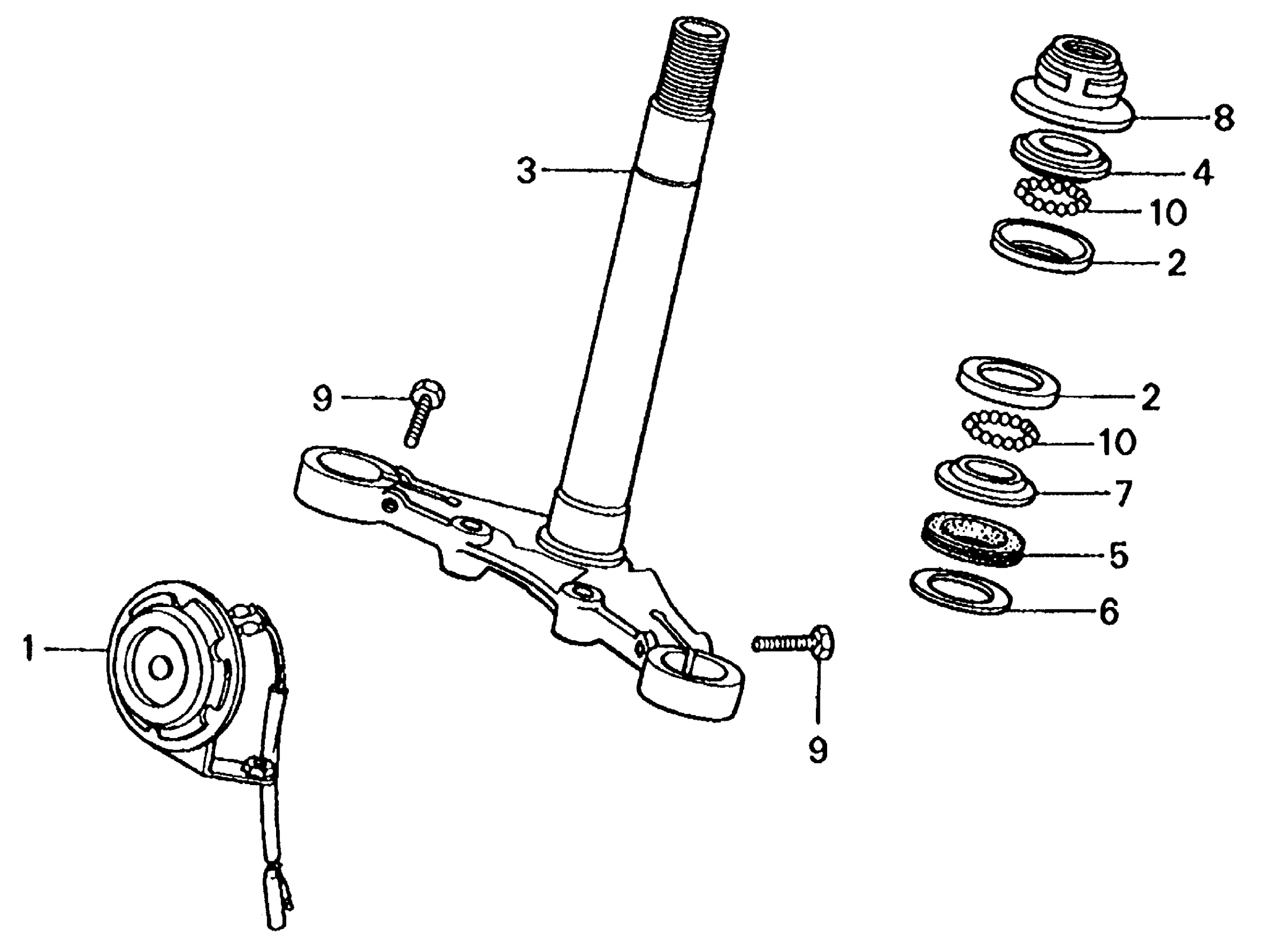

Honda CT70A (76) TRAIL 70, JPN, VIN# CT70-2500004 TO CT70-2505533 STEERING STEM + HORN Diagram

HORN ASSY.

38100-124-721

Unavailable

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

STEM, STEERING *R23* (TAHITIAN RED)

53200-098-970EC

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

BOLT, HEX. (8X28) (SOURCE: VINTAGE PARTS INC.)

95400-08028-00

Unavailable

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
