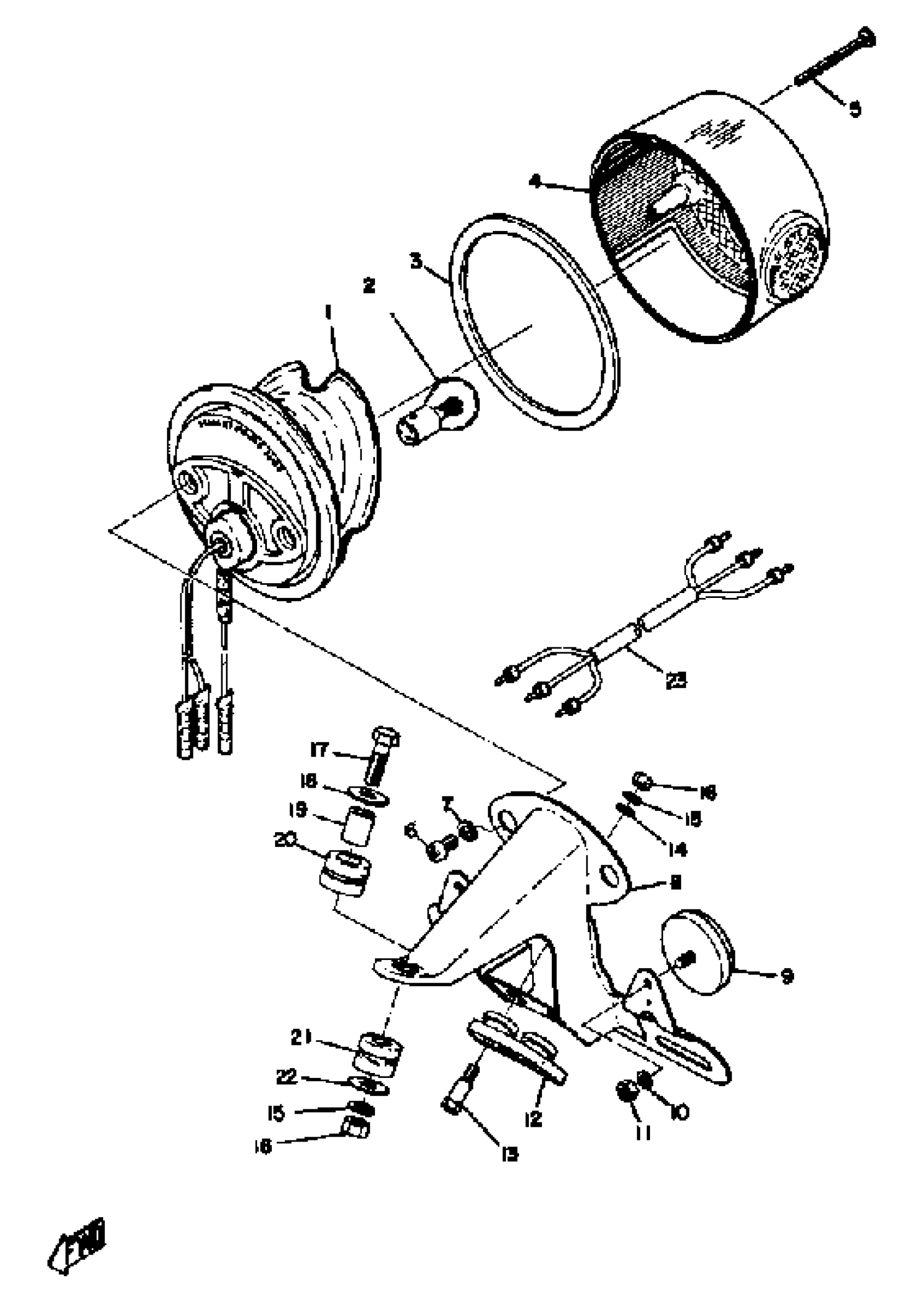

Yamaha CT2 (CT2) BH19219 1972 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

Unavailable

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

Unavailable

1

BASE, TAILLIGHT

(275-84511-61-00)

Unavailable

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. GASKET, LENS

275-84523-60-00

Unavailable

4

LENS, TAILLIGHT

(275-84521-60-00)

Unavailable

5

SCREW, PAN HEAD

98507-04050-00

$3.02

6

SCREW PAN HEAD

98580-06010-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BRACKET, LICENSE

(444-84751-60-20)

Unavailable

9

REFLECTOR, FRONT 1

(278-85111-00-00)

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

DAMPER

214-84553-01-00

$7.99

12

DAMPER

308-84553-00-00

Unavailable

13

BOLT 168217380000

90109-06017-00

Unavailable

13

BOLT 338845520000

90109-06022-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

BOLT(3RV)

97014-06035-00

Unavailable

17

BOLT (682)

97095-06040-00

Unavailable

18

WASHER

90209-06012-00

Unavailable

19

COLLAR (275-84557-00)

90387-07039-00

Unavailable

19

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

20

GROMMET 839774310000

90480-14023-00

Unavailable

20

GROMMET

(90480-14106-00)

Unavailable

21

GROMMET (1E2)

90480-14182-00

Unavailable

22

WASHER, PLATE

90201-06380-00

Unavailable

23

CORD, TAILLIGHT

251-84517-60-00

Unavailable
