Description

Price

1

SINGLE SEAT ASSEMBLY

(314-24710-00-00)

Unavailable

1

COVER, SINGLE SEAT

(444-24711-00-00)

Unavailable

2

CARRIER AT/CT

(444-24810-00-00)

Unavailable

3

NUT, CROWN (650)

95380-10800-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PIN, CLEVIS

91701-05055-00

$7.49

7

CLIP (156-83525-00)

90468-10050-00

$3.05

8

BRACKET, SEAT

(214-24728-00-33)

Unavailable

9

BRACKET, SEAT

214-24718-00-00

Unavailable

10

LEVER, SEAT

214-24776-00-33

Unavailable

11

. SPRING, TORSION

90508-10012-00

Unavailable

12

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

13

BOLT(3JP)

97017-06010-00

$3.76

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

DAMPER, SEAT

214-24724-00-00

Unavailable

15

DAMPER, SEAT

214-24724-00-00

Unavailable

16

HINGE, SEAT

(315-24726-00-00)

Unavailable

17

BRACKET, SEAT

(278-24748-00-00)

Unavailable

18

STOPPER

(276-24768-00-00)

Unavailable

19

BOLT (661)

97013-06012-00

$5.60

20

WASHER, SPRING

92995-06100-00

Unavailable

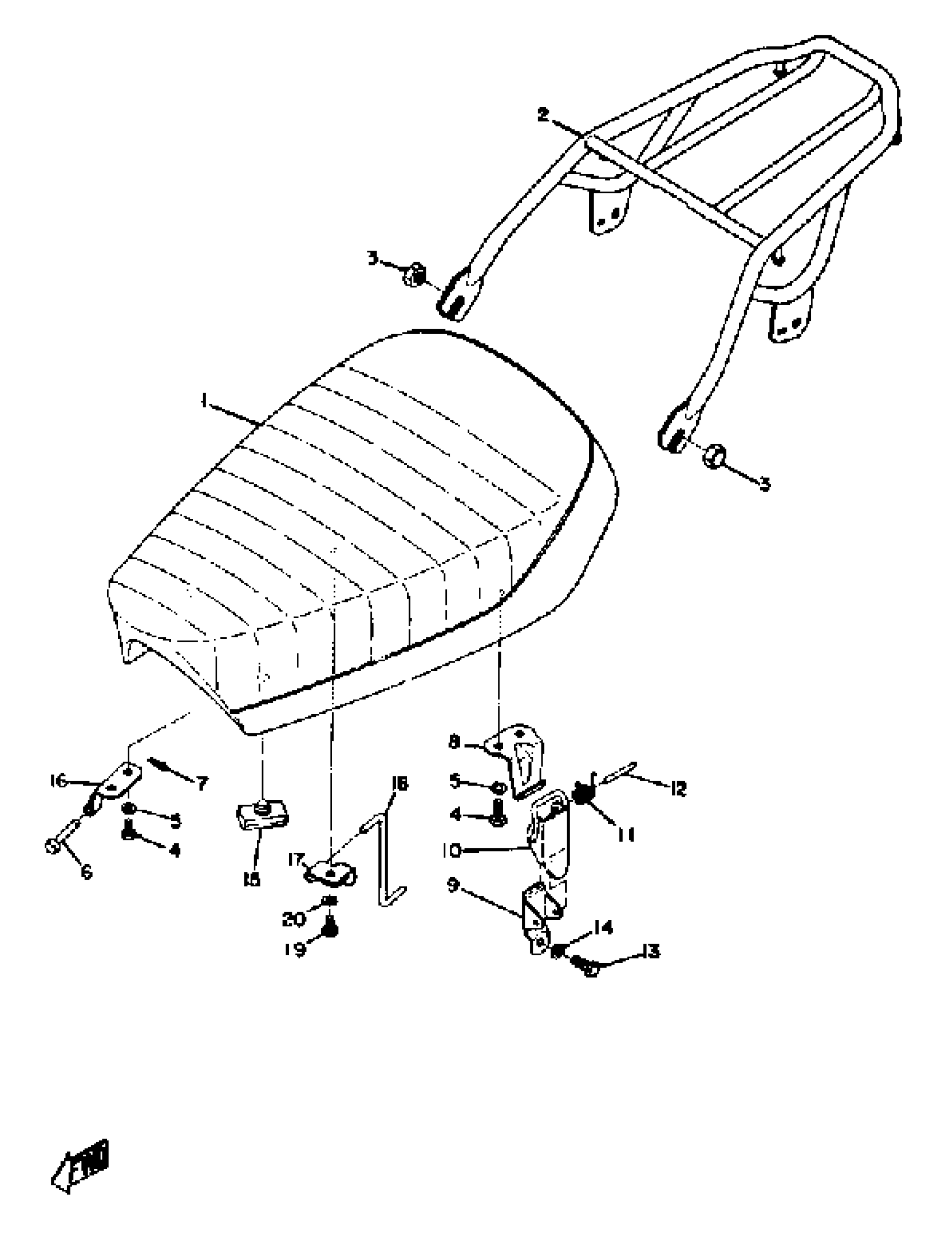

Yamaha CT2 (CT2) BH19219 1972 SEAT CARRIER Diagram

SINGLE SEAT ASSEMBLY

COVER, SINGLE SEAT

CARRIER AT/CT

NUT, CROWN (650)

BOLT (661)

WASHER, SPRING

PIN, CLEVIS

CLIP (156-83525-00)

BRACKET, SEAT

BRACKET, SEAT

LEVER, SEAT

. SPRING, TORSION

. PIN, SPECIAL SHAPE

BOLT(3JP)

YBS66-6 WASHER, PLAIN

DAMPER, SEAT

DAMPER, SEAT

HINGE, SEAT

BRACKET, SEAT

STOPPER

BOLT (661)

WASHER, SPRING
