1972 Yamaha CT2 (CT2) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

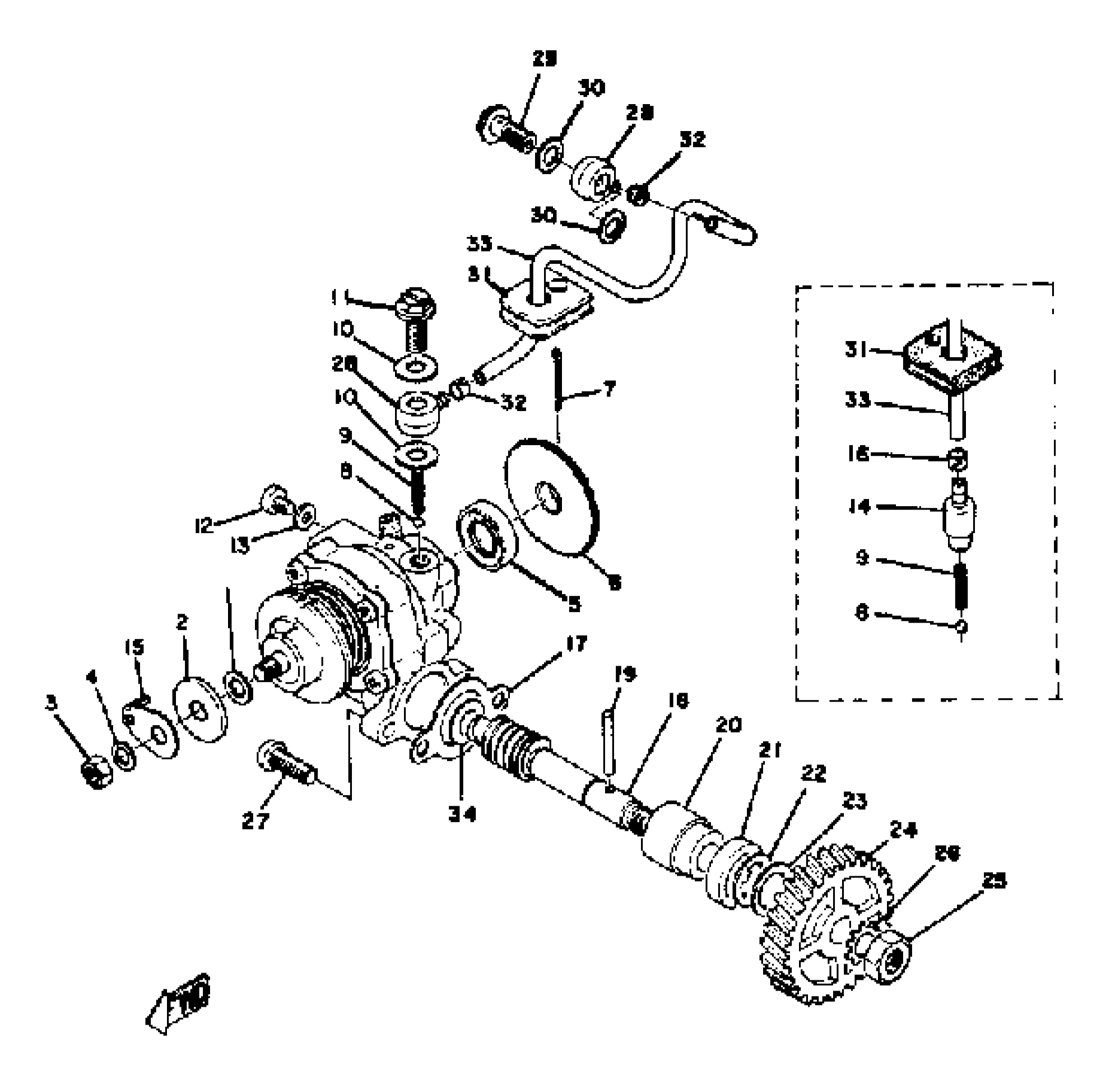

1972 Yamaha CT2 (CT2) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIM,PLUNGER

137-13137-00-10

1
Out of stock

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

1
Out of stock

2

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

3

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1
Out of stock

6

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

7

. PIN, COTTER

91401-12018-00

1
Out of stock

8

BALL

93505-32002-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

10

GASKET(3FP)

90430-06224-00

1
Out of stock

11

BOLT, UNION

90401-06011-00

1
Out of stock

12

SCREW, BIND

98980-04008-00

1
Out of stock

13

GASKET 137131870000

90430-04004-00

1
Out of stock

14

NOZZLE

402-13552-00-00

—
Out of stock

15

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

16

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

17

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

18

SHAFT, WORM

(214-13175-01-00)

1
Out of stock

19

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

20

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

21

OIL SEAL (10X22X7-137)

93101-10002-00

—
Out of stock

22

CIRCLIP (137)

93430-08007-00

—
Out of stock

22

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

23

WASHER, PLATE(52H)

90201-105J4-00

—
Out of stock

24

GEAR, DRIVE

248-13178-00-00

—
Out of stock

25

. NUT

95380-08700-00

1
Out of stock

26

WASHER (688)

92990-08400-00

1
Out of stock

27

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

28

BANJO, DELIVERY PIPE

214-13162-01-00

—
Out of stock

29

BOLT UNION 137131650000

90401-06001-00

—
Out of stock

30

GASKET(3FP)

90430-06224-00

1
Out of stock

31

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

32

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

33

HOSE (L700)

90445-05M07-00

1
Out of stock

34

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
