1972 Yamaha CT2 (CT2) Crank Piston Diagram

← All diagrams

Find the part on the Crank Piston diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

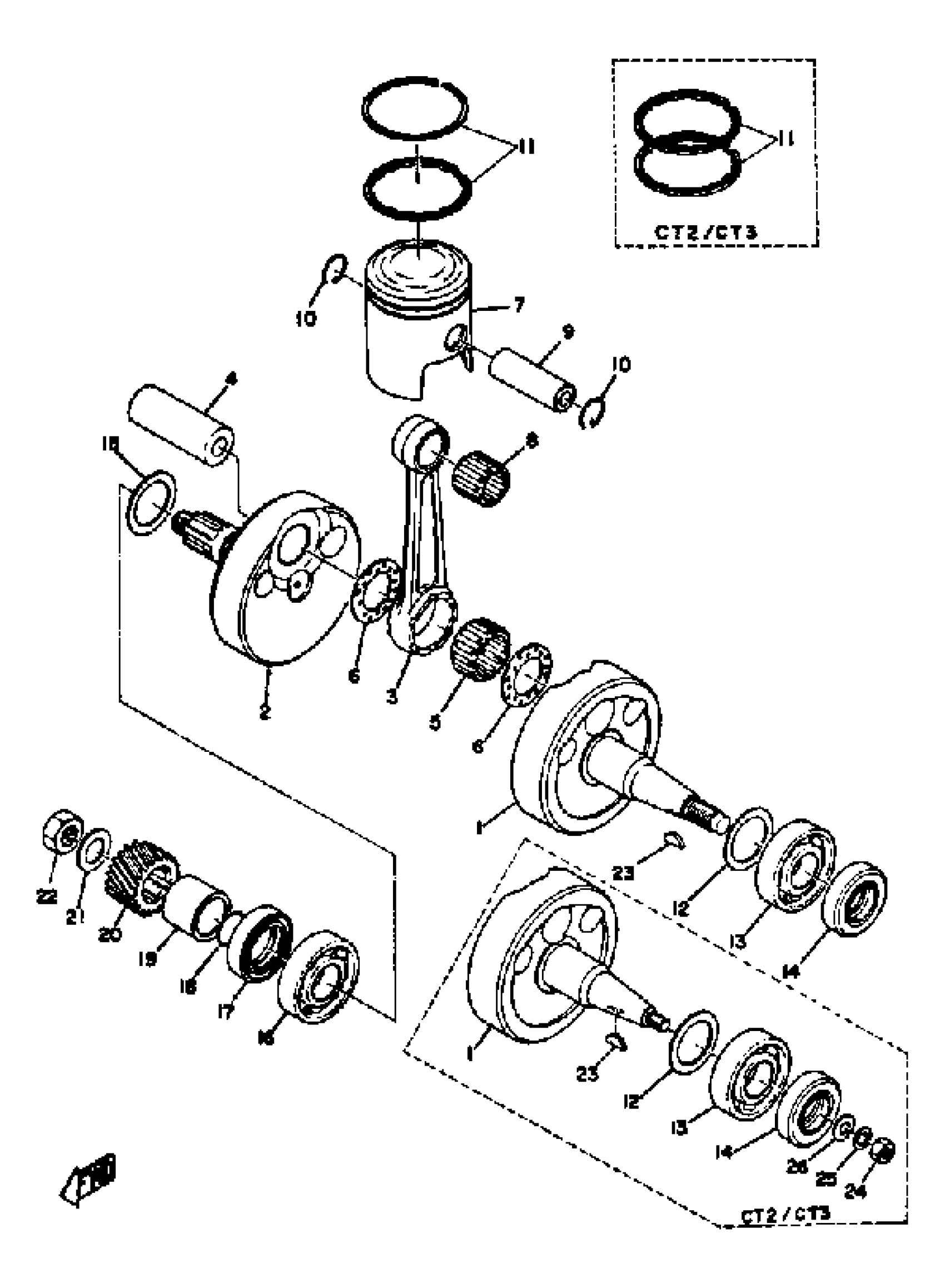

1972 Yamaha CT2 (CT2) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(261-11400-60-00)

1
Out of stock

1

CRANK 1

(316-11412-60-00)

1
Out of stock

1

CRANK 1

(452-11412-00-00)

1
Out of stock

2

CRANK 2

(248-11422-00-00)

1
Out of stock

2

CRANKSHAFT ASSEMBLY

(314-11400-02-00)

1
Out of stock

3

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

4

PIN, CRANK 1

3M5-11681-00-00

1
Out of stock

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1
Out of stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

PISTON STD

314-11631-00-96

1
Out of stock

7

PISTON 1 O/S 0.25

314-11635-00-00

1
Out of stock

7

PISTON 2 O/S 0.50

314-11636-00-00

1
Out of stock

7

PISTON STD

316-11631-00-96

1
Out of stock

7

PISTON 1 O/S 0.25

316-11635-00-00

1
Out of stock

7

PISTON 2 O/S 0.50

316-11636-00-00

1
Out of stock

8

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

—
Out of stock

8

BEARING, NEEDLE (24X)

93310-216L2-00

—
Out of stock

9

PIN, PISTON

137-11633-10-00

—
Out of stock

9

PIN, PISTON

251-11633-00-00

—
Out of stock

10

CIRCLIP (137-11634-00)

93450-17025-00

—
Out of stock

11

PISTON RINGSET STD

314-11610-00-00

1
Out of stock

11

PISTON RINGSET 1ST

314-11610-10-00

1
Out of stock

11

PISTON RINGSET 2ND

314-11610-20-00

1
Out of stock

11

PISTON RINGSET STD

316-11610-00-00

1
Out of stock

11

PISTON RINGSET 1ST

316-11610-10-00

1
Out of stock

11

PISTON RINGSET 2ND

316-11610-20-00

1
Out of stock

12

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

13

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

—
Out of stock

14

OIL SEAL (25X40X8-248)

93102-25061-00

—
Out of stock

15

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

16

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

—
Out of stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—
Out of stock

18

O-RING(3KX)

93210-180A6-00

—
Out of stock

19

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

20

GEAR, PRI DRIVE

(248-16111-00-00)

1
Out of stock

21

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

22

NUT, HEXAGON 1371637700

90170-12060-00

—
Out of stock

23

KEY WOODRUFF 146115450000

90280-03017-00

—
Out of stock

24

NUT(55K)

90170-12347-00

—
Out of stock

25

YBS67-12 WASHER,SPRING

92990-12100-00

—
Out of stock

26

PISTON STD

314-11631-00-96

1
Out of stock

26

PISTON 1 O/S 0.25

314-11635-00-00

1
Out of stock

26

PISTON 2 O/S 0.50

314-11636-00-00

1
Out of stock

26

PISTON STD

316-11631-00-96

1
Out of stock

26

PISTON 1 O/S 0.25

316-11635-00-00

1
Out of stock

26

PISTON 2 O/S 0.50

316-11636-00-00

1
Out of stock

26

WASHER (492)

90201-12535-00

—
Out of stock
