Description

Price

1

KICK CRANK ASSY

3V6-15620-00-00

Unavailable

1

WIRE (L1850)

UN-AVAIL-AB-LE

Unavailable

2

LEVER, KICK

214-15612-01-00

Unavailable

3

SPRING COMPRESSION214156250100

90504-18009-00

$7.49

4

WASHER, KICK LEVER

214-15616-00-00

$6.99

5

CIRCLIP 214156170000

93440-11029-00

$7.49

6

COVER, KICK LEVER

214-15618-00-00

$7.99

7

BOLT, HEXAGON

97013-08030-00

$2.49

8

KICK AXLE ASSEMBLY

315-15660-01-00

Unavailable

8

KICK AXLE ASSEMBLY

315-15660-01-00

Unavailable

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

10

CIRCLIP(1AR)

99009-20400-00

$8.49

11

COVER, SPRING

214-15676-00-00

Unavailable

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

GUIDE, SPRING

214-15664-00-00

Unavailable

14

CIRCLIP(4A6)

99009-30400-00

Unavailable

15

HOLDER, KICK GEAR

248-15654-00-00

Unavailable

16

GEAR, KICK

261-15641-00-00

Unavailable

16

GEAR, KICK

315-15641-00-00

Unavailable

17

CLIP 315156870000

90468-26048-00

Unavailable

18

STOPPER, KICK SPRING

248-15668-00-00

Unavailable

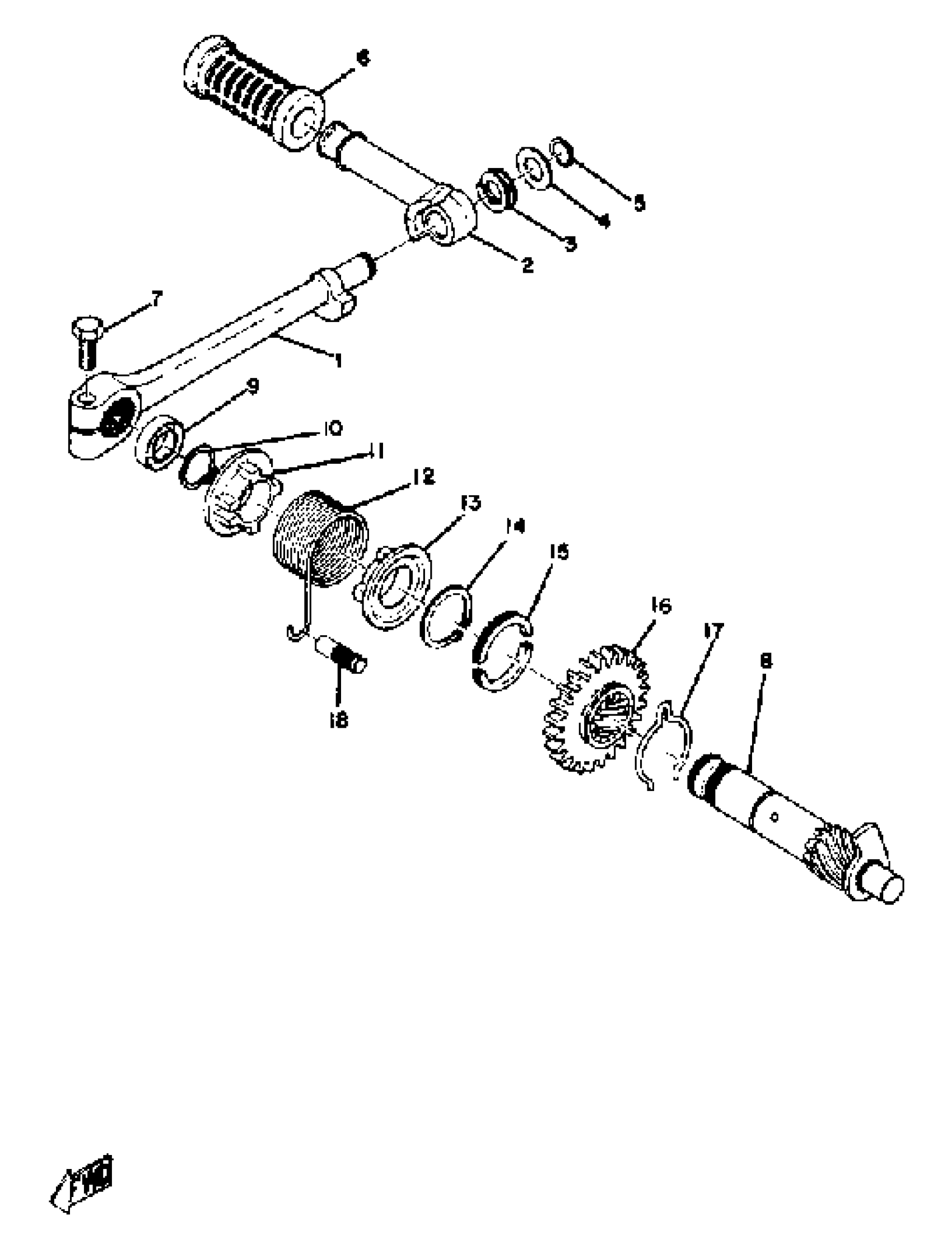

Yamaha CT2 (CT2) BH19219 1972 KICK STARTER Diagram

KICK CRANK ASSY

WIRE (L1850)

LEVER, KICK

SPRING COMPRESSION214156250100

WASHER, KICK LEVER

CIRCLIP 214156170000

COVER, KICK LEVER

BOLT, HEXAGON

KICK AXLE ASSEMBLY

KICK AXLE ASSEMBLY

OIL SEAL (20X30X4.5-146)

CIRCLIP(1AR)

COVER, SPRING

SPRING TORSION 304156650000

GUIDE, SPRING

CIRCLIP(4A6)

HOLDER, KICK GEAR

GEAR, KICK

GEAR, KICK

CLIP 315156870000

STOPPER, KICK SPRING
