1972 Yamaha CT2 (CT2) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

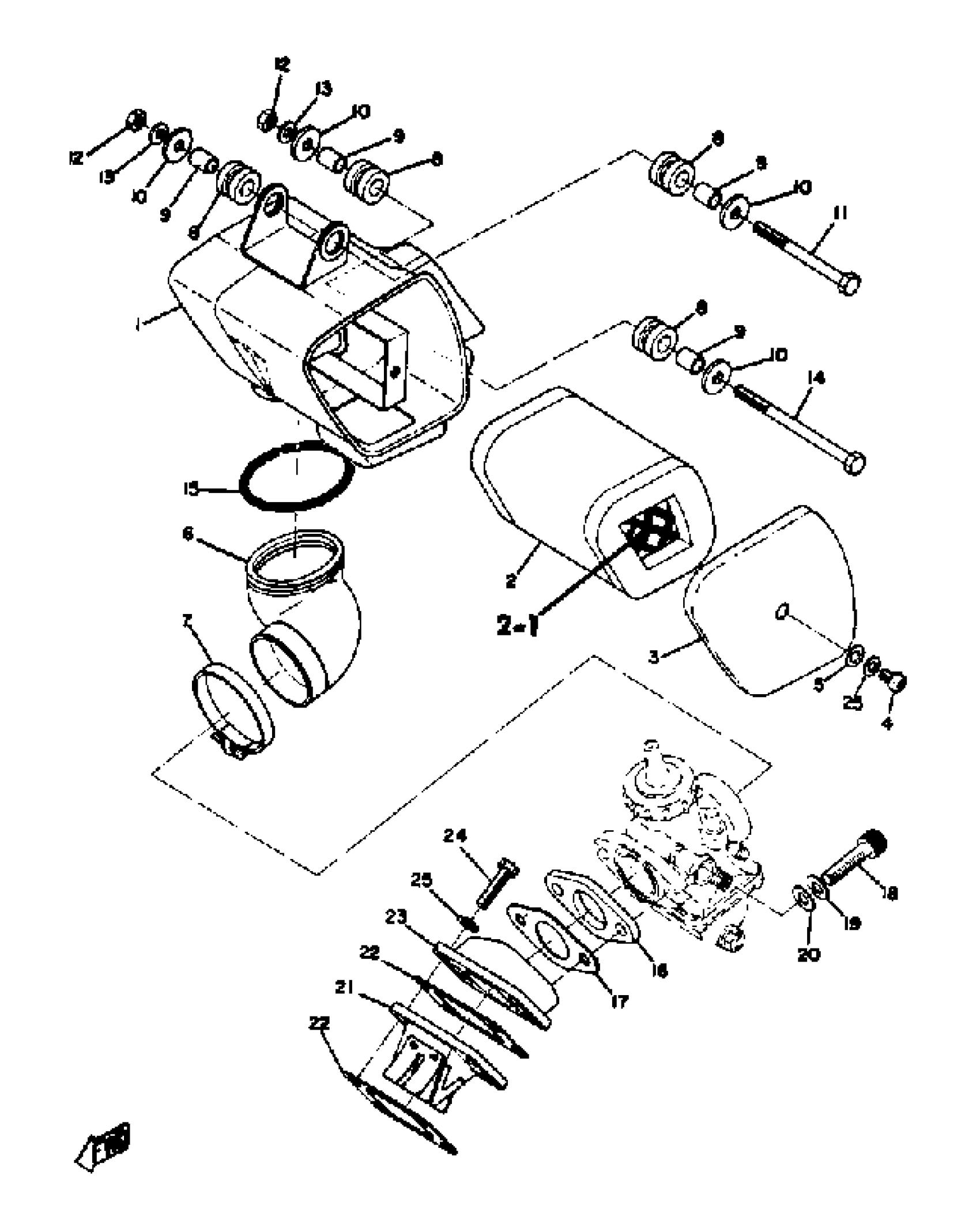

1972 Yamaha CT2 (CT2) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(314-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLEANER

560-14451-08-00

—
Out of stock

3

CAP, CLEANER CASE 1

392-14412-00-00

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

JOINT, AIR CLNR 1

314-14453-00-00

1
Out of stock

7

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

8

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

9

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

BOLT(62J)

97013-06070-00

—

$3.37

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT(3GG)

97017-06090-00

1
Out of stock

15

1

$7.75

In stock

16

MANIFOLD, INTAKE

315-13555-00-00

1
Out of stock

17

GASKET, MANIFOLD

248-13556-71-00

—

$7.51

In stock

18

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

21

REED VALVE ASSY

53V-13610-00-00

—
Out of stock

22

GASKET, VALVE SEAT

87A-13621-00-00

—

$7.97

In stock

23

JOINT, CARBURETOR

314-13565-00-00

1
Out of stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
