1972 Yamaha CT2 (CT2) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

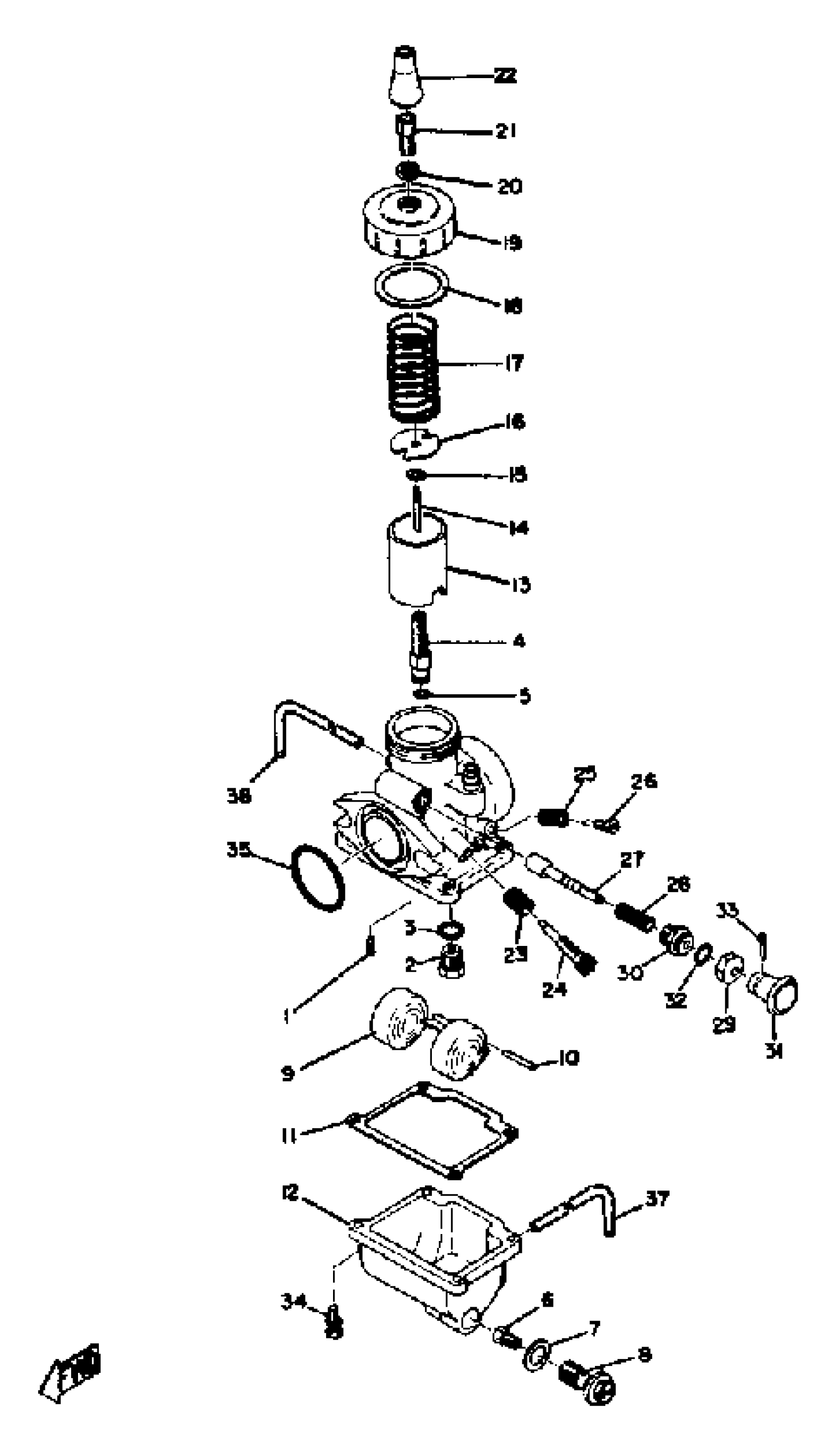

1972 Yamaha CT2 (CT2) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 25)

260-14142-25-00

1
Out of stock

1

JET, PILOT (# 35)

260-14142-35-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(314-14101-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(316-14101-01-00)

1
Out of stock

2

NEEDLE VALVE SET

23L-14107-25-00

1
Out of stock

3

WASHER, VALVE SEAT

214-14195-00-00

1
Out of stock

4

. NOZZLE, MAIN

(304-14141-36-00)

1
Out of stock

4

. NOZZLE, MAIN 001

(314-14141-36-00)

1
Out of stock

5

O-RING

214-14147-00-00

1
Out of stock

6

JET, MAIN #200

137-14143-40-A1

1
Out of stock

6

JET, MAIN #230

137-14143-46-A1

1
Out of stock

7

GASKET

304-14198-00-00

1
Out of stock

8

BOLT,BANJO

479-14166-00-00

1
Out of stock

9

FLOAT

314-14185-00-00

1
Out of stock

10

. UNAVAILABLE IN PRICE BOOK

371-41860-10-0

1
Out of stock

11

GASKET,FLOAT CHAMBER

304-14184-00-00

—
Out of stock

12

. BODY, FLOAT CHMBR 1

314-14181-08-00

1
Out of stock

13

VALVE, THROTTLE

314-14112-15-00

—
Out of stock

13

VALVE,THROTTLE

314-14112-20-00

—
Out of stock

13

VALVE, THROTTLE

314-14112-25-00

—
Out of stock

14

. NEEDLE

152-14116-10-00

1
Out of stock

14

NEEDLE

166-14116-13-00

—
Out of stock

14

NEEDLE SET

18L-1490J-00-00

—
Out of stock

14

. NEEDLE 001

316-14116-03-00

1
Out of stock

15

CLIP

3FA-14137-00-00

—
Out of stock

16

. STOPPER, CABLE

246-14132-00-00

1
Out of stock

17

SPRING, THROTTLE VALVE

248-14131-00-00

—
Out of stock

18

GASKET

246-14126-00-00

—
Out of stock

19

. TOP, MIXING CHAMBER

802-14158-00-00

1
Out of stock

20

NUT, WIRE ADJUSTING

802-14161-00-00

—
Out of stock

21

CABLE ADJUST SCREW SET

12G-14106-00-00

—
Out of stock

22

CAP

8A7-14169-00-00

—
Out of stock

23

SPRING, THROTTLE STOP

137-14133-00-00

—
Out of stock

24

THROTTLE SCREW SET

23X-14103-00-00

—
Out of stock

25

SPRING, AIR ADJUSTING

174-14134-00-00

—
Out of stock

26

AIR SCREW SET

22K-14104-00-00

—
Out of stock

27

. PLUNGER, STARTER

304-14171-00-00

1
Out of stock

28

SPRING, PLUNGER

156-14135-00-00

—
Out of stock

29

COVER, PLUNGER CAP

132-14173-00-00

—
Out of stock

30

CAP, PLUNGER

152-14174-00-00

—
Out of stock

31

HOLDER

304-14261-00-00

—
Out of stock

32

. CLIP, PLUNGER

152-14138-00-00

1
Out of stock

33

PIN, COTTER

91490-16020-00

1
Out of stock

34

SCREW, PAN HEAD(GA5)

98580-04014-00

—
Out of stock

35

O-RING

248-14147-00-00

—
Out of stock

36

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

37

PIPE

23F-14197-00-00

—
Out of stock
