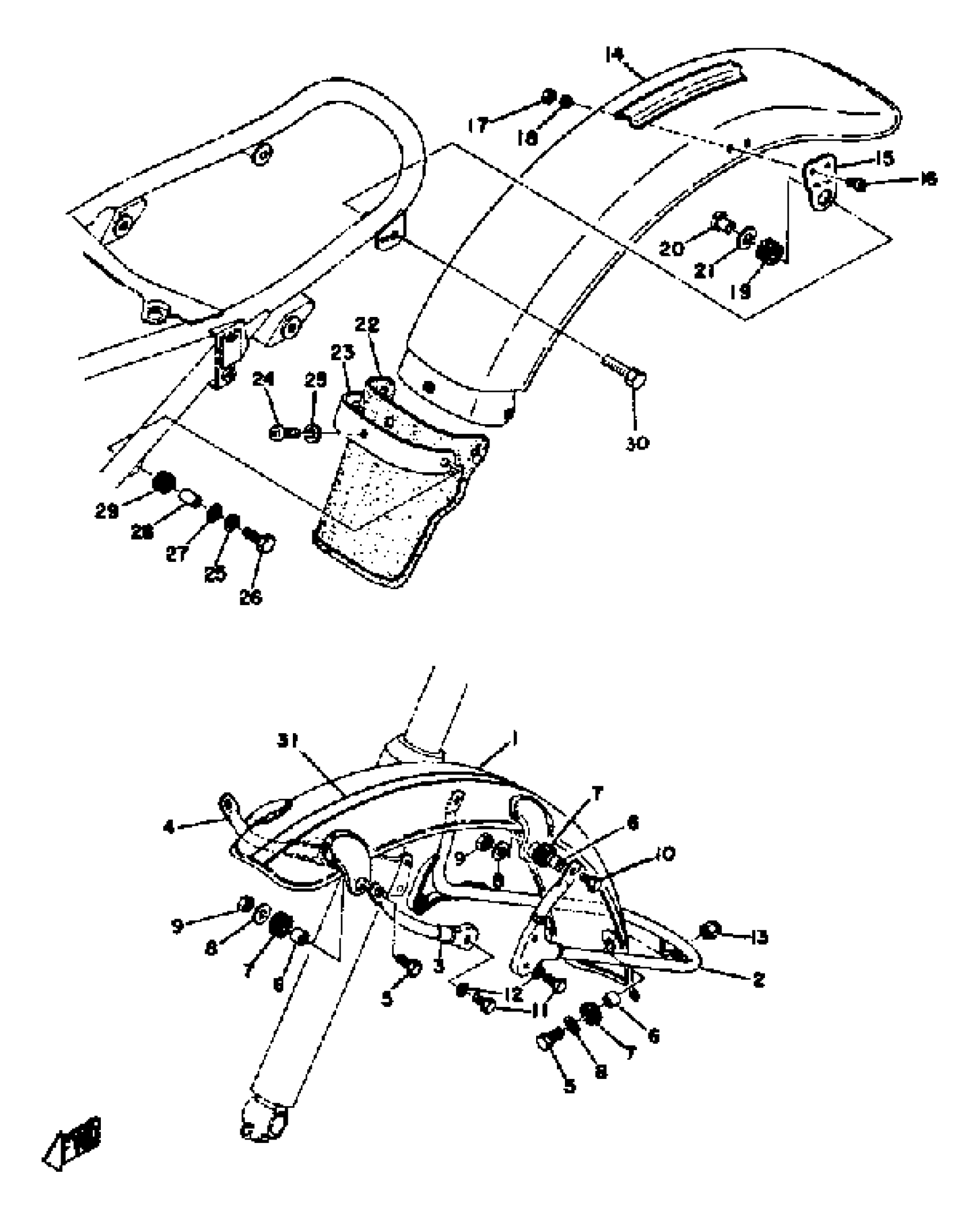

Yamaha CT2 (CT2) BH19219 1972 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(214-21510-00-35)

Unavailable

1

FENDER, FRONT

(248-21510-00-35)

Unavailable

2

BRACKET, FENDER

(214-21512-00-93)

Unavailable

2

BRACKET, FENDER

(248-21512-00-93)

Unavailable

3

STAY, FENDER 1

(214-21513-00-00)

Unavailable

3

STAY, FENDER 1

(248-21513-00-00)

Unavailable

4

STAY, FENDER 2

(214-21514-00-00)

Unavailable

4

STAY, FENDER 2

248-21514-00-00

Unavailable

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

COLLAR (J10)

90387-06026-00

$8.49

7

GROMMET 839774310000

90480-14023-00

$7.49

8

WASHER, PLATE

90201-06380-00

$0.60

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT (J17)

95380-06800-00

Unavailable

14

FENDER, REAR

(316-21610-00-35)

Unavailable

14

FENDER, REAR

(444-21610-00-35)

Unavailable

15

STAY, FENDER 1

(248-21613-00-91)

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

DAMPER, FRONT

168-21638-00-00

Unavailable

20

NUT, REAR FENDER

248-21635-00-00

Unavailable

21

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

22

GUARD, MUD

(248-21629-00-00)

Unavailable

23

BAND, FLAP

(248-21622-00-33)

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

$4.24

27

WASHER, PLATE

90201-06380-00

$0.60

28

COLLAR (J10)

90387-06026-00

$8.49

29

GROMMET 839774310000

90480-14023-00

$7.49

30

BOLT

97013-08045-00

Unavailable

31

MOLD, FENDER

(308-21519-00-00)

Unavailable

31

MOLD, FENDER

(316-21519-00-00)

Unavailable
