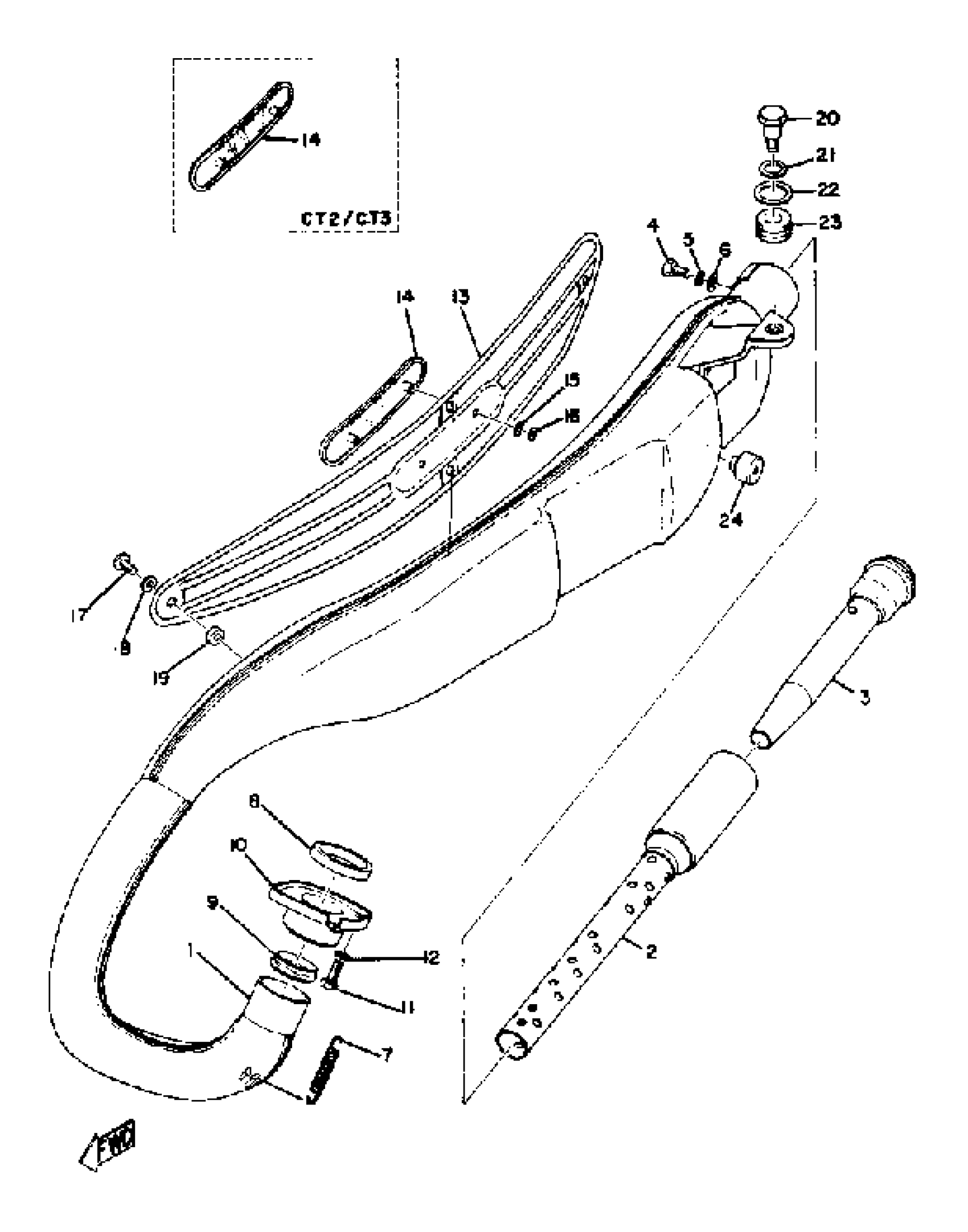

Yamaha CT2 (CT2) BH19219 1972 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(314-14610-30-00)

Unavailable

1

EXHAUST PIPE ASSEMBLY L

(316-14610-30-00)

Unavailable

2

. SILENCER, EXHAUST

214-14753-01-00

Unavailable

3

. PIPE, OUTLET

261-14752-30-00

Unavailable

4

BOLT(3JP)

97017-06010-00

$3.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

SPRING 214-14683-01

90506-12029-00

Unavailable

8

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

9

GASKET

248-14623-10-00

$7.99

10

NUT, RING

2K5-14612-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

PROTECTOR, MUFF 1

(314-14718-30-00)

Unavailable

14

EMBLEM, PROTECTOR

(314-14729-30-00)

Unavailable

14

EMBLEM, PROTECTOR

(316-14729-30-00)

Unavailable

15

WASHER PLATE 174283160000

90202-04003-00

Unavailable

16

NUT SPRING 116283170100

90183-04005-00

Unavailable

17

SCREW, BIND(J45)

98980-06012-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

WASHER, PLATE(3MT)

90202-05188-00

Unavailable

20

BOLT

90109-08391-00

Unavailable

21

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

22

WASHER PLATE 168217580000

90201-18262-00

Unavailable

23

DAMPER, FRONT

168-21638-00-00

Unavailable

24

STOPPER, MAIN STAND

116-27114-00-00

Unavailable
