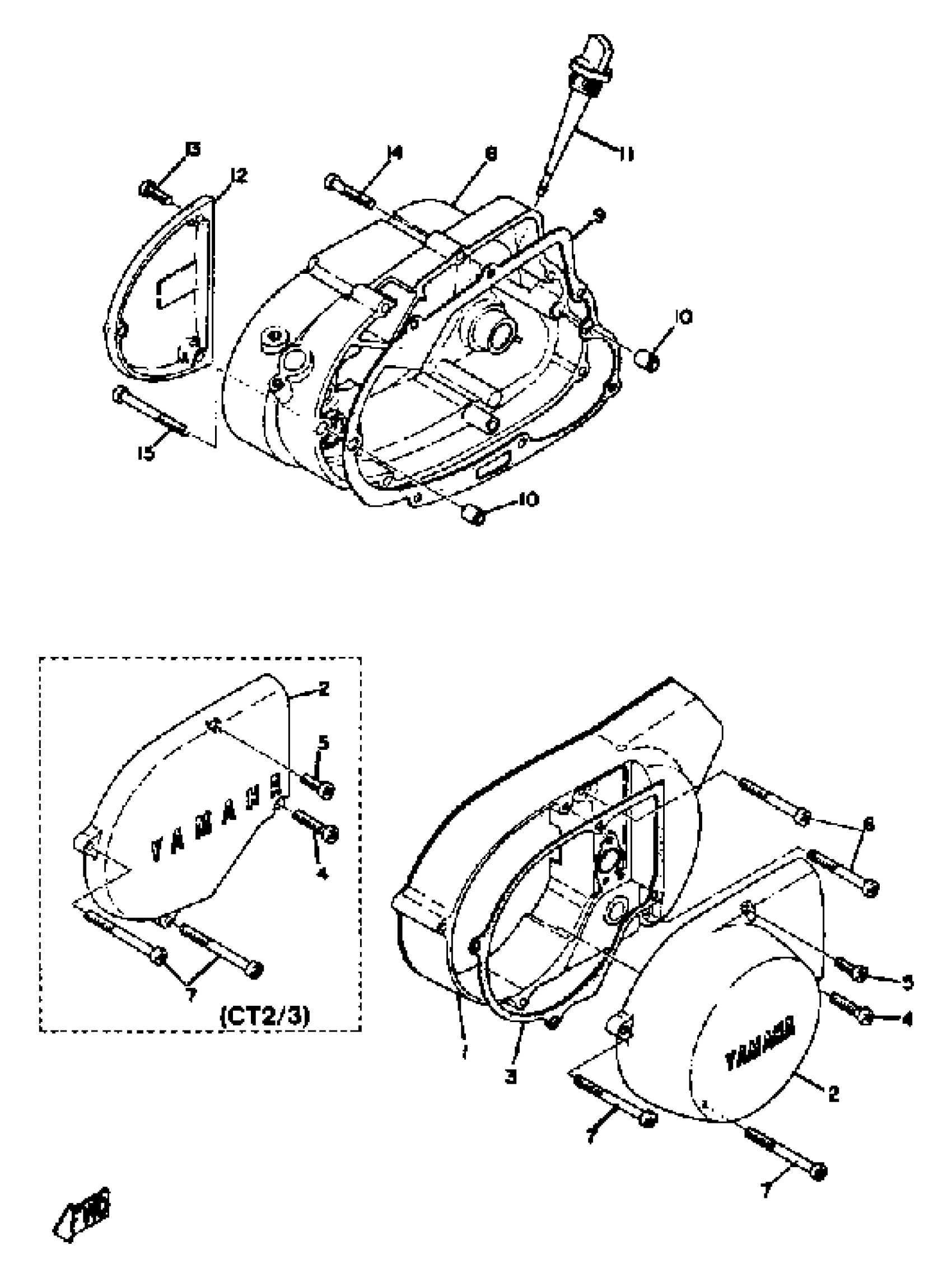

Yamaha CT2 (CT2) BH19219 1972 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

482-15411-00-Y4

Unavailable

2

COVER, GENERATOR (314-15415-00)

314-15415-00-Y4

Unavailable

2

COVER, GENERATOR

316-15415-00-00

Unavailable

3

GASKET 1

3GY-15455-00-00

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

5

SCREW PAN HEAD

98580-06020-00

$8.49

6

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

COVER, CRANKCASE R

(314-15421-00-00)

Unavailable

9

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

$30.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

PLUG, OIL LEVEL

315-15362-01-00

$15.49

12

COVER, OIL PUMP

3V6-15416-00-00

Unavailable

13

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

15

SCREW, BIND (JH1)

98580-06560-00

Unavailable
