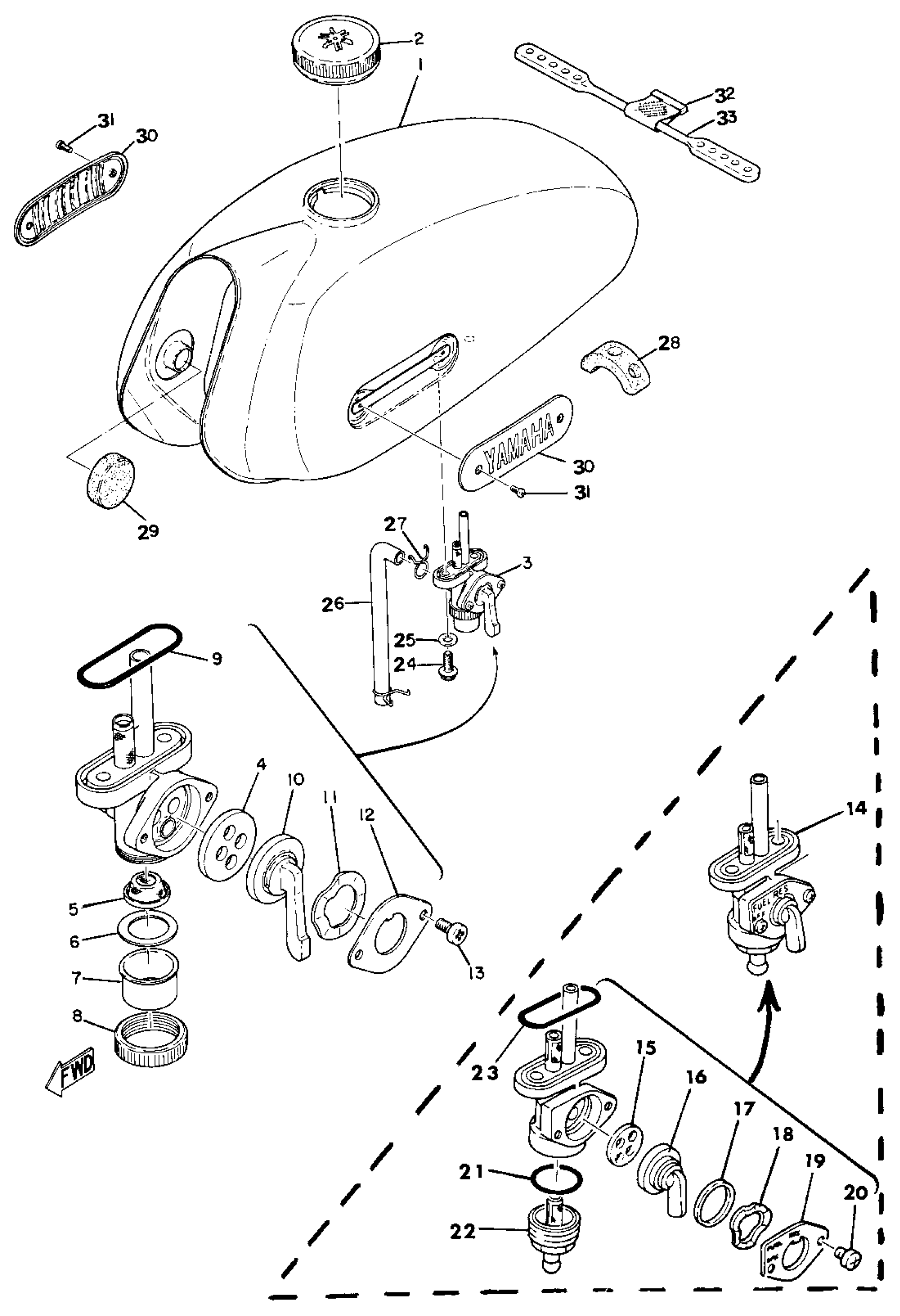

Find the part on the Fuel Tank diagram for your 1971 Yamaha CT1C (CT1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha CT1C (CT1C) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

248-24110-00-06

1
Out of stock

1

FUEL TANK

(248-24110-00-07)

1
Out of stock

2

CAP ASSY

122-24610-01-00

1
Out of stock

3

FUEL COCK ASSY

498-24500-01-00

1
Out of stock

4

VALVE

214-24523-00-00

1
Out of stock

5

. NET, FILTER 2

214-24515-00-00

1
Out of stock

6

GASKET, FILTER

214-24522-00-00

—
Out of stock

7

. CUP, FILTER

214-24521-00-00

1
Out of stock

8

. NUT

214-24531-00-00

1
Out of stock

9

GASKET, BODY

214-24512-00-00

1
Out of stock

10

LEVER, COCK

(214-24524-01-00)

1
Out of stock

11

WASHER WAVE 137245180000

90206-18025-00

—
Out of stock

12

PLATE, LEVER FITTING

(214-24525-00-00)

1
Out of stock

13

SCREW, LEVER FITTING

214-24535-00-00

1
Out of stock

14

FUEL COCK ASSY

498-24500-01-00

1
Out of stock

15

VALVE, COCK

498-24523-00-00

—
Out of stock

16

. LEVER, COCK

498-24524-01-00

1
Out of stock

17

GASKET

(498-24528-00-00)

1
Out of stock

18

WASHER WAVE 137245180000

90206-18025-00

—
Out of stock

19

. PLATE, LEVER FITTING

498-24525-00-00

1
Out of stock

20

SCREW, LEVER FITTING

214-24535-00-00

1
Out of stock

21

GASKET, FILTER

498-24522-00-00

—
Out of stock

22

CUP, FILTER

(498-24521-00-00)

1
Out of stock

23

GASKET, BODY

214-24512-00-00

1
Out of stock

24

SCREW 256241430000

90149-06011-00

—
Out of stock

25

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock

26

HOSE (L198)

90445-11293-00

—
Out of stock

27

CLIP

90467-100A1-00

—
Out of stock

28

DAMPER, LOCATING 3

(248-24183-00-00)

1
Out of stock

29

DAMPER, LOCATING 1

3TB-24181-00-00

—
Out of stock

30

EMBLEM 1

227-24161-00-00

1
Out of stock

31

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

32

BAND, TANK FITTING 1

214-24173-00-00

1
Out of stock

33

BAND, TANK FITTING 2

248-24173-00-00

1
Out of stock
