CARBURETOR

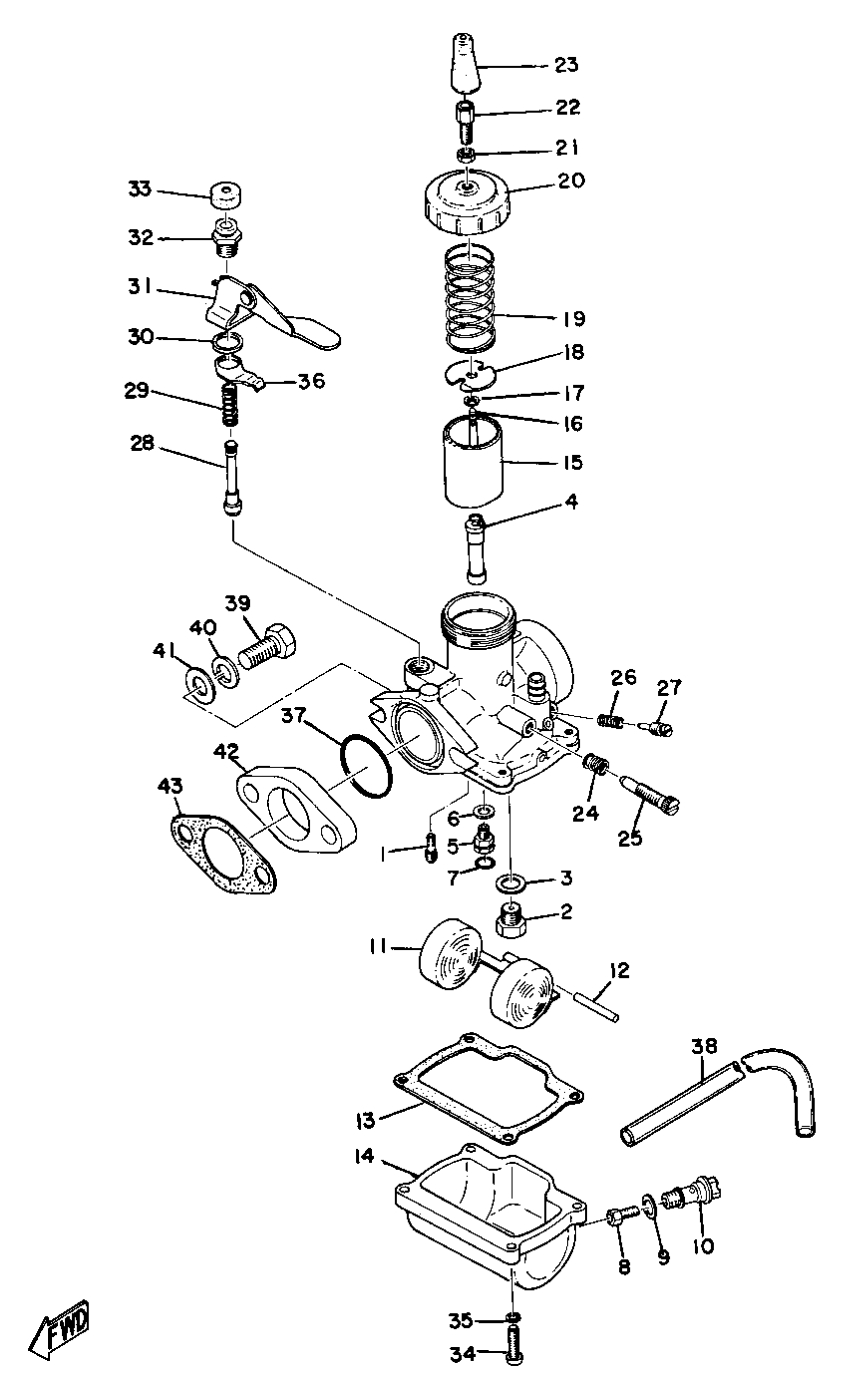

1971 Yamaha CT1C (CT1C) Carburetor Diagram
Find the part on the Carburetor diagram for your 1971 Yamaha CT1C (CT1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
JET, PIL0T (# 30)
193-14142-30-A0
1
CARBURETOR ASSEMBLY 1
248-14101-01-00
1
CARBURETOR ASSEMBLY 1
(248-14101-70-00)
2
NEEDLE VALVE SET
23L-14107-25-00
4
NOZZLE, MAIN
(248-14141-28-00)
4
. NOZZLE, MAIN
(261-14141-32-00)
5
SETTER, NEEDLE JET
(248-14145-01-00)
6
WASHER,MAIN JET
137-14153-00-00
7
O-RING (371)
93210-04230-00
8
JET,MAIN #190
137-14143-38-A0
8
JET, MAIN #200
137-14143-40-A1
9
. GASKET
248-14198-00-00
10
BOLT,BANJO
479-14166-00-00
11
. FLOAT
156-14185-00-00
13
. GASKET, FLOAT CHAMBER
156-14184-00-00
14
BODY, FLOAT CHMBR 1
(248-14181-01-00)
15
. VALVE, THROTTLE 1
(204-14112-15-00)
15
. VALVE, THROTTLE 1
204-14112-20-00
16
. NEEDLE
152-14116-15-00
16
. NEEDLE
156-14116-03-00
17
CLIP
137-14137-00-00
18
. STOPPER, CABLE
246-14132-00-00
19
SPRING, THROTTLE VALVE
248-14131-00-00
20
. TOP, MIXING CHAMBER
802-14158-00-00
30
WASHER, STARTER LVR
(132-14179-00-00)
31
. LEVER, STARTER 1
(248-14175-00-00)
32
CAP, PLUNGER
(132-14174-00-00)
36
. PLATE, STARTER LEVER
(170-14178-00-00)
42
MANIFOLD, INTAKE
(248-13555-01-00)
