1970 Yamaha CT1B (CT1B) Transmission Diagram

← All diagrams

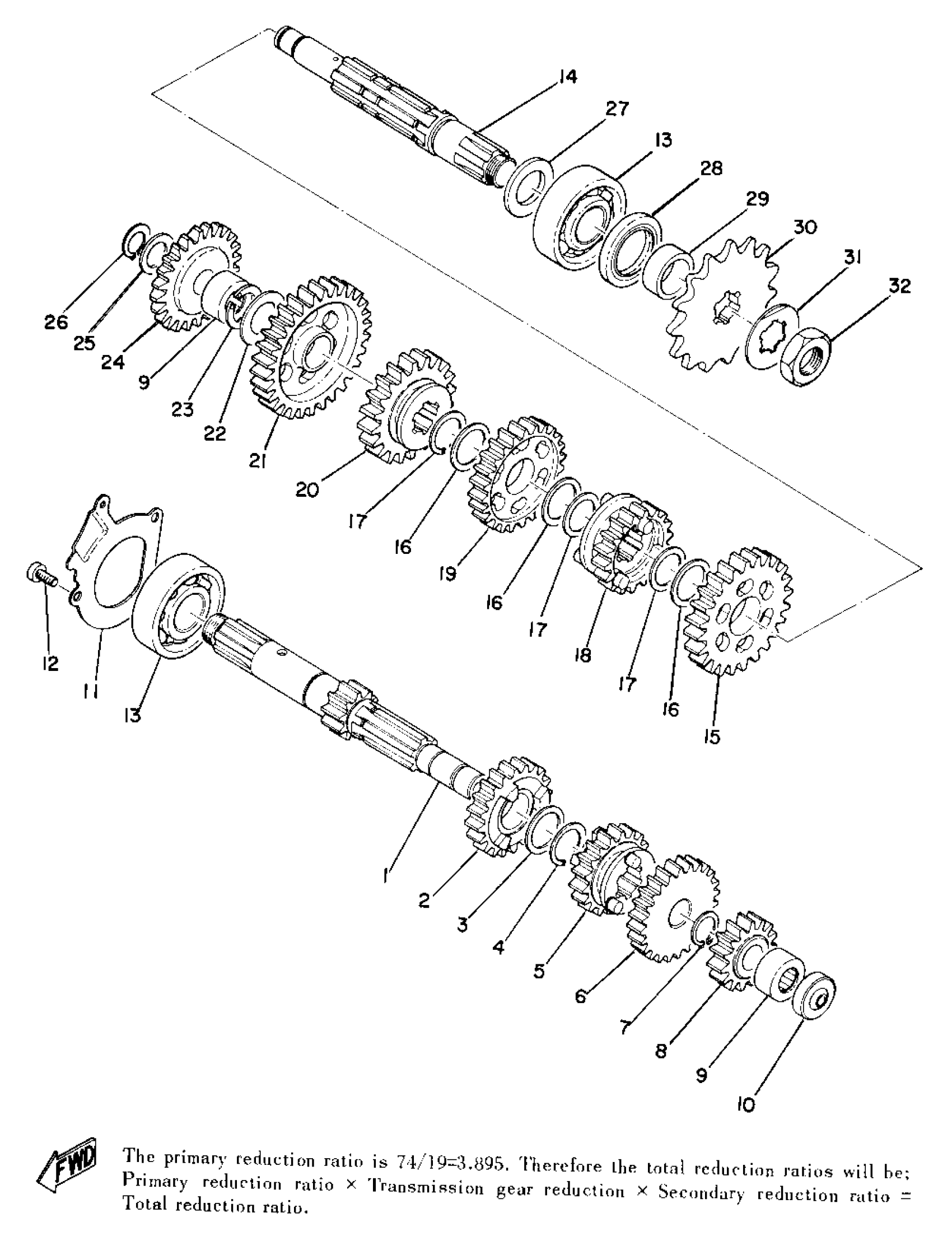

Find the part on the Transmission diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CT1B (CT1B) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(248-17411-01-00)

1
Out of stock

1

AXLE, MAIN

(265-17411-01-00)

1
Out of stock

2

GEAR, 4TH PINION

(248-17141-00-00)

1
Out of stock

2

GEAR, 4TH PINION

(265-17141-00-00)

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

. GEAR, 3RD PINION

248-17131-00-00

1
Out of stock

6

GEAR, 5TH PINION

(248-17151-00-00)

1
Out of stock

6

GEAR, 5TH PINION

(265-17151-00-00)

1
Out of stock

7

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

8

GEAR, 2ND PINION

(248-17121-01-00)

1
Out of stock

8

GEAR, 2ND PINION

(315-17121-00-00)

1
Out of stock

9

BEARING, CYL. #11

93311-31507-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

SEAL, PUSH ROD (3V6)

93109-06060-00

1

$7.51

In stock

11

PLATE, COVER

(248-17471-01-00)

1
Out of stock

12

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

13

—

$54.91

In stock

14

. AXLE, DRIVE

248-17421-00-00

1
Out of stock

15

GEAR, 2ND WHEEL

(248-17221-00-00)

1
Out of stock

16

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

17

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

18

. GEAR, 5TH WHEEL (20T)

248-17251-00-00

1
Out of stock

18

GEAR, 5TH WHEEL

(265-17251-00-00)

1
Out of stock

19

. GEAR, 3RD WHEEL (26T)

248-17231-00-00

1
Out of stock

20

GEAR,4TH WHEEL

4EG-17241-00-00

1
Out of stock

20

GEAR, 4TH WHEEL

(265-17241-00-00)

1
Out of stock

21

. GEAR, 1ST WHEEL

248-17211-00-00

1
Out of stock

21

GEAR, 1ST WHEEL

(265-17211-00-00)

1
Out of stock

22

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock

23

CIRCLIP

93440-15012-00

—
Out of stock

24

GEAR, KICK IDLE

403-15651-00-00

—

$41.88

In stock

25

WASHER

132-15653-00-12

1
Out of stock

25

WASHER

(132-15653-00-14)

1
Out of stock

26

CIRCLIP(13M)

99009-13400-00

—

$5.66

In stock

27

SPACER

90560-20038-00

1
Out of stock

28

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

29

COLLAR (525)

90387-20491-00

—

$13.71

In stock

30

SPROCKET, DRIVE (13T)

93822-13213-00

—

$19.66

In stock

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

30

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

30

—

$18.58

In stock

31

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

32

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock
