1970 Yamaha CT1B (CT1B) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

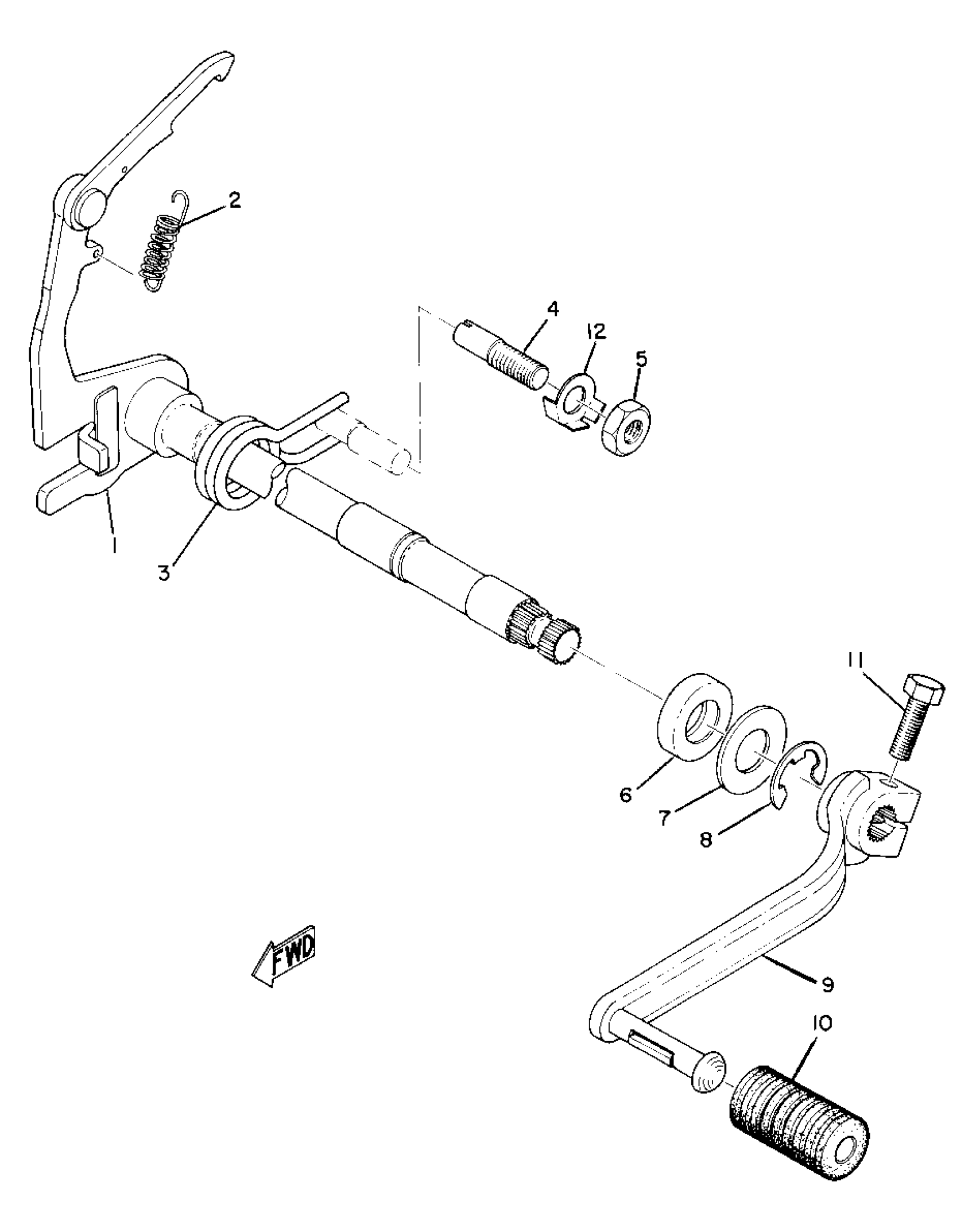

1970 Yamaha CT1B (CT1B) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

3M5-18101-01-00

—

$71.60

In stock

1

NUT (583)

90170-08193-00

1
Out of stock

1

WASHER LOCK 248181390000

90215-08014-00

1

$5.38

In stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

7

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

8

. CIRCLIP

99001-12600-00

1

$5.78

In stock

9

PEDAL, SHIFT

173-18111-01-93

1
Out of stock

9

PEDAL, SHIFT

367-18111-00-00

1

$35.38

In stock

10

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

WASHER, LOCK

248-18139-09-00

1
Out of stock
