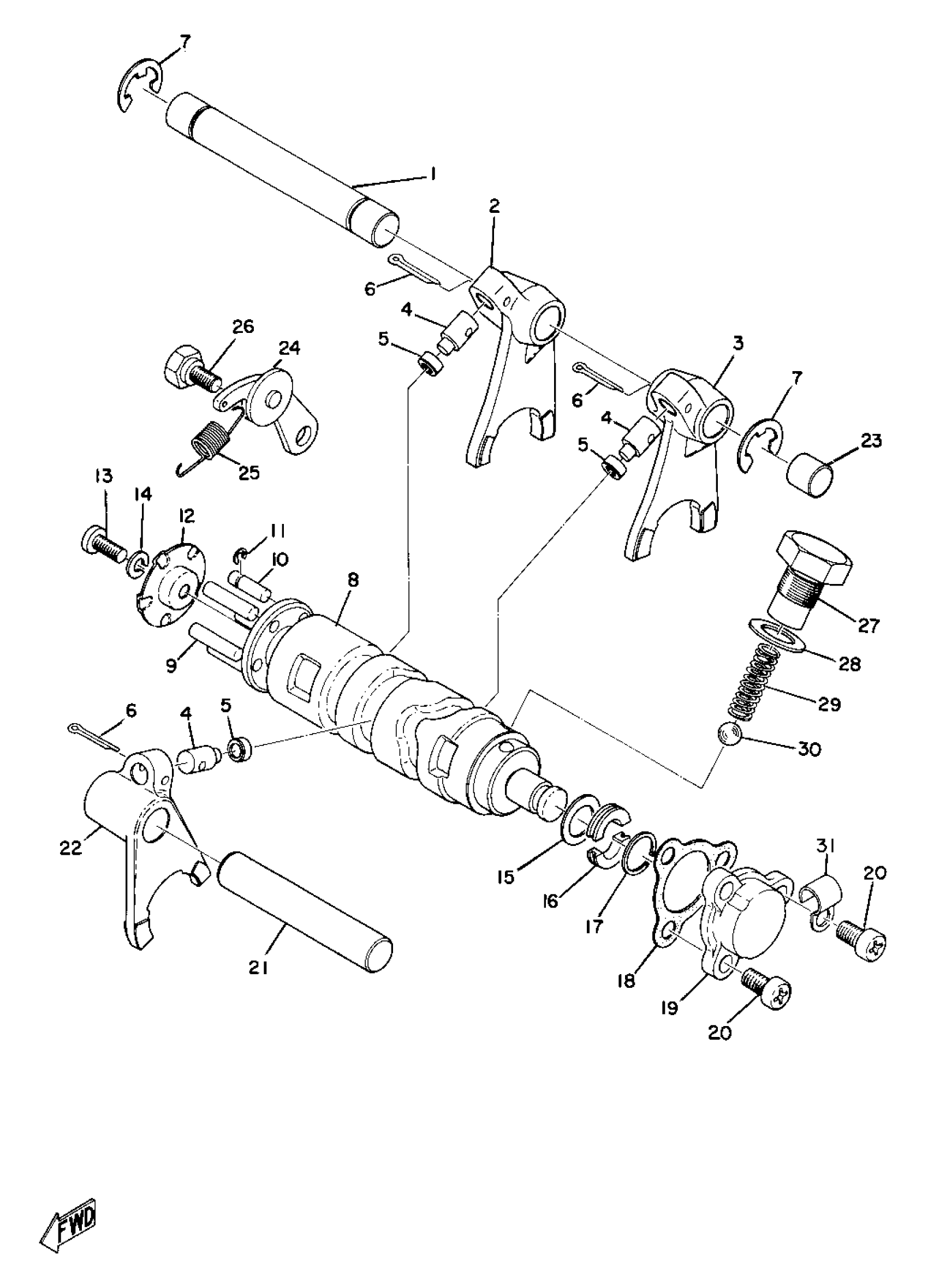

Yamaha CT1B (CT1B) 1970 SHIFTER 1 Diagram

#

Description
Price

1

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

1

PIN, STRAIGHT

90250-08017-00

Unavailable

2

FORK, SHIFT 3

463-18513-00-00

Unavailable

3

FORK, SHIFT 1

463-18511-00-00

Unavailable

4

PIN, SPEC''L SHAPE

(90249-05035-00)

Unavailable

5

PIN,SPEC'L SHAPE

90249-05035-00

Unavailable

6

PIN, COTTER

91490-25020-00

$3.19

7

CIRCLIP

99006-10600-00

$9.49

8

SHIFT CAM ASSEMBLY

315-18540-00-00

Unavailable

9

PIN,DOWEL (620)

93604-22050-00

$8.49

10

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

11

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

12

PLATE, SIDE

164-18561-00-00

$5.49

13

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

WASHER PLATE 164185720000

90201-12166-00

Unavailable

16

HOLDER, SHIFT CAM

164-18571-01-00

Unavailable

16

HOLDER, SHIFT CAM

307-18571-00-00

Unavailable

17

CIRCLIP

93440-15012-00

Unavailable

18

GASKET, PLUG BLIND

4EG-18579-00-00

Unavailable

19

PLUG, BLIND SHIFT CAM

164-18589-00-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

21

BAR, SHIF FRK GDE 1

(248-18531-00-00)

Unavailable

22

FORK, SHIFT 2

463-18512-00-00

Unavailable

23

PLUG, BLIND

214-15385-00-00

Unavailable

24

STOPPER LEVER ASSY

132-18140-01-00

Unavailable

25

SPRING, TENSION (260)

90506-09112-00

Unavailable

26

BOLT

90109-06239-00

Unavailable

27

BOLT

90109-14385-00

Unavailable

28

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

29

SPRING, COMPRESION

90501-12750-00

Unavailable

30

BALL

93505-16006-00

Unavailable

31

CLAMP

(90462-05012-00)

Unavailable
