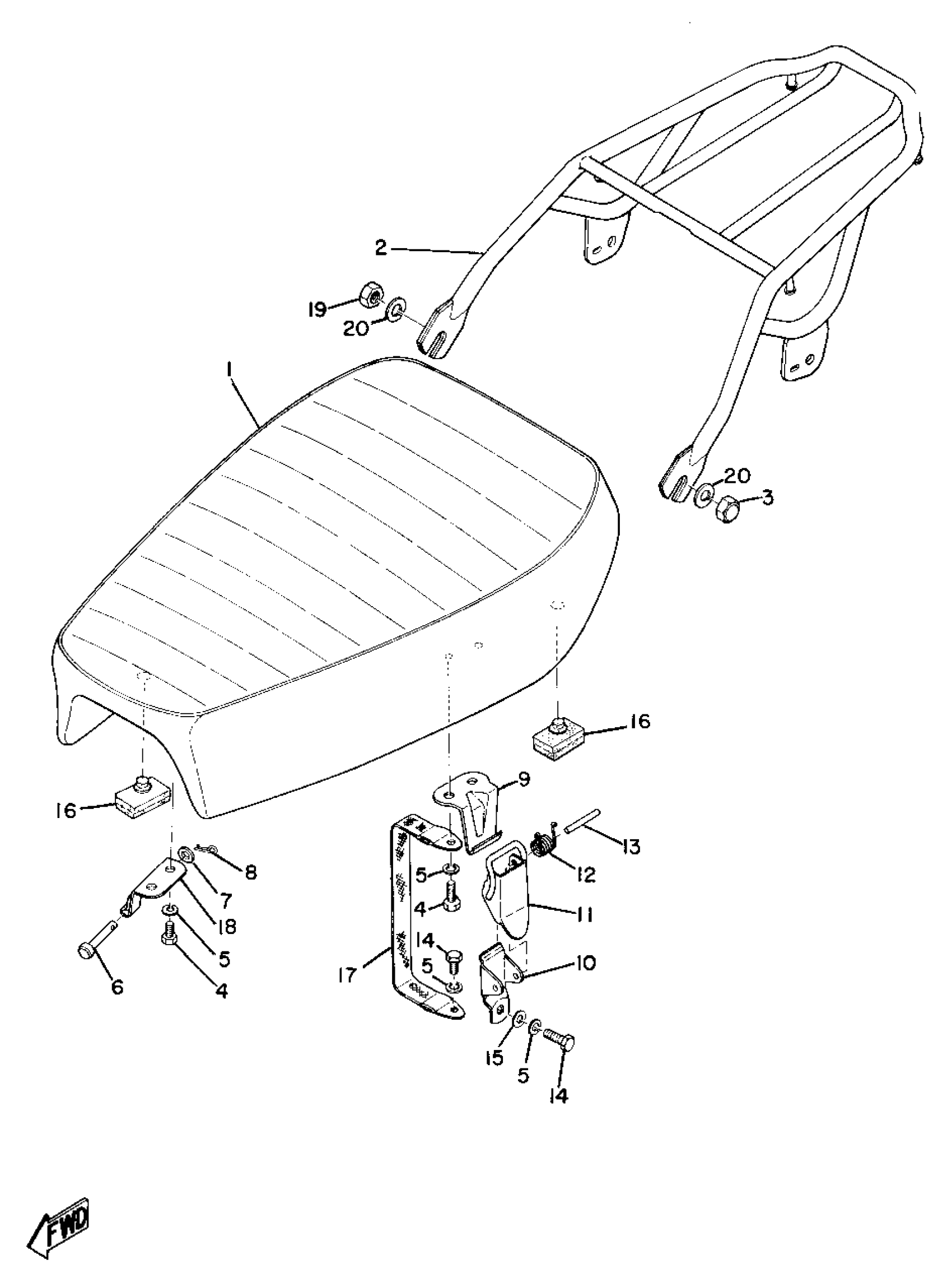

Yamaha CT1B (CT1B) 1970 SEAT & CARRIER Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

(261-24710-01-00)

Unavailable

1

COVER, SINGLE SEAT

(261-24711-00-00)

Unavailable

2

CARRIER AT/CT

(444-24810-00-00)

Unavailable

3

NUT, CROWN (650)

95380-10800-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PIN, CLEVIS

91701-05055-00

$7.49

7

. WASHER, PLAIN

92990-05200-00

Unavailable

8

CLIP (156-83525-00)

90468-10050-00

$3.05

9

BRACKET, SEAT

(214-24728-00-33)

Unavailable

10

BRACKET, SEAT

214-24718-00-00

Unavailable

11

LEVER, SEAT

214-24776-00-33

Unavailable

12

. SPRING, TORSION

90508-10012-00

Unavailable

13

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

14

BOLT(3JP)

97017-06010-00

$3.76

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

DAMPER, SEAT

214-24724-00-00

Unavailable

17

BAND, SEAT FITTING

(214-24778-00-00)

Unavailable

18

HINGE, SEAT

248-24726-00-33

Unavailable

19

NUT (682)

95380-10700-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
