1970 Yamaha CT1B (CT1B) OIL Pump Diagram

← All diagrams

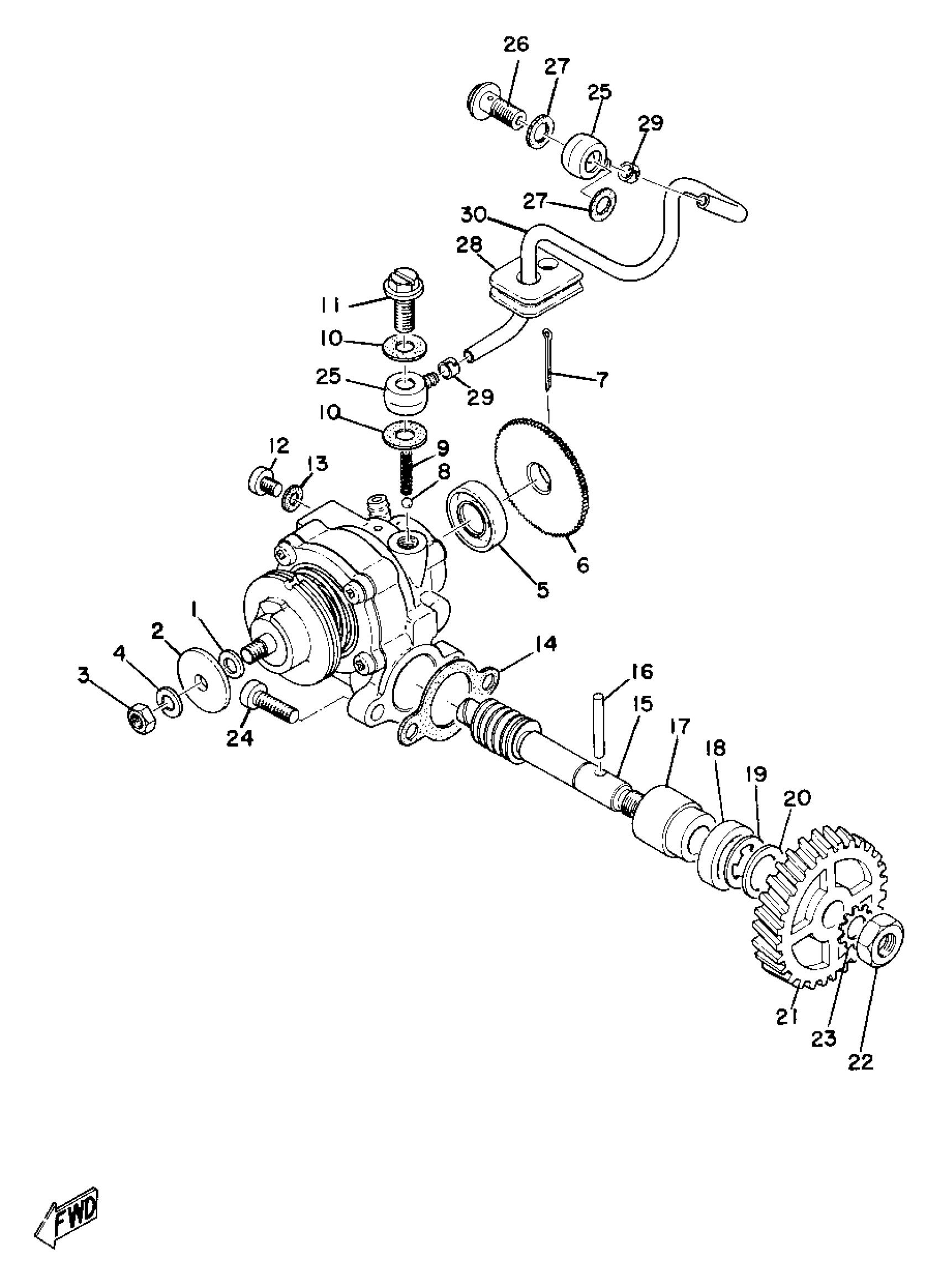

Find the part on the OIL Pump diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CT1B (CT1B) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

1
Out of stock

2

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

3

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

7

. PIN, COTTER

91401-12018-00

1
Out of stock

8

BALL

93505-32002-00

1

$2.22

In stock

9

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

10

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

11

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

12

SCREW, BIND

98980-04008-00

1

$3.26

In stock

13

GASKET 137131870000

90430-04004-00

1
Out of stock

14

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

15

SHAFT, WORM

(214-13175-01-00)

1
Out of stock

16

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

17

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

18

OIL SEAL (10X22X7-137)

93101-10002-00

—

$6.68

In stock

19

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock

20

WASHER, PLATE(52H)

90201-105J4-00

—

$6.88

In stock

21

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

22

. NUT

95380-08700-00

1

$3.07

In stock

23

WASHER (688)

92990-08400-00

1

$3.46

In stock

24

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

25

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

26

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

27

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

28

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

29

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

30

HOSE (L700)

90445-05M07-00

1
Out of stock
