1970 Yamaha CT1B (CT1B) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

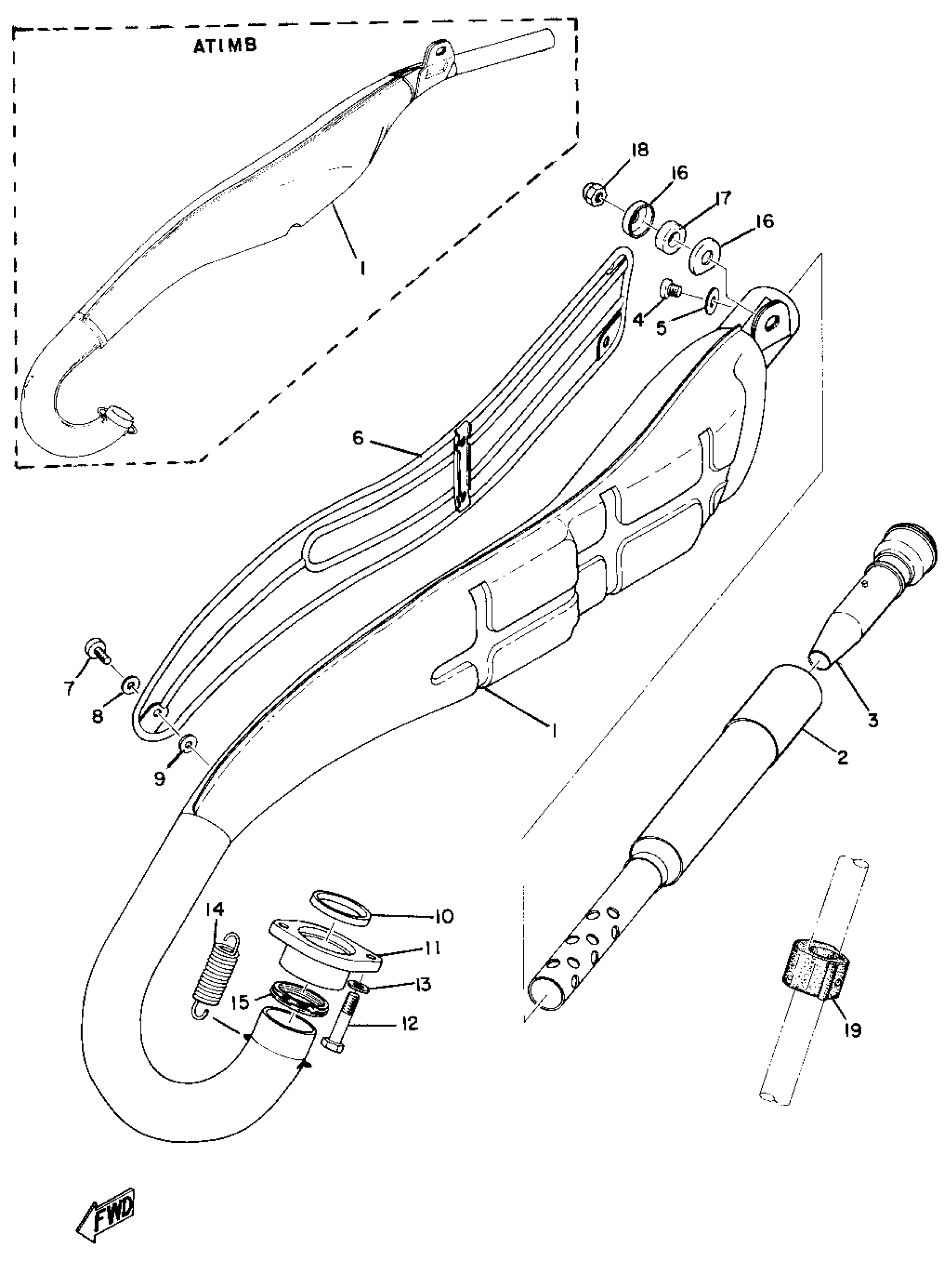

1970 Yamaha CT1B (CT1B) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(248-14610-70-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(261-14610-30-00)

1
Out of stock

2

. SILENCER, EXHAUST

214-14753-01-00

1
Out of stock

3

. PIPE, OUTLET

261-14752-30-00

1
Out of stock

4

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

6

PROTECTOR, MUFF 1

(248-14718-30-00)

1
Out of stock

7

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

8

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

9

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

10

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

11

NUT, RING

(248-14612-30-00)

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

15

GASKET

248-14623-10-00

1

$6.22

In stock

16

PLATE, MUFFLER

(248-14794-00-00)

1
Out of stock

17

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

18

NUT, CROWN

95303-08800-00

—

$7.52

In stock

19

GASKET KIT AT1

(248-00000-20-00)

1
Out of stock

19

DAMPER, MUFFLER

(248-14747-01-00)

1
Out of stock
