Description

Price

1

KICK CRANK ASSY

3V6-15620-00-00

Unavailable

2

LEVER, KICK

(214-15612-01-00)

Unavailable

3

SPRING COMPRESSION214156250100

90504-18009-00

$7.49

4

WASHER, KICK LEVER

214-15616-00-00

$6.99

5

CIRCLIP 214156170000

93440-11029-00

$7.49

6

COVER, KICK LEVER

214-15618-00-00

$7.99

7

BOLT, HEXAGON

97013-08030-00

$2.49

8

KICK AXLE ASSEMBLY

315-15660-01-00

Unavailable

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

10

CIRCLIP(1AR)

99009-20400-00

$8.49

11

COVER, SPRING

(214-15676-00-00)

Unavailable

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

GUIDE, SPRING

(214-15664-00-00)

Unavailable

14

CIRCLIP(4A6)

99009-30400-00

$8.49

15

HOLDER, KICK GEAR

248-15654-00-00

$8.99

16

GEAR, KICK

251-15641-01-00

Unavailable

17

CLIP 315156870000

90468-26048-00

Unavailable

18

STOPPER, KICK SPRING

248-15668-00-00

Unavailable

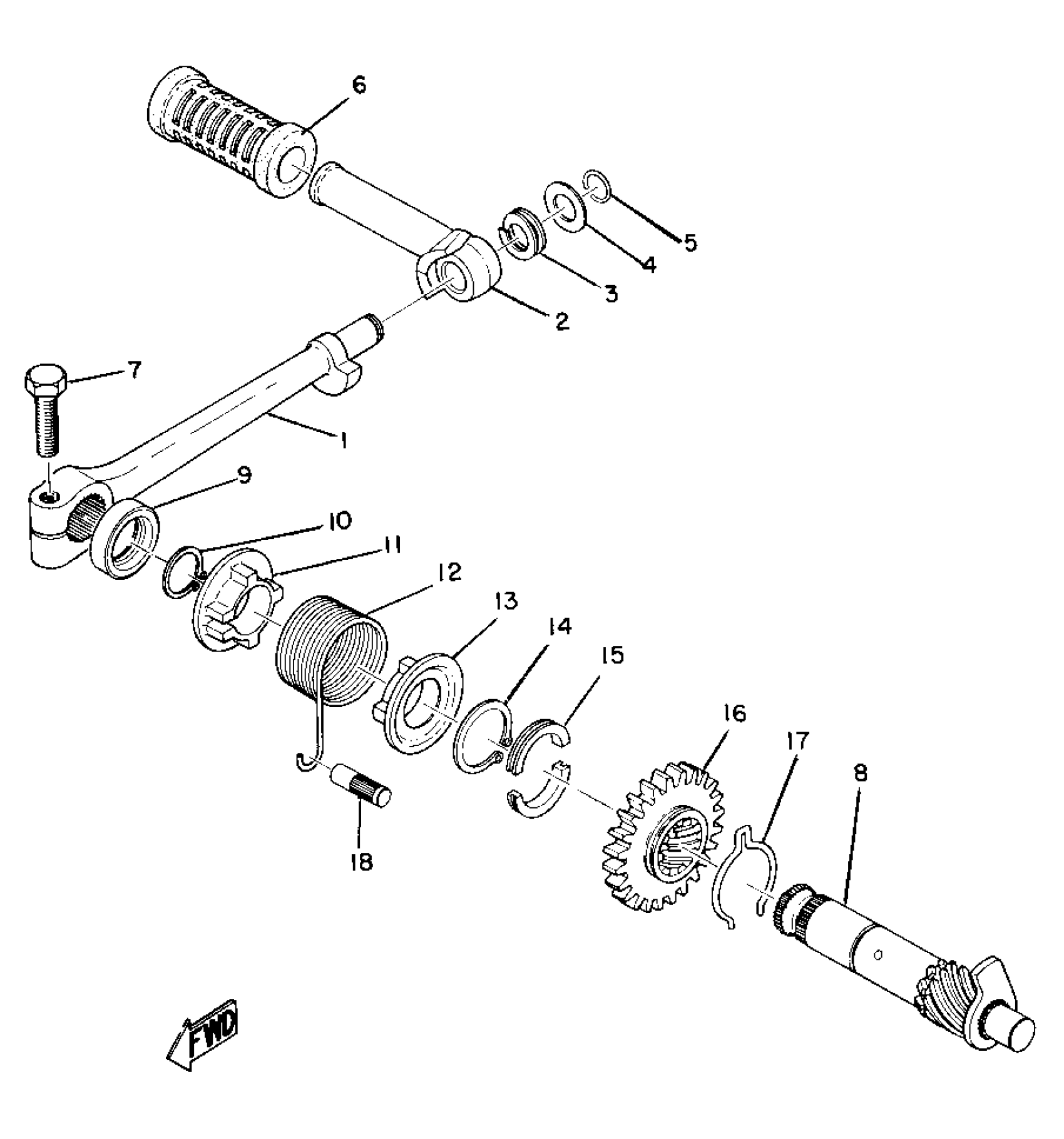

Yamaha CT1B (CT1B) 1970 KICK STARTER Diagram

KICK CRANK ASSY

LEVER, KICK

SPRING COMPRESSION214156250100

WASHER, KICK LEVER

CIRCLIP 214156170000

COVER, KICK LEVER

BOLT, HEXAGON

KICK AXLE ASSEMBLY

OIL SEAL (20X30X4.5-146)

CIRCLIP(1AR)

COVER, SPRING

SPRING TORSION 304156650000

GUIDE, SPRING

CIRCLIP(4A6)

HOLDER, KICK GEAR

GEAR, KICK

CLIP 315156870000

STOPPER, KICK SPRING
