1970 Yamaha CT1B (CT1B) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

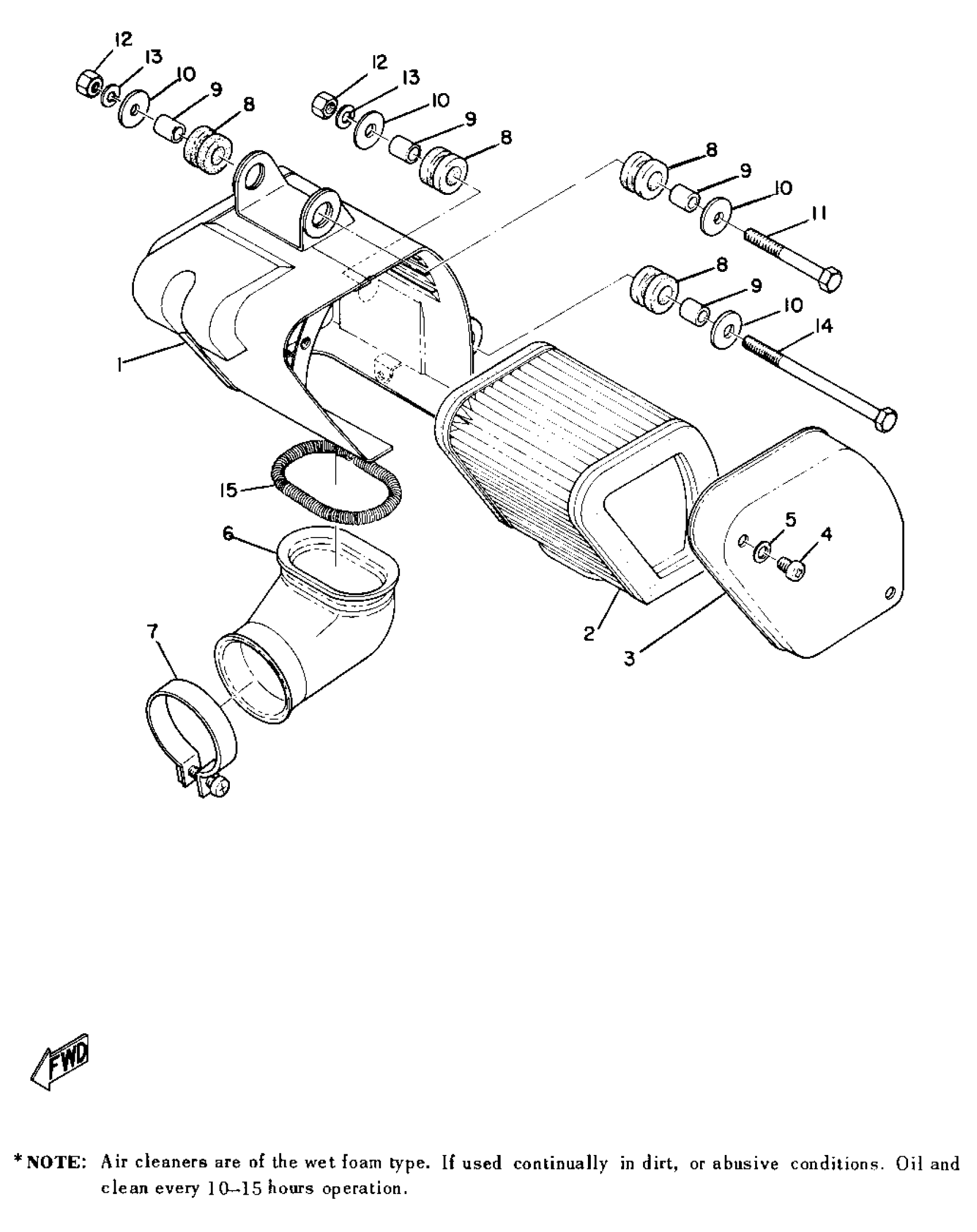

1970 Yamaha CT1B (CT1B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(248-14411-01-33)

1
Out of stock

2

ELEMENT, AIR CLNR

248-14451-00-00

1
Out of stock

3

CAP, CLEANER CASE 1

(248-14412-01-33)

1
Out of stock

4

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

5

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

6

JOINT, AIR CLNR 1

248-14453-00-00

1
Out of stock

7

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

8

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

9

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

BOLT(62J)

97013-06070-00

—

$3.37

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT(3GG)

97017-06090-00

1
Out of stock

15

1

$7.75

In stock
← Fuel Tank Clutch →
