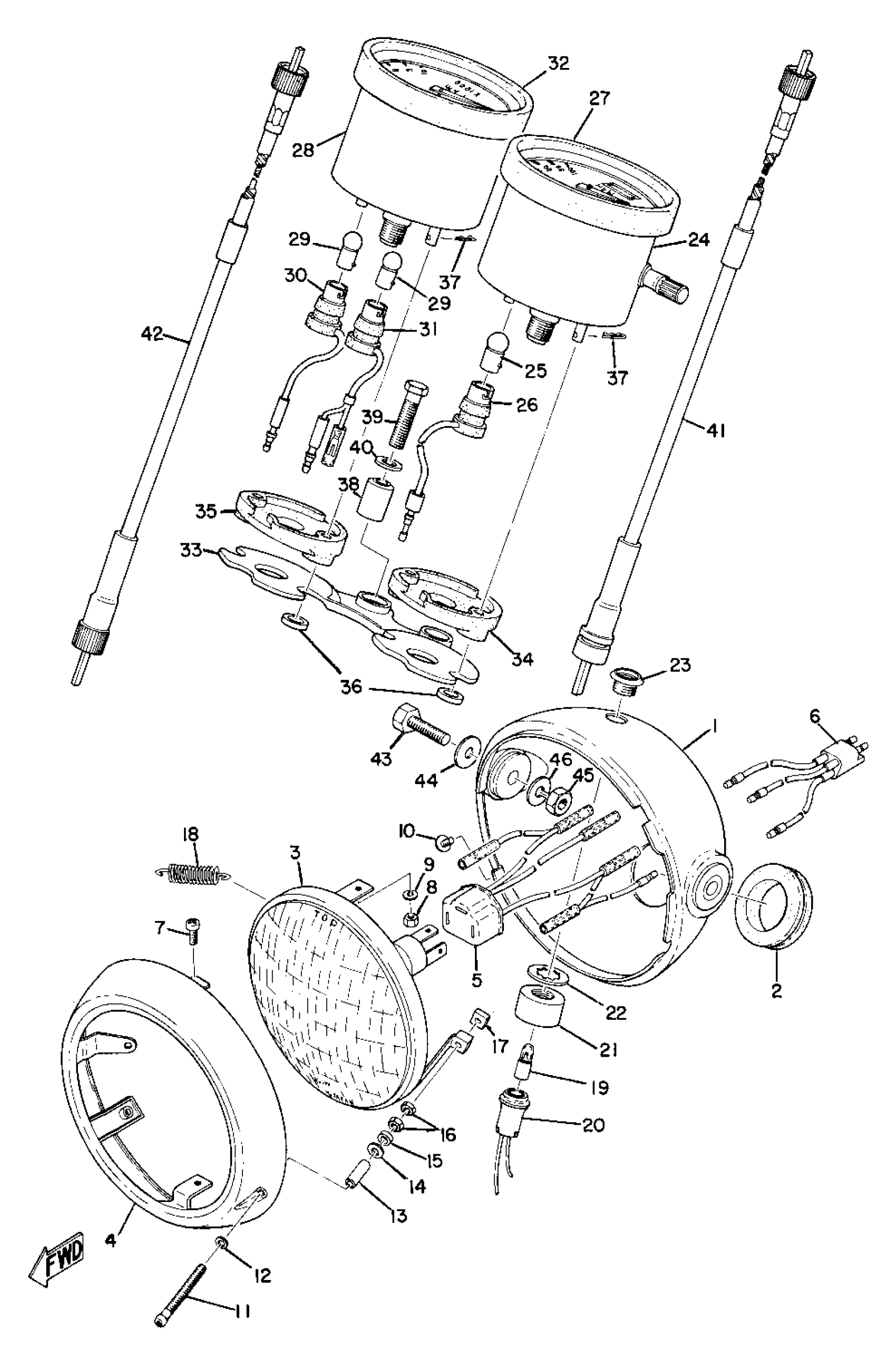

Yamaha CT1B (CT1B) 1970 HEAD LAMP, SPEEDOMETER & TACHOMETER (AT1B) Diagram

#

Description
Price

1

BODY ASSEMBLY

(261-84330-60-36)

Unavailable

2

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

Unavailable

3

LENS ASSEMBLY

261-84320-61-00

Unavailable

4

. RIM, HEADLIGHT

261-84315-61-00

Unavailable

5

SOCKET, CORD

261-84312-61-00

Unavailable

6

CORD, HEADLIGHT

(214-84159-61-00)

Unavailable

7

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

8

NUT(6TA)

95307-04600-00

$8.49

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

11

SCREW, RIM ADJUSTING

(198-84331-60-00)

Unavailable

12

WASHER,SPECIAL

233-84127-60-00

$3.69

13

. COLLAR, SCREW

233-84133-60-00

Unavailable

14

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

15

. SPACER

132-84328-60-00

Unavailable

16

NUT(6TA)

95307-04600-00

$8.49

17

NUT, ADJUST

198-84334-60-00

Unavailable

18

SPRING

(132-84335-60-00)

Unavailable

19

BULB

256-84347-00-00

Unavailable

20

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

Unavailable

21

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

22

WASHER, IN.TOOTH

(92901-12300-00)

Unavailable

23

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

24

SPEEDOMETER ASSEMBLY

(261-83570-41-00)

Unavailable

25

BULB (12V-3.4W)

123-83516-21-00

Unavailable

26

SOCKET, METER

(235-83536-21-00)

Unavailable

27

. DAMPER

336-83513-00-00

Unavailable

28

TACHOMETER ASSEMBLY

(261-83540-20-00)

Unavailable

29

BULB (12V-3.4W)

123-83516-21-00

Unavailable

30

SOCKET, METER

(235-83536-21-00)

Unavailable

31

SOCKET, NEUTRAL

(261-83537-20-00)

Unavailable

32

. DAMPER

336-83513-00-00

Unavailable

33

BRACKET, METER

(214-83519-00-33)

Unavailable

34

DAMPER

214-83523-00-00

Unavailable

35

DAMPER

237-83523-00-00

Unavailable

36

WASHER 214835240000

90209-05029-00

Unavailable

37

CLIP (156-83525-00)

90468-10050-00

Unavailable

38

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

Unavailable

39

BOLT(JF7)

97080-06030-00

Unavailable

40

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

41

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

Unavailable

42

TACHOMETER CABLE ASSY

3T2-83560-00-00

Unavailable

43

BOLT (682)

97013-08025-00

Unavailable

44

WASHER, PLAIN

92990-08200-00

Unavailable

45

NUT(6L2)

95333-08600-00

Unavailable

46

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
