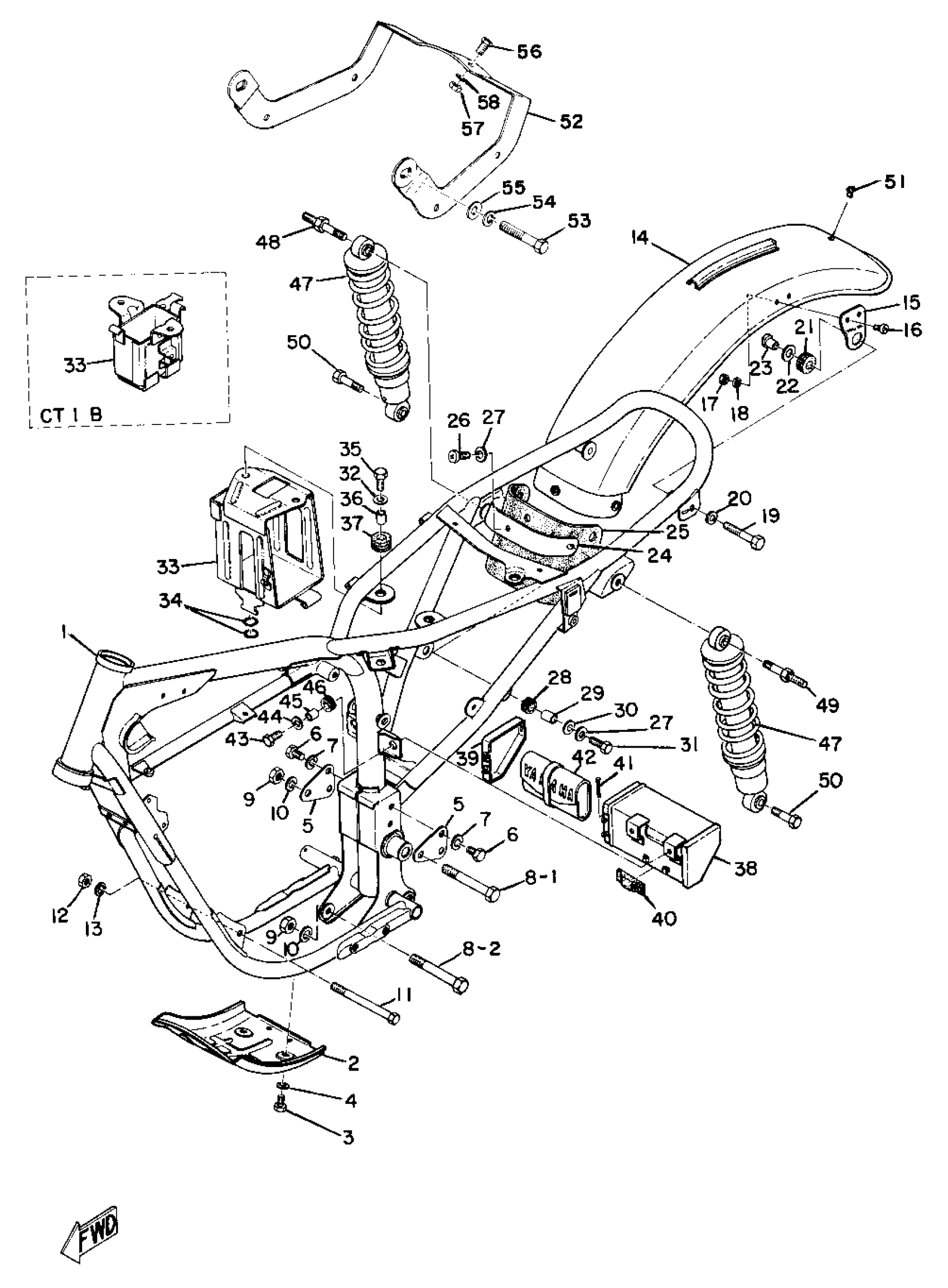

Yamaha CT1B (CT1B) 1970 FRAME, REAR CUSHION & REAR FENDER Diagram

#

Description
Price

1

FRAME

(261-21110-02-33)

Unavailable

1

BOLT,HEXAGON

97027-10095-00

Unavailable

2

PROTECTOR, ENGINE

(248-21471-00-33)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

STAY, ENGINE 2

(248-21315-00-00)

Unavailable

6

BOLT, HEXAGON

97013-08016-00

$1.01

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

BOLT, HEXAGON

97321-10090-00

Unavailable

9

NUT(3BM)

95314-10600-00

$2.39

10

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

11

BOLT, FLANGE

95817-08100-00

$5.60

12

NUT(6L2)

95333-08600-00

$2.49

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

FENDER, REAR

(248-21610-00-35)

Unavailable

15

STAY, FENDER 1

(248-21613-00-91)

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT

97013-08045-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

DAMPER, FRONT

168-21638-00-00

Unavailable

22

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

23

NUT, REAR FENDER

248-21635-00-00

Unavailable

24

BAND, FLAP

(248-21622-00-33)

Unavailable

25

GUARD, MUD

(248-21629-00-00)

Unavailable

26

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

GROMMET 839774310000

90480-14023-00

Unavailable

29

COLLAR (J10)

90387-06026-00

Unavailable

30

WASHER, PLATE

90201-06380-00

Unavailable

31

BOLT, HEXAGON

97017-06025-00

Unavailable

32

WASHER PLATE 248217570000

90201-06074-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

BOX, BATT.

(248-21240-00-33)

Unavailable

33

BOX, BATT.

(261-21240-00-33)

Unavailable

34

O-RING (137)

93210-12014-00

Unavailable

35

BOLT, HEXAGON

97017-06025-00

Unavailable

36

COLLAR (J10)

90387-06026-00

Unavailable

37

DAMPER

248-21717-00-00

Unavailable

38

BOX, TOOL

(248-21170-00-33)

Unavailable

39

CAP, TOOL BOX

(248-21399-00-00)

Unavailable

40

DAMPER

(248-21746-00-00)

Unavailable

41

PIN, COTTER(6L5)

91490-25030-00

Unavailable

42

TOOL KIT

(315-W2810-10-00)

Unavailable

43

BOLT, HEXAGON

97017-06020-00

Unavailable

44

WASHER, PLATE

90201-06380-00

Unavailable

45

COLLAR (J10)

90387-06026-00

Unavailable

46

GROMMET 839774310000

90480-14023-00

Unavailable

47

SHOCK ABS ASSY, REAR

291-22210-71-00

Unavailable

48

BOLT, STUD

(90116-10116-00)

Unavailable

49

BOLT ROUND 214222410000

90106-10025-00

Unavailable

49

BOLT, STUD

(90116-10115-00)

Unavailable

50

BOLT, DOME HEAD

(90106-10026-00)

Unavailable

51

DAMPER 2

5A8-21639-00-00

Unavailable

52

BRACKET, LICENSE

(263-21685-00-35)

Unavailable

53

BOLT, HEXAGON

97013-08050-00

Unavailable

54

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

55

WASHER, PLAIN

92990-08200-00

Unavailable

56

BOLT (661)

97013-06012-00

$5.60

57

NUT, HEXAGON

95380-06600-00

Unavailable

58

WASHER, SPRING

92995-06100-00

Unavailable
