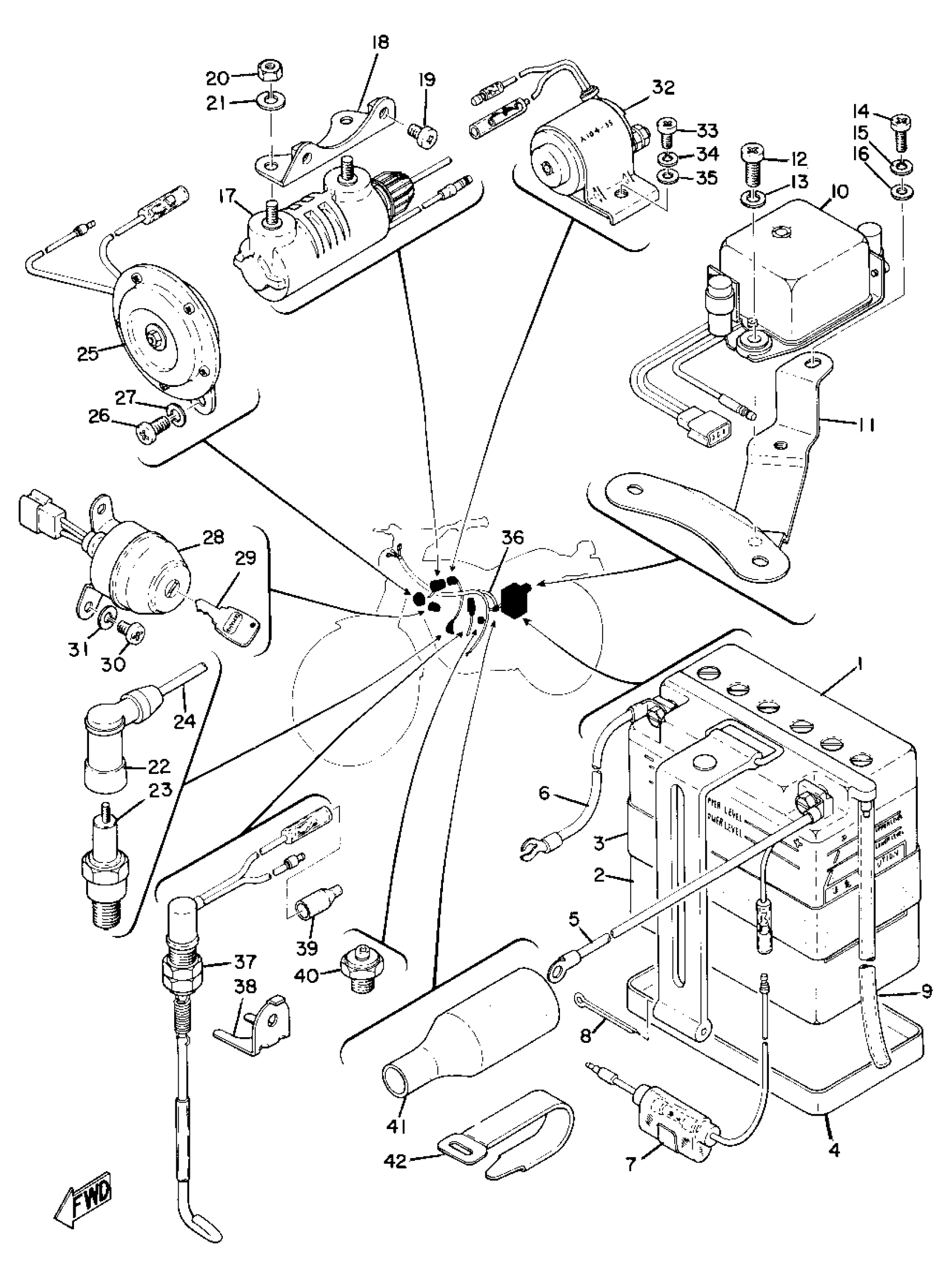

Yamaha CT1B (CT1B) 1970 ELECTRICAL (AT1-B) Diagram

#

Description
Price

1

CAP, BATTERY

(104-82111-20-00)

Unavailable

1

FUSE

1A0-82161-00-00

$7.99

1

12N73BY YUASA BATTERY

12N-73BY0-00-00

Unavailable

2

BAND, BATTERY

261-82131-00-00

Unavailable

3

BAND, BATTERY

1UA-82124-00-00

Unavailable

4

SEAT, BATTERY

(173-82122-00-00)

Unavailable

5

WIRE, PLUS LEAD

(261-82115-01-00)

Unavailable

6

WIRE, MINUS LEAD

(261-82116-01-00)

Unavailable

7

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

8

PIN, COTTER

91490-40045-00

$8.49

9

PIPE,BREATHER

2RH-21826-00-00

Unavailable

10

VOLTAGE REG ASSEMBLY

444-81910-10-00

Unavailable

11

PLATE, REG FITTING

(261-81915-00-33)

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable

17

IGNITION COIL ASSEMBLY

254-82310-60-00

Unavailable

18

BRACKET, IGN COIL

(248-82316-00-00)

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

PLUG CAP ASSY

56J-82370-00-00

Unavailable

23

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

24

CORD, HIGHT TENSION 1

137-82341-01-00

Unavailable

25

HORN

326-83371-21-00

Unavailable

26

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

MAIN SWITCH ASSEMBLY

261-82508-10-00

Unavailable

30

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

STARTER SWITCH ASSEMBLY

261-81940-11-00

Unavailable

33

SCREW PAN HEAD

98580-06010-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

36

WIRE HARNESS ASSEMBLY

(261-82590-12-00)

Unavailable

37

STOP SWITCH ASSEMBLY

248-82530-02-00

Unavailable

38

STAY, STOP SWITCH

(248-82539-00-00)

Unavailable

39

COVER, CONNECTER

(248-82599-00-00)

Unavailable

40

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

41

COVER, CONNECTER

(214-82599-00-00)

Unavailable

42

BAND, SWITCH CORD

437-83936-01-00

Unavailable
