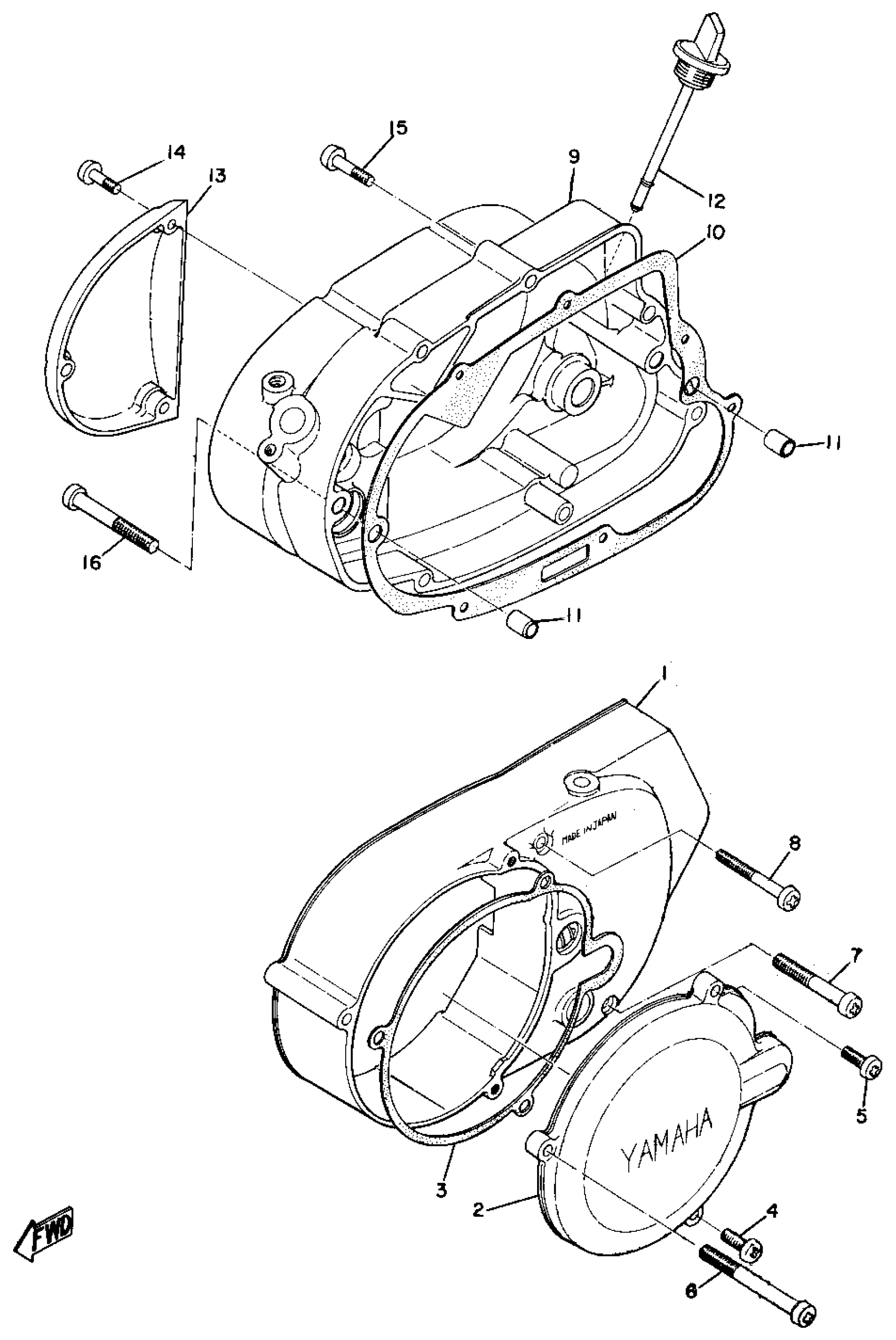

Yamaha CT1B (CT1B) 1970 CRANKCASE COVER Diagram

#

Description
Price

1

NO LONGER AVAILABLE

248-15410-01-00

Unavailable

2

COVER, GENERATOR

248-15415-01-00

Unavailable

2

COVER, GENERATOR

261-15415-61-00

Unavailable

3

GASKET 1

248-15455-09-00

Unavailable

4

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

5

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

6

SCREW PAN HEAD

98580-06570-00

$18.99

7

SCREW PAN HEAD

98580-06550-00

$8.49

8

SCREW, BIND (JH1)

98580-06560-00

Unavailable

9

COVER, CRANKCASE R

(248-15421-01-00)

Unavailable

10

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

$30.99

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

PLUG, OIL LEVEL

180-15362-00-00

$8.99

13

COVER, OIL PUMP

(248-15416-01-Y4)

Unavailable

14

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

15

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

16

GASKET KIT AT1

(248-00000-20-00)

Unavailable

16

SCREW, BIND (JH1)

98580-06560-00

Unavailable
