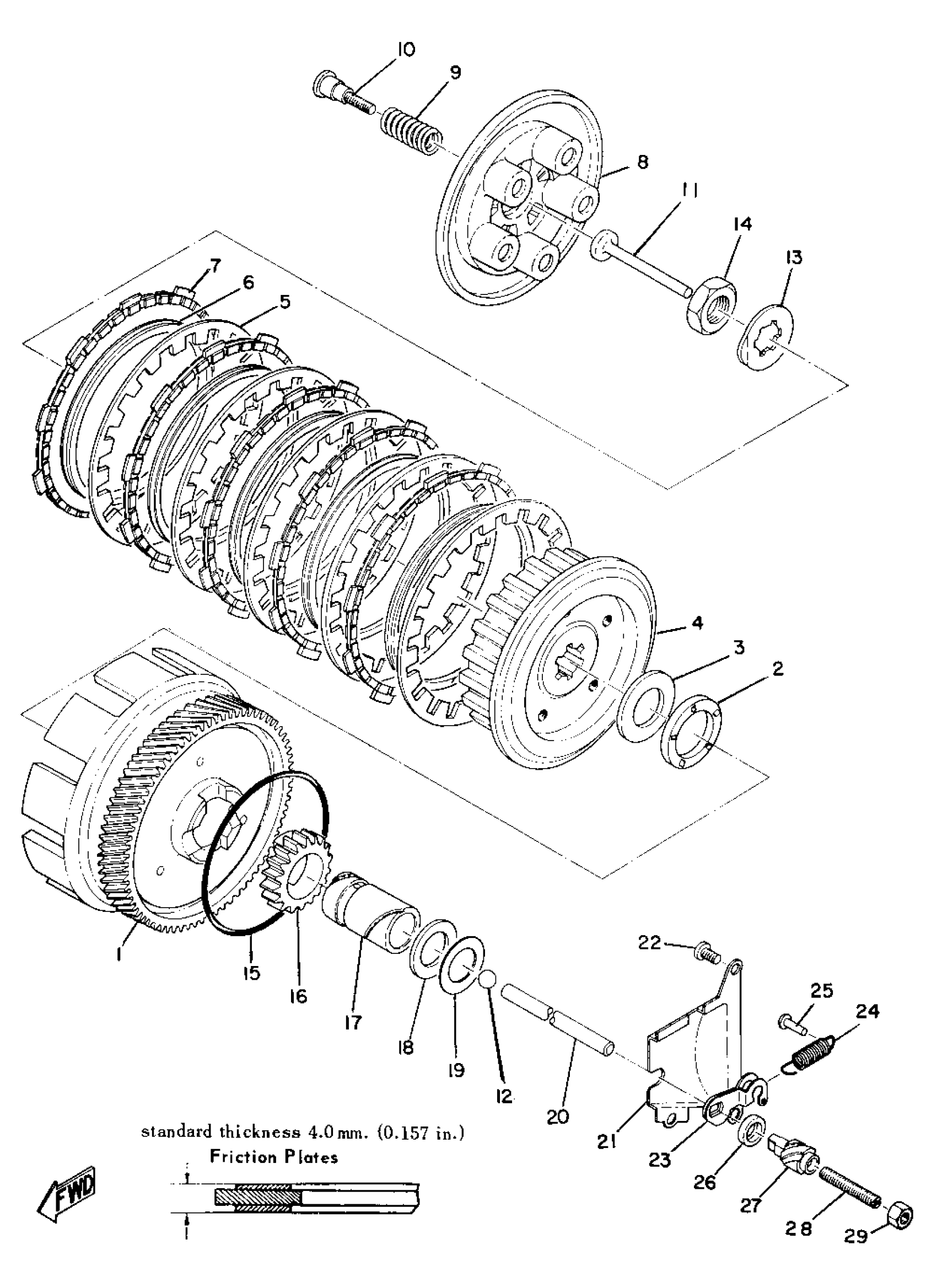

Yamaha CT1B (CT1B) 1970 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(248-16150-02-00)
Unavailable
1
CLUTCH ASSEMBLY
(248-16301-02-00)
Unavailable
2
. BEARING, FLAT #41
93341-22603-00
Unavailable
3
. PLATE, THRUST 1
174-16154-00-00
Unavailable
4
. BOSS, CLUTCH
174-16371-01-00
Unavailable
10
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
15
O-RING (173)
93210-85075-00
Unavailable
16
GEAR, KICK PINION
251-15631-01-00
Unavailable
17
COLLAR (174-16181-00)
90387-20439-00
Unavailable
18
PLATE, THRUST 2
174-16164-00-00
Unavailable
19
PLATE, THRUST 2
248-16164-01-00
Unavailable
20
ROD, PUSH 2
248-16357-00-00
Unavailable
21
SEAL, DUST
(248-18428-00-00)
Unavailable
22
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
23
LEVER, PUSH
241-16342-00-00
Unavailable
24
SPRING TENSION 132163450000
90506-10019-00
Unavailable
25
HOOK, SPRING
132-16346-00-00
Unavailable
26
SEAL 0IL (2V7)
93104-10085-00
Unavailable
27
SCREW, PUSH
241-16341-01-00
Unavailable
28
BOLT SET 241163430000
90113-06013-00
Unavailable
29
NUT(650)
95380-06700-00
Unavailable
