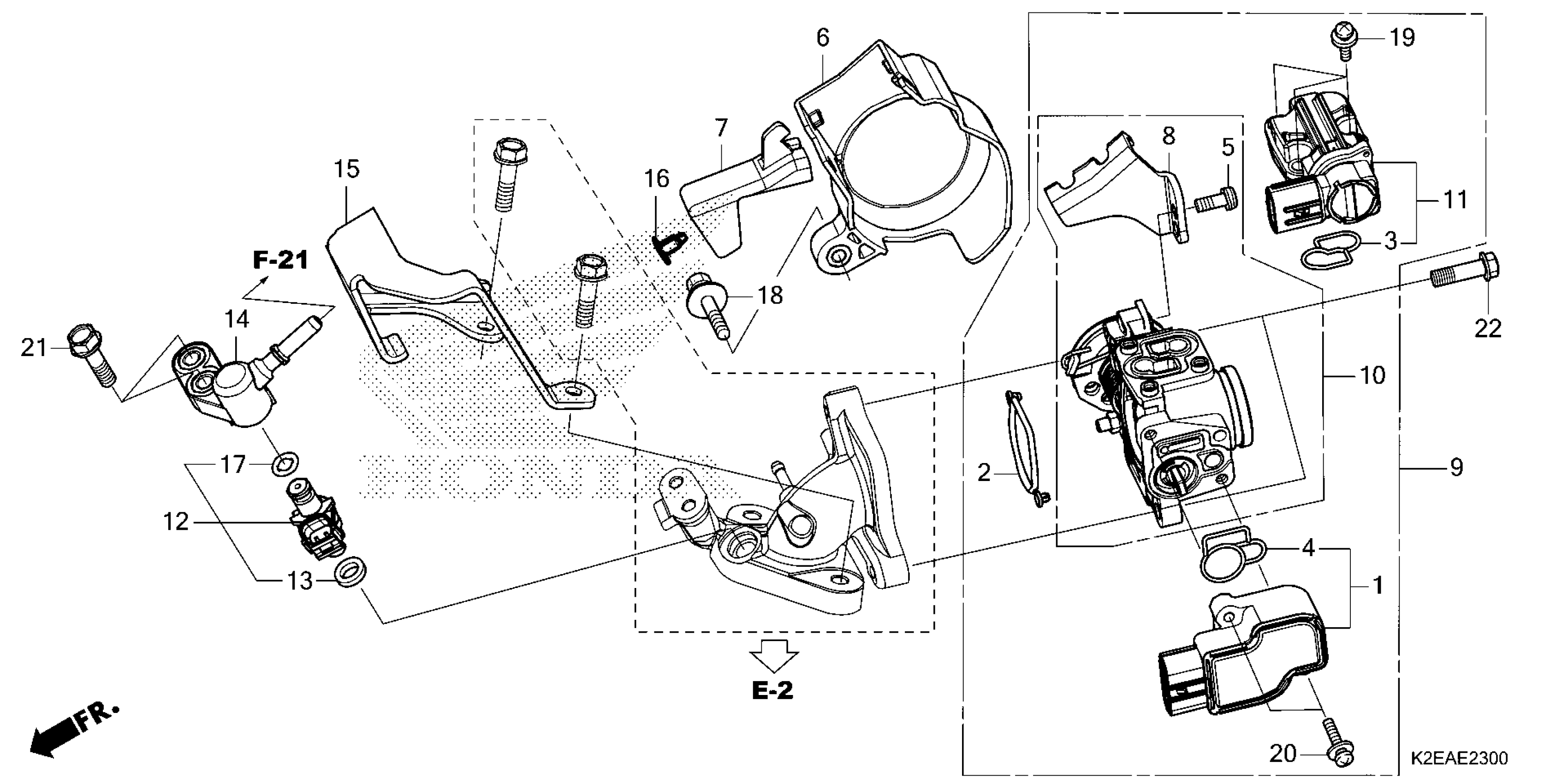

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 THROTTLE BODY@FUEL INJECTOR Diagram

SENSOR SET

16060-K1L-D01

$90.52

O-RING, THROTTLE BODY

16075-K35-V01

$5.07

O-RING

16076-K35-V01

$2.69

O-RING

16077-KSS-J01

$6.21

SCREW-WASHER (5X12) (TORX)

16081-KVS-J01

$7.70

COVER A, THROTTLE

16150-K2E-T10

$3.51

COVER B, THROTTLE

16160-K2E-T10

$2.46

STAY, WIRE

16169-K56-N01

$60.87

BODY ASSY. (GQY4A A)

16400-K0G-T21

$232.41

BODY SET

16410-K0G-T21

$83.51

VALVE SET, IDLE AIR CONTROL

16430-K0G-901

$59.70

INJECTOR ASSY., FUEL

16450-K60-T71

$41.41

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

JOINT, INJECTOR

17560-K0G-T20

$40.26

STAY, INJECTOR GUARD

17570-K2E-T10

$10.10

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

BOLT-WASHER (5X25)

93414-05025-08

$1.49

SCREW-WASHER (4X10)

93891-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93891-04010-18.

93891-04010-08

$1.49

SCREW-WASHER (4X16)

93891-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93891-04016-18.

93891-04016-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
