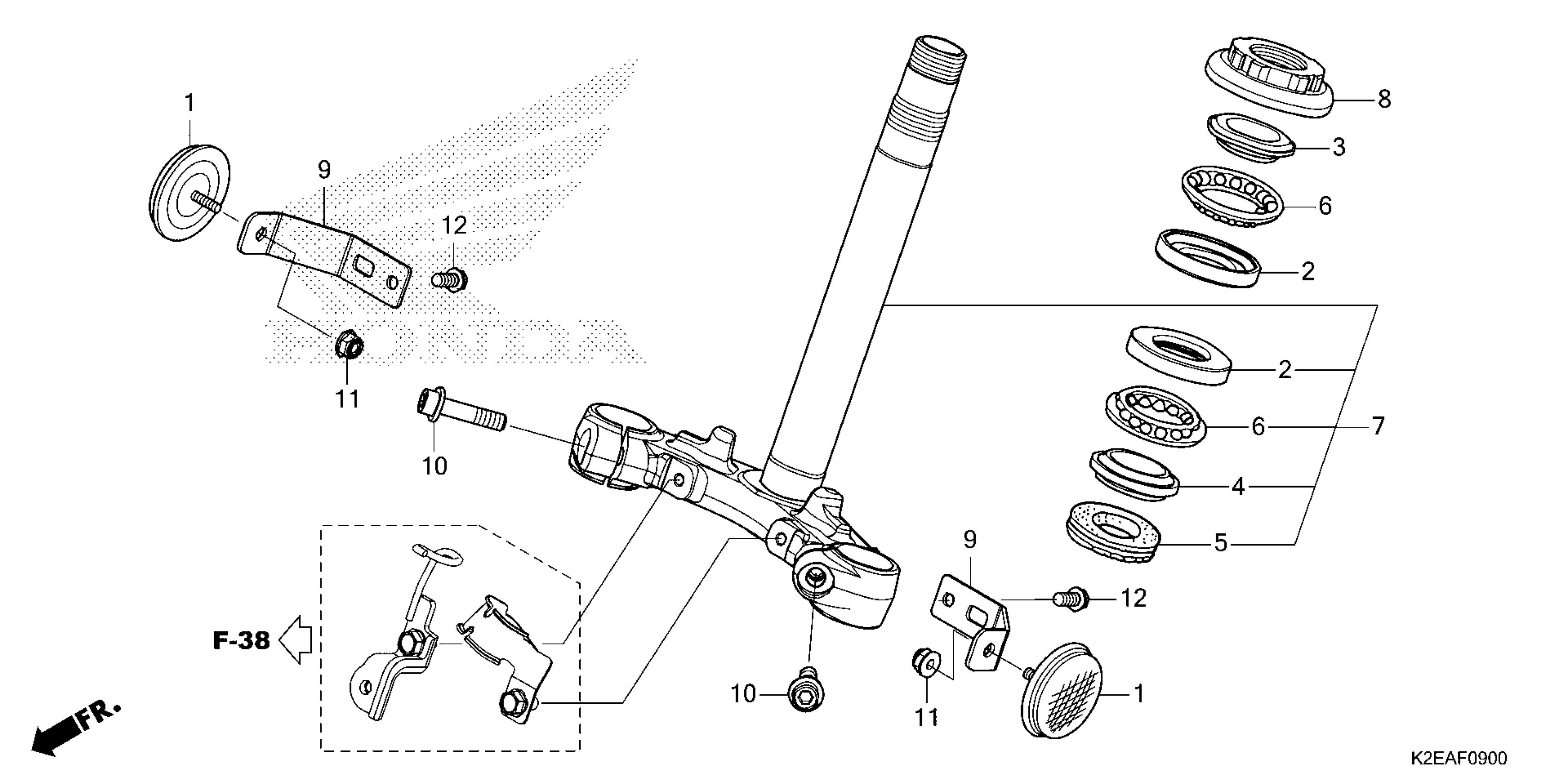

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 STEERING STEM Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

2

RACE, STEERING TOP BALL

50301-KTR-900

$6.36

3

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

4

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

4

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

5

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

6

BALL ASSY., STEERING STEEL

53215-KTR-900

$14.34

7

STEM SUB-ASSY., STEERING (NOT AVAILABLE)

53219-K2E-T00

$126.13

8

THREAD, STEERING HEAD TOP

53220-KE8-010

$31.86

9

STAY, FR. REFLECTOR

61102-K2E-J10

$2.07

10

BOLT, FLANGE SOCKET (8X32)

90160-K26-900

$1.49

11

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

12

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
