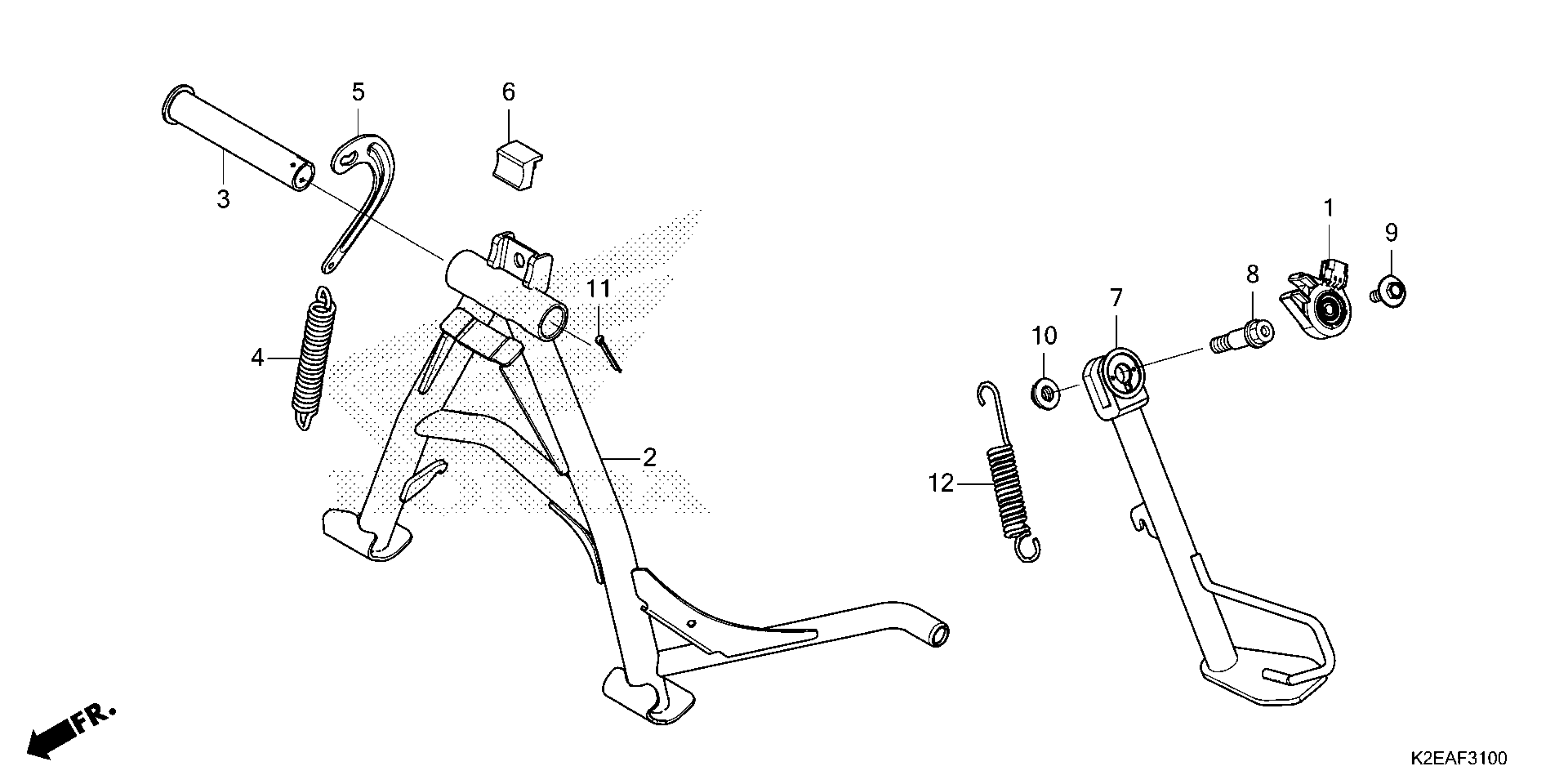

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 STAND Diagram

#

Description

Price

1

SWITCH, SIDE STAND

35700-K0J-N01

$12.56

1

SWITCH ASSY., SIDE STAND (PANASONIC)

35700-K1A-N01

$13.47

2

STAND, MAIN

50500-K2E-J10

$37.84

3

SHAFT, MAIN STAND

50512-KYZ-910

$5.94

4

SPRING, MAIN STAND

50520-K0G-900

$5.69

5

HOOK, MAIN STAND SPRING

50523-K0G-900

$3.15

6

RUBBER, STAND STOPPER

50524-397-000

$3.67

7

BAR, SIDE STAND

50530-K2E-J10

$17.32

8

BOLT, SIDE STAND PIVOT

90108-KZL-860

$3.21

9

BOLT, SPECIAL (6X16)

90132-KYJ-960

$0.88

10

NUT, SIDE STAND

90203-KVB-900

$1.60

11

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

11

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

11

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.96

12

SPRING A, SIDE STAND

95014-72102

$2.62
