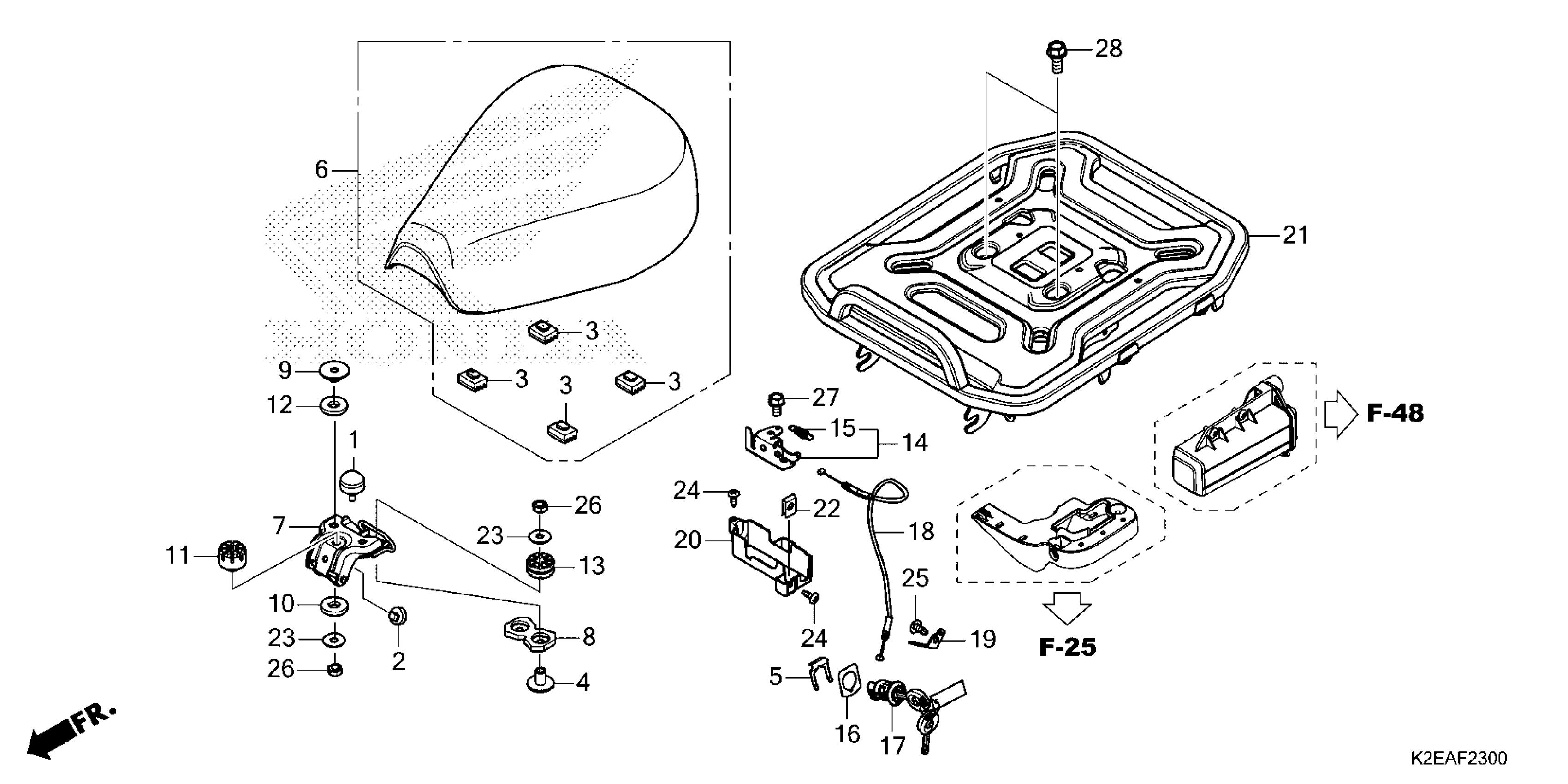

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 SEAT@LUGGAGE CARRIER Diagram

#

Description
Price

1

RUBBER

17513-K67-900

$2.02

2

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

3

RUB, SEAT MOUNTING

50524-K2E-J10

$4.30

4

COLLAR

61105-MFN-D00

$12.15

5

PLATE, LOCK KEY SETTING

75581-MGP-D60

$4.07

6

SEAT, SINGLE (TYPE1)

77100-K2E-J11ZA

$123.92

7

HINGE, SEAT

77110-K2E-J10

$20.44

8

RUBBER, SEAT HINGE

77116-K88-J40

$3.75

9

COLR, SEAT MOUNTING

77201-K84-900

$2.30

10

WASHER B, RUBBER

77206-K2W-J10

$1.49

11

RUBBER, SEAT CUSHION

77206-KEV-940

$2.67

12

RUBBER B, SEAT MOUNTING

77207-GN5-910

$2.56

13

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

14

LOCK, SEAT

77220-K2E-T00

$21.38

15

SPRING, SEAT CATCH

77223-K76-T60

$2.70

16

WASHER, SEAT LOCK

77236-K0F-T00

$1.49

17

KEY, SEAT LOCK

77239-K2E-T02

$233.49

18

CABLE, SEAT LOCK

77240-K2E-T01

$4.57

19

STAY, SEAT LOCK KEY

77241-K2E-T00

$3.62

20

COVER, SEAT CATCH

77244-K2E-T00

$14.75

21

CARRIER *GY157P*

81200-K2E-T00ZC

$295.36

21

CARRIER *NH1*

81200-K2E-T00ZB

$244.74

22

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

23

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

24

SCREW, TAPPING (4X12)

93903-24310

$1.49

25

SCREW, TAPPING (5X12)

93903-35210

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

28

BOLT, FLANGE (8X18)

95701-08018-00

$1.80
