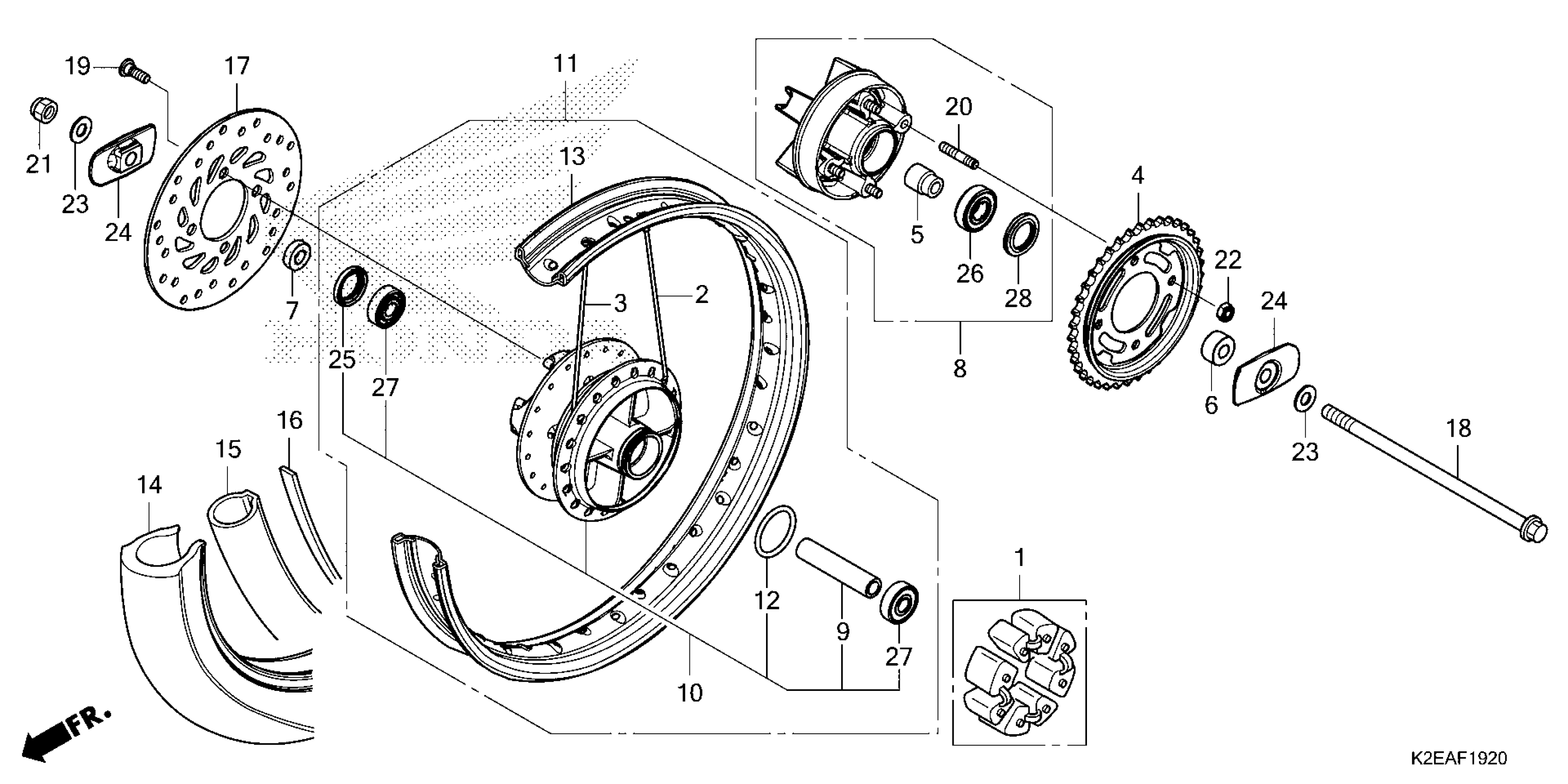

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-GCR-000

$26.06

2

SPOKE SET (B9X161.5) (OUTSIDE)

06420-K2E-T00

$3.15

3

SPOKE SET (B9X161.5) (INSIDE)

06421-K2E-T00

$3.15

4

SPROCKET (38T)

41200-K2E-T11

$30.76

5

SLEEVE, RR. WHEEL (NOT AVAILABLE)

42303-KBA-900

$14.03

6

COLLAR, RR. WHEEL SIDE

42304-K2E-T00

$7.13

7

COLLAR, R. RR. WHEEL SIDE

42313-KTM-750

$4.04

8

FLANGE SUB-ASSY., FINAL DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)

42615-K2E-T00ZA

$106.99

9

COLLAR, RR. AXLE DISTANCE

42620-KW7-880

$12.97

10

HUB SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42635-K2E-T00ZA

$108.39

11

WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-K2E-T01ZA

$255.74

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.21

13

RIM, RR. WHEEL (17X1.60)

42701-K2E-T01

$73.59

14

TIRE, RR. (80/90-17 M/C 50P) (IRC)

42711-K2E-T01

$44.03

15

TUBE, TIRE

42712-K2E-T02

$20.98

16

FLAP, TIRE (17) (INOUE) FLAP, TIRE (17) (NITTO)

42713-102-005

$6.23

17

DISK, RR. BRAKE (YUTAKA) (NOT AVAILABLE)

43351-KTM-N31

Unavailable

17

DISK, RR. BRAKE (SUNSTAR)

43351-KTM-N32

$89.09

18

AXLE, FR. WHEEL (FOR RR.)

44301-K01-900

$10.54

19

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

20

BOLT, STUD (8X19.5) (NOT AVAILABLE)

90128-KFM-900

$0.90

21

NUT, U (12MM)

90306-K0G-901

$2.95

22

NUT, U (8MM) (FUJI SEIMITSU)

90309-KPH-971

$1.51

23

WASHER, RR. AXLE

90501-K0G-900

$1.44

24

PLATE, SWINGARM SIDE

90559-K0G-900

$11.16

25

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.32

25

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.32

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V04.

91051-K35-V03

$17.14

27

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01.

91053-K03-H02

$6.86

27

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

$6.86

27

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-N41.

91053-K03-H02

$6.86

27

BEARING, RADIAL BALL (6301U L) (NSK) This part replaces 91055-KVS-F01.

91055-KVS-F02

$8.47

27

BEARING, RADIAL BALL (6301U L) (NSK)

91055-KVS-F02

$8.47

28

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$0.91
