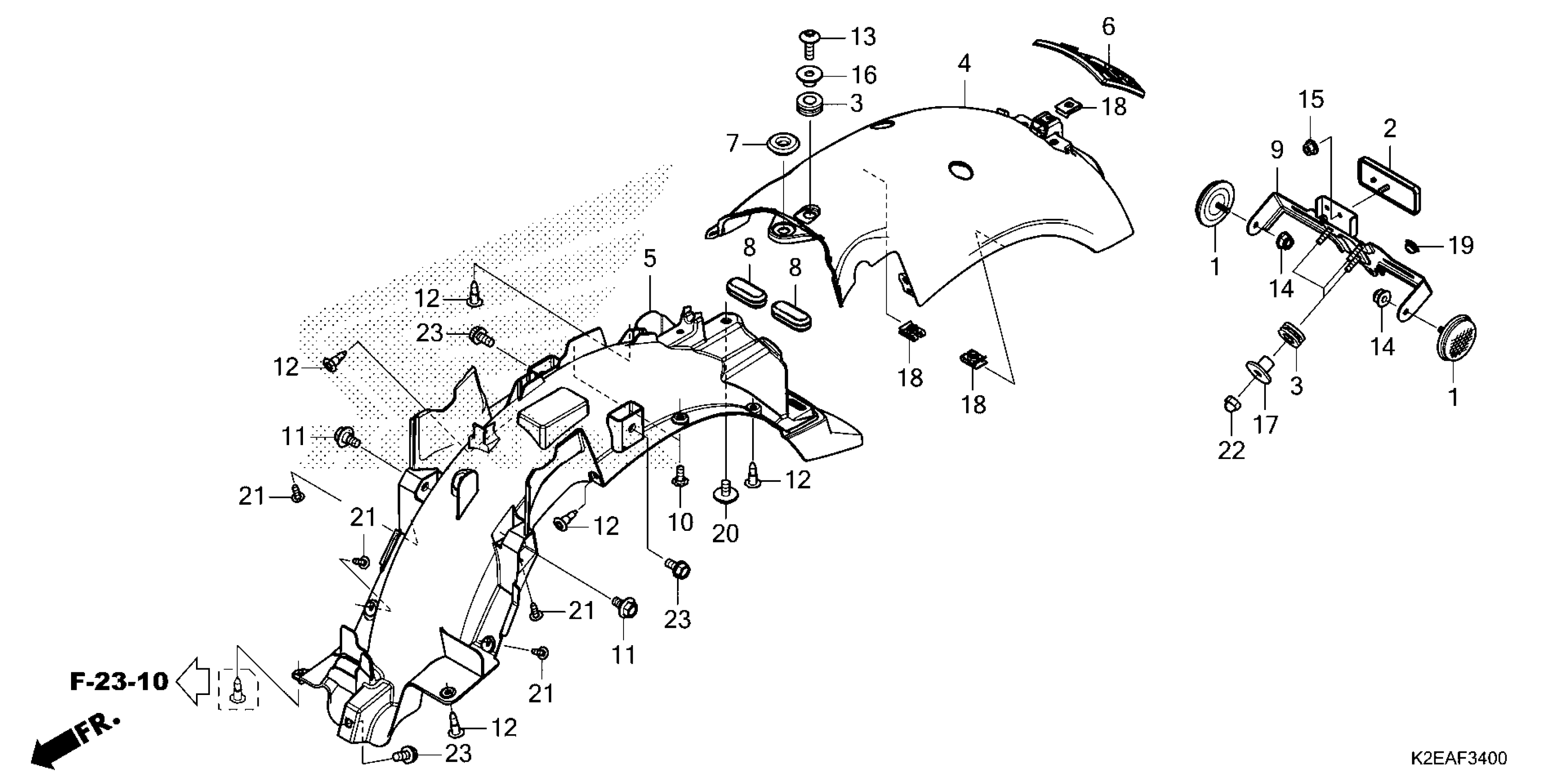

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.78

2

REFLECTOR, REFLEX

33741-KWN-901

$9.16

3

GROMMET, MAIN PIPE COVER

64312-KWW-640

$0.90

4

FENDER, RR. *GY157P*

80100-K2E-T00ZC

$56.06

4

FENDER, RR. *YR344*

80100-K2E-T00ZD

$51.66

5

FENDER (INNER)

80102-K2E-T00

$40.25

6

RUBBER, TAILLIGHT COVER

80150-K2E-T00

Unavailable

7

GROMMET, SIDE COVER

83551-376-000

Unavailable

8

GROMMET A, SIDE COVER

83601-MB0-000

$4.31

9

BRKT, NUMBER PLATE

84701-K2E-T10

$16.54

10

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

11

BOLT, FLANGE (6MM)

90116-KVB-900

$0.91

12

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

13

SCREW, PAN (6X18)

90130-K26-900

$0.85

14

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

15

NUT, U (5MM)

90301-KWN-901

$0.62

16

COLLAR, TAILLIGHT

90501-K0F-T00

$1.22

17

COLLAR, SEAT MOUNTING

90502-K2E-T00

$1.24

18

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

19

PLUG, HOLE

90852-446-630

$2.37

20

BOLT-WASHER (6X12)

93404-06012-00

$1.50

21

SCREW, TAPPING (4X12)

93903-24380

Unavailable

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.07

22

NUT, CAP (6MM)

94021-06020

$2.07

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.50
