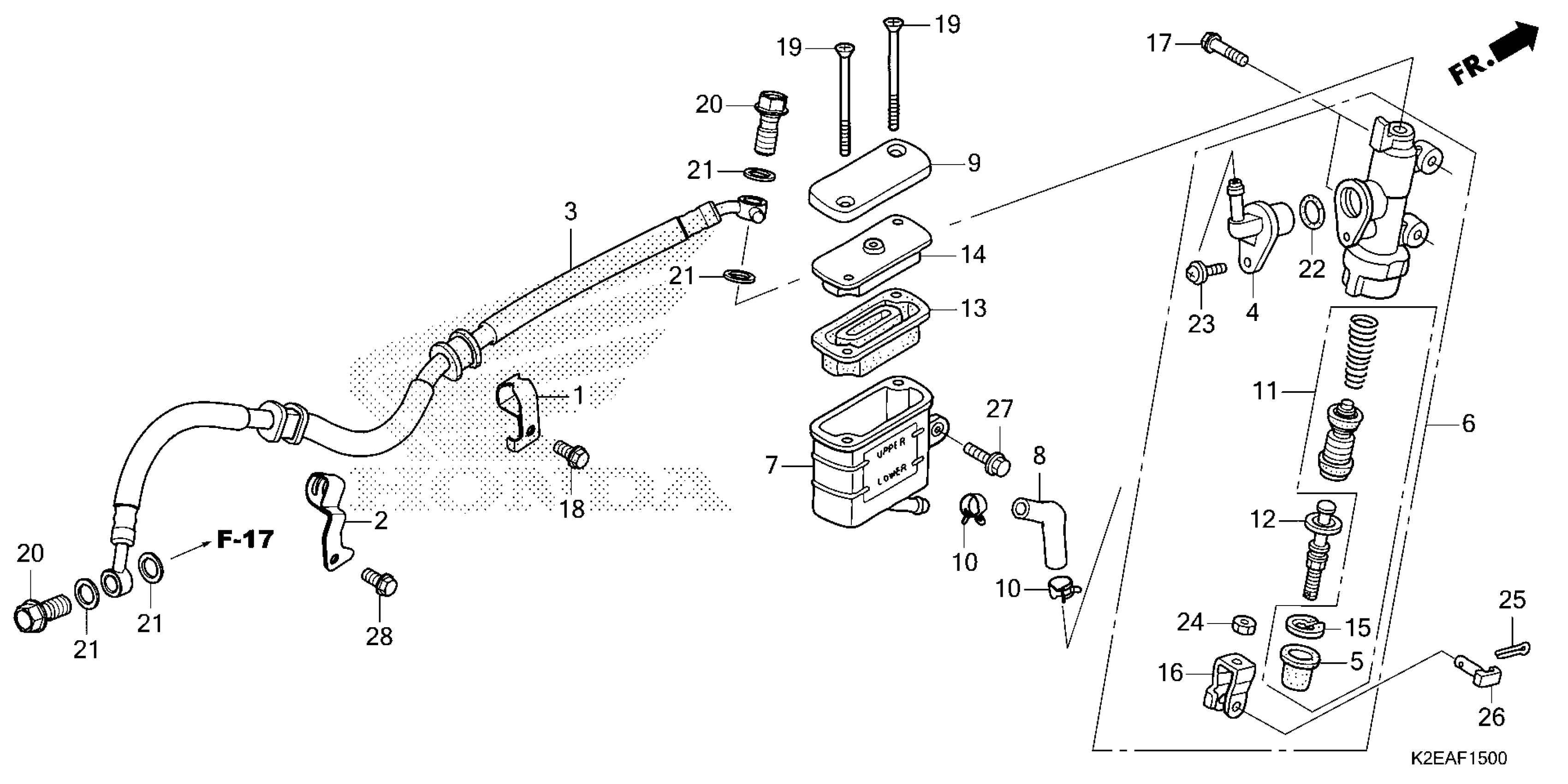

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 REAR BRAKE MASTER CYLINDER Diagram

CLAMP A, RR. BRAKE HOSE

43156-K2E-T00

$4.46

CLAMP B, RR. BRAKE HOSE

43157-K2E-T00

$4.97

HOSE, RR. BRAKE

43310-K2E-T11

$15.01

CONNECTOR, MASTER CYLINDER

43503-MR8-006

$6.69

BOOT

43504-MB2-006

$9.24

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K2E-T01

$101.04

CUP, OIL

43511-K43-D31

$20.71

HOSE, RR. MASTER CYLINDER

43512-K2E-T01

$9.87

CAP, MASTER CYLINDER

43513-KTY-C01

$5.54

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

ROD, PUSH

43530-KV3-831

$21.09

DIAPHRAGM

45520-GW0-911

$6.95

PLATE, DIAPHRAGM

45521-GW0-911

$5.47

CIRCLIP

46182-MEL-D21

$1.79

JOINT, BRAKE ROD

46504-KV6-702

$7.49

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$0.65

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.19

SCREW, FLAT (4X50)

90140-K43-D31

$2.03

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$6.56

O-RING (14.8X2.4)

91212-422-006

$2.37

SCREW-WASHER (4X12)

93893-04012-07

$1.24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

NUT, HEX. (8MM)

94002-08000-0S

$1.21

PIN, COTTER (2.0X12)

94201-20120

$0.96

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66
