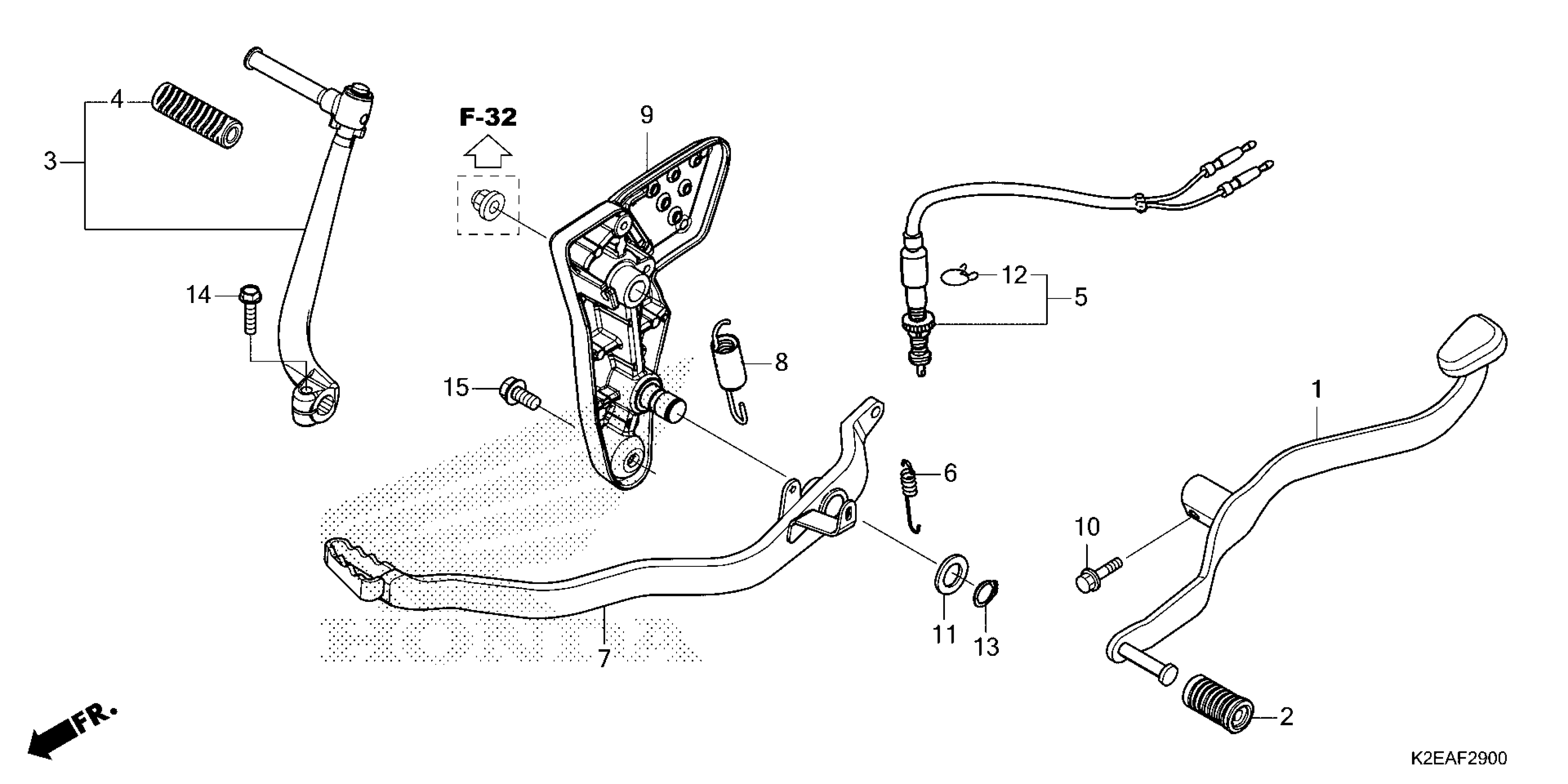

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 PEDAL@KICK STARTER ARM Diagram

PEDAL, GEARSHIFT

24701-K2E-J10

$24.84

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

ARM, KICK STARTER

28300-K2E-J10

$28.33

RUBBER, KICK STARTER

28311-KZV-T00

$2.13

SWITCH ASSY., RR. STOP

35350-KWW-642

$12.84

SPRING, STOP SWITCH

35357-KBA-900

$0.74

PEDAL, BRAKE

46500-K2E-T00

$32.15

SPRING ASSY., BRAKE PEDAL

46513-KPP-900

$1.93

COVER, R. PIVOT

50650-K2E-T00

$72.65

BOLT, FLANGE (6X20)

90010-ML0-720

$2.80

WASHER (15.2X25)

90557-230-000

$2.21

CLIP, SWITCH COVER

90601-KAF-003

$2.47

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

BOLT, FLANGE (6X25)

95701-06025-07

$1.66

BOLT, FLANGE (8X16)

95701-08016-00

$1.66
