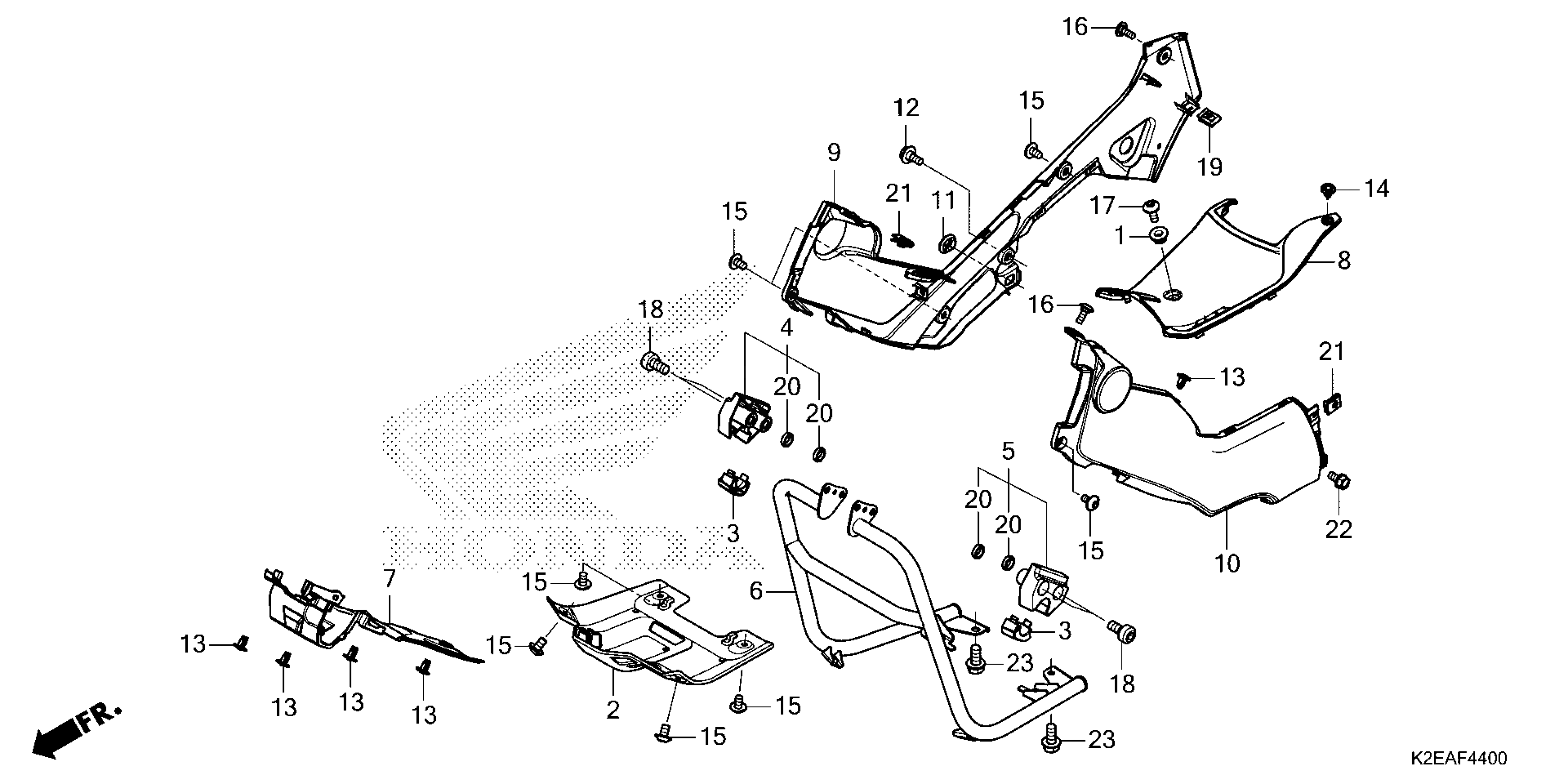

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 MAIN PIPE COVER@UNDER COVER@PIPE Diagram

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

COVER (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

64150-K2E-T00ZA

$75.02

COVER, FR. STAY

64214-K2E-J10

$1.72

COVER, R. FR. STAY

64215-K2E-J10

$3.21

COVER, L. FR. STAY

64216-K2E-J10

$3.21

PIPE, COVER *NHA40M*

64300-K2E-J10ZA

$75.07

COVER, MAIN PIPE

64310-K2E-J10

$5.84

LID *GY157P*

64460-K2E-T01ZC

$41.15

LID, BATTERY *YR344*

64460-K2E-T01ZD

$41.30

CVR, R. (TYPE3)

81130-K2E-J10ZA

$164.93

CVR, R. (TYPE3)

81130-K2E-T00ZA

$113.79

CVR, L. (TYPE4)

81140-K2E-J10ZA

$151.15

CVR, L. (TYPE1)

81140-K2E-J10ZD

$151.15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (6MM)

90111-187-000

$5.59

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

SCREW, PAN (5X14)

90132-MJE-D40

$1.49

SCREW, PAN (6X16)

90132-MJW-J40

$1.49

BOLT, SOCKET (8X16)

90135-KWB-600

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

COLLAR (9MM)

90501-K2E-T00

$2.72

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
