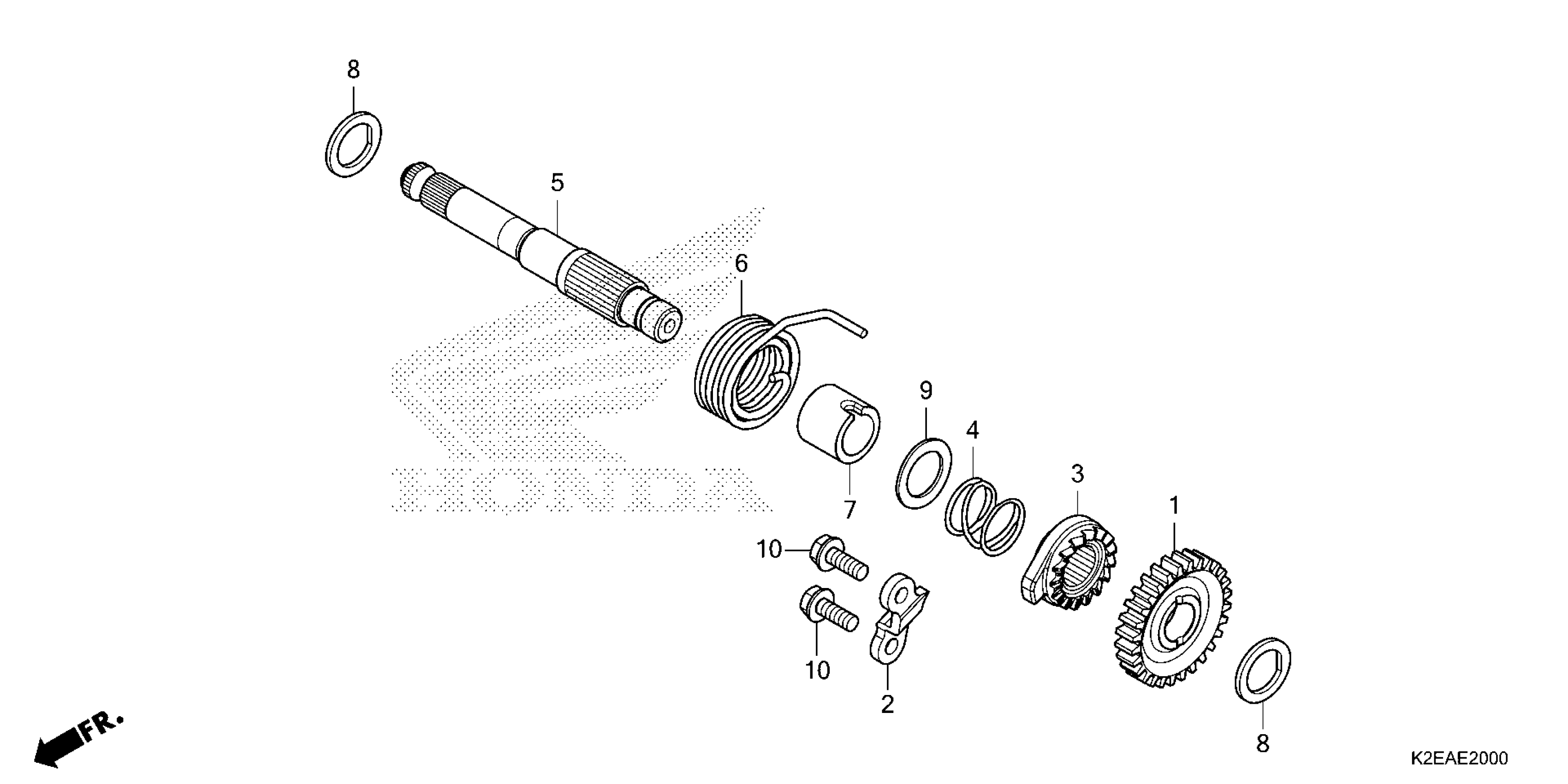

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 KICK STARTER SPINDLE Diagram

PINION (27T)

28211-K2E-T10

$59.43

PLATE, KICK STOPPER

28215-K1M-T00

$2.10

RATCHET, STARTER

28221-K1M-T00

$10.74

SPRING, RATCHET

28223-K1M-T00

$1.29

SPINDLE

28251-K1M-T00

$24.46

SPRING, KICK RETURN

28281-K1M-T00

$2.37

SPRING, KICK RETURN (NA USE ALT:28281-K1M-T00)

28281-K2J-T01

Unavailable

COLLAR, KICK SPRING

28282-K1M-T00

$0.96

WASHER, SPECIAL (14MM)

90451-KGH-900

$0.94

WASHER (16.2X23)

90452-K1M-T00

$0.93

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50
